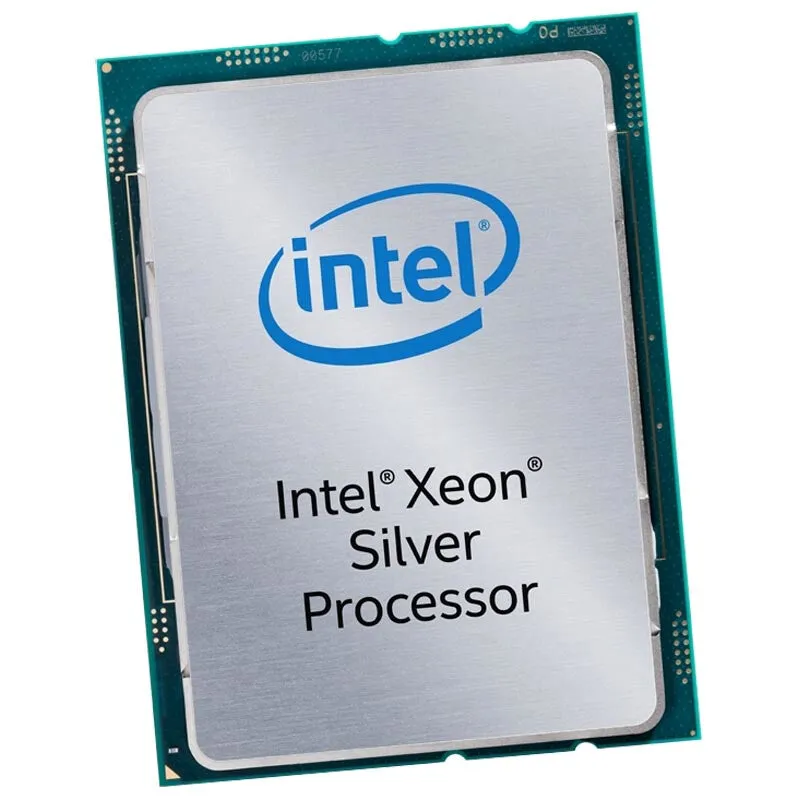

Lenovo Intel Xeon Silver 4110 processor 2.1 GHz 11 MB L3
- Intel Xeon Silver 4110 2.1 GHz
- 11 MB L3 LGA 3647 (Socket P)
- Processor cores: 8 14 nm 64-bit 85 W
- Maximum internal memory supported by processor: 768 GB DDR4-SDRAM
- Cooler included
For the SR590 server models that come standard with one processor, the second processor can be ordered, if required. The second processor must be of the same model as the first processor. The second processor option includes a processor, a heatsink, and an additional system fan.
| Processor | |
|---|---|
| Processor codename | Skylake |
| Stepping | U0 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | L3 |
| Processor cache | 11 MB |
| Processor boost frequency | 3 GHz |
| Processor operating modes | 64-bit |
| Processor threads | 16 |
| Component for | Server/workstation |
| Cooler included | Yes |
| Processor lithography | 14 nm |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 8 |
| Processor base frequency | 2.1 GHz |
| Processor model | 4110 |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor family | Intel Xeon Silver |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Hexa-channel |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 768 GB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Features | |
|---|---|
| Scalability | 2S |
| Embedded options available | Yes |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 48 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Processor special features | |
|---|---|
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® Optane™ Memory Ready | No |
| Intel® vPro™ Platform Eligibility | Yes |
| Conflict-Free processor | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Operational conditions | |
|---|---|
| Tcase | 77 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85423119 |
