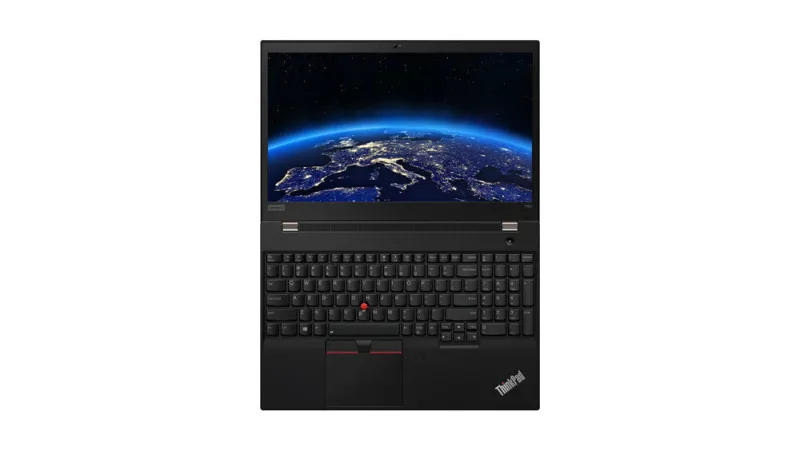

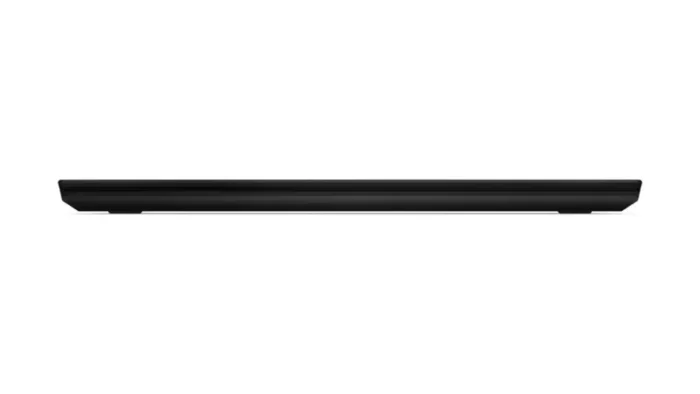

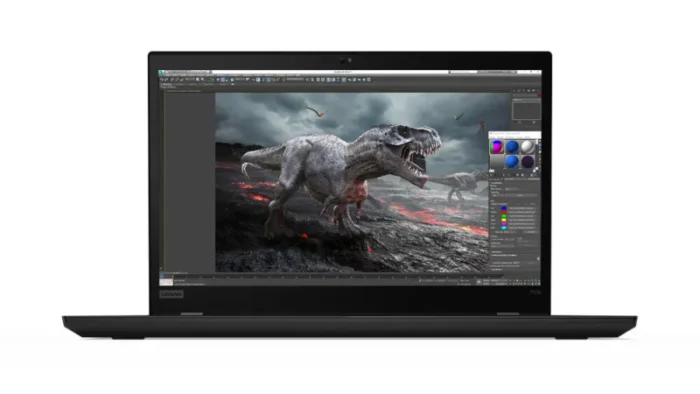

Lenovo ThinkPad P53s Intel® Core™ i7 i7-8665U Mobile workstation 39.6 cm (15.6″) Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA Quadro P520 Wi-Fi 5 (802.11ac) Windows 10 Pro Black
- Powerful Intel® processing and NVIDIA® Quadro® graphics
- 15.6″ mobile workstation
- Weighing just 3.87lb / 1.75kg, provides on the go power
- Epic battery life
- Optional 4K UHD display with Dolby Vision™ HDR
- Great for students, engineers, finance professionals, and designers
Heavyweight performance, lightweight chassis
With the latest 8th Gen Intel® quad-core processor and NVIDIA® Quadro® professional graphics, the ThinkPad P53s delivers the power and performance you need in a lightweight, portable package. Dual solid-state drives (SSD) with up to 2TB storage and up to 48GB of memory ensure no more lag time. Additionally, the ThinkPad P53s includes ISV certification from all the major vendors, like Autodesk®, AVID®, Bentley®, Dassault® Systèmes®, PTC®, and Siemens®.
Your true colors are beautiful
The ThinkPad P53s offers the option of a stunning 15.6″ 4k UHD (3840 x 2160) display, available with Dolby Vision™ high dynamic range (HDR) technology. Enjoy increased brightness, expanded contrast, more refined detail, and colors that are super-vibrant—especially with 100% Adobe color gamut. Whether you’re creating or viewing multimedia, you’ll love the visuals!
Audio so amazing you’ll think it’s live
Speakers on the ThinkPad P53s deliver premium sound with Dolby Audio™, which energizes your entertainment with rich, powerful sound. It dynamically adjusts audio to deliver home theater quality in a virtual surround sound experience for all your entertainment needs. Boosted bass and enhanced volume turn it all up for sound that’s loud and clear enough to share.
Extremely well-connected
With a battery that runs up to 14 hours, the lightweight ThinkPad P53s mobile workstation practically begs to accompany you everywhere.* And for true mobility and connection even when there is no WiFi, add the option of WWAN, which lets you jump online securely wherever there’s cellular service.**
* Based on testing with MobileMark 2014. Battery life varies significantly with settings, usage, and other factors.
**WWAN must be configured at time of purchase, as it cannot be added later.
Tested for battle, built for life
Because you need reliability, the ThinkPad P53s mobile workstation is tested against 12 military-grade requirements and more than 200 quality checks to ensure it runs in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way.
Because getting hacked would be horrible
Built-in security features protect your business-critical info. Default discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security features. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. An optional embedded fingerprint reader uses biometrics to log you in with a simple touch. Or, use the optional IR camera with Windows Hello to log in with your smile.
Design | |
---|---|
Intel® vPro™ Platform Eligibility | Yes |
Form factor | Clamshell |
Product colour | Black |
Product type | Mobile workstation |
Display | |
---|---|
Contrast ratio (typical) | 700:1 |
Dual-screen | No |
Display brightness | 250 cd/m² |
Native aspect ratio | 16:9 |
LED backlight | Yes |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 39.6 cm (15.6″) |
Processor | |
---|---|
Maximum number of PCI Express lanes | 16 |
PCI Express slots version | 3.0 |
PCI Express configurations | 1×4, 2×2, 1×2+2×1, 4×1 |
Tjunction | 100 °C |
Configurable TDP-down | 10 W |
Configurable TDP-down frequency | 0.8 GHz |
Configurable TDP-up | 25 W |
Configurable TDP-up frequency | 2.1 GHz |
Thermal Design Power (TDP) | 15 W |
Processor codename | Whiskey Lake |
Processor operating modes | 64-bit |
Processor lithography | 14 nm |
Processor socket | BGA 1528 |
Processor cache type | Smart Cache |
Processor cache | 8 MB |
System bus rate | 4 GT/s |
Processor frequency | 1.9 GHz |
Processor boost frequency | 4.8 GHz |
Processor threads | 8 |
Processor cores | 4 |
Processor model | i7-8665U |
Processor generation | 8th gen Intel® Core™ i7 |
Processor family | Intel® Core™ i7 |
Processor manufacturer | Intel |
Memory | |
---|---|
Maximum internal memory | 48 GB |
Memory slots | 1x SO-DIMM |
Memory clock speed | 2400 MHz |
Memory form factor | On-board + SO-DIMM |
Internal memory type | DDR4-SDRAM |
Internal memory | 16 GB |
Storage | |
---|---|
Compatible memory cards | MicroSD (TransFlash) |
Card reader integrated | Yes |
Optical drive type | No |
SSD form factor | M.2 |
SSD interface | NVMe, PCI Express |
NVMe | Yes |
SSD capacity | 512 GB |
Number of SSDs installed | 1 |
Total SSDs capacity | 512 GB |
Storage media | SSD |
Total storage capacity | 512 GB |
Graphics | |
---|---|
On-board graphics card ID | 0x3EA0 |
On-board graphics card OpenGL version | 4.5 |
On-board graphics card DirectX version | 12.0 |
On-board graphics card base frequency | 300 MHz |
Maximum on-board graphics card memory | 32 GB |
On-board graphics card dynamic frequency (max) | 1150 MHz |
On-board graphics card model | Intel® UHD Graphics 620 |
On-board graphics card family | Intel® UHD Graphics |
Discrete graphics memory type | GDDR5 |
Discrete graphics card memory | 2 GB |
Discrete graphics card model | NVIDIA Quadro P520 |
Discrete graphics card | Yes |
On-board graphics card | Yes |
Audio | |
---|---|
Built-in microphone | Yes |
Number of microphones | 2 |
Built-in subwoofer | No |
Speaker power | 2 W |
Number of built-in speakers | 2 |
Audio system | Dolby Audio Premium |
Audio chip | Realtek ALC3287 |
Camera | |
---|---|
Auto focus | No |
Privacy type | Privacy shutter |
Privacy camera | Yes |
Infrared (IR) camera | Yes |
Front camera resolution | 1280 x 720 pixels |
Front camera HD type | HD |
Front camera signal format | 720p |
Front camera | Yes |
Network | |
---|---|
Bluetooth version | 5.0 |
Bluetooth | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN | Yes |
WLAN controller model | Intel Dual Band Wireless-AC 9560 |
Antenna type | 2×2 |
Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Wi-Fi | Yes |
Ports & interfaces | |
---|---|
USB Sleep-and-Charge ports | 1 |
USB Sleep-and-Charge | Yes |
USB Type-C DisplayPort Alternate Mode | Yes |
SmartCard slot | Yes |
Docking connector | Yes |
Combo headphone/mic port | Yes |
HDMI version | 1.4b |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Keyboard | |
---|---|
Windows keys | Yes |
Spill-resistant keyboard | Yes |
Numeric keypad | Yes |
Keyboard backlit | Yes |
Pointing device | ThinkPad UltraNav |
Software | |
---|---|
Operating system architecture | 64-bit |
Operating system installed | Windows 10 Pro |
Processor special features | |
---|---|
CPU configuration (max) | 1 |
Enhanced Intel SpeedStep Technology | Yes |
Intel Clear Video Technology | Yes |
Intel TSX-NI | Yes |
Intel 64 | Yes |
Intel Stable Image Platform Program (SIPP) | Yes |
Intel® Smart Response Technology | Yes |
Intel® Identity Protection Technology (Intel® IPT) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Intel® Turbo Boost Technology | 2.0 |
Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
Intel® Quick Sync Video Technology | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel® Secure Key | Yes |
Intel® OS Guard | Yes |
Thermal Monitoring Technologies | Yes |
Processor package size | 46×24 mm |
Intel® My WiFi Technology (Intel® MWT) | Yes |
Intel Flex Memory Access | Yes |
Intel Trusted Execution Technology | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Execute Disable Bit | Yes |
Processor ARK ID | 193563 |
Embedded options available | No |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
Intel Software Guard Extensions (Intel SGX) | Yes |
Idle States | Yes |
Battery | |
---|---|
Fast charging | Yes |
Battery life (max) | 15 h |
Battery capacity | 57 Wh |
Battery technology | Lithium-Ion (Li-Ion) |
Power | |
---|---|
USB Power Delivery (USB PD) | Yes |
USB Type-C charging port | Yes |
AC adapter power | 65 W |
Security | |
---|---|
Password protection type | HDD, Power on, Supervisor |
Password protection | Yes |
Trusted Platform Module (TPM) | Yes |
Fingerprint reader | Yes |
Cable lock slot | Yes |
Certificates | |
---|---|
Compliance certificates | RoHS |
Sustainability | |
---|---|
Sustainability certificates | EPEAT Silver, ENERGY STAR |
Weight & dimensions | |
---|---|
Height | 19.1 mm |
Depth | 248 mm |
Width | 365.8 mm |
Weight | 1.75 kg |
General | |
---|---|
Product family | ThinkPad |
Product series | P |
Packaging content | |
---|---|
Manual | Yes |
AC adapter included | Yes |
Other features | |
---|---|
Maximum internal memory (64-bit) | 48 GB |
LightScribe | No |
