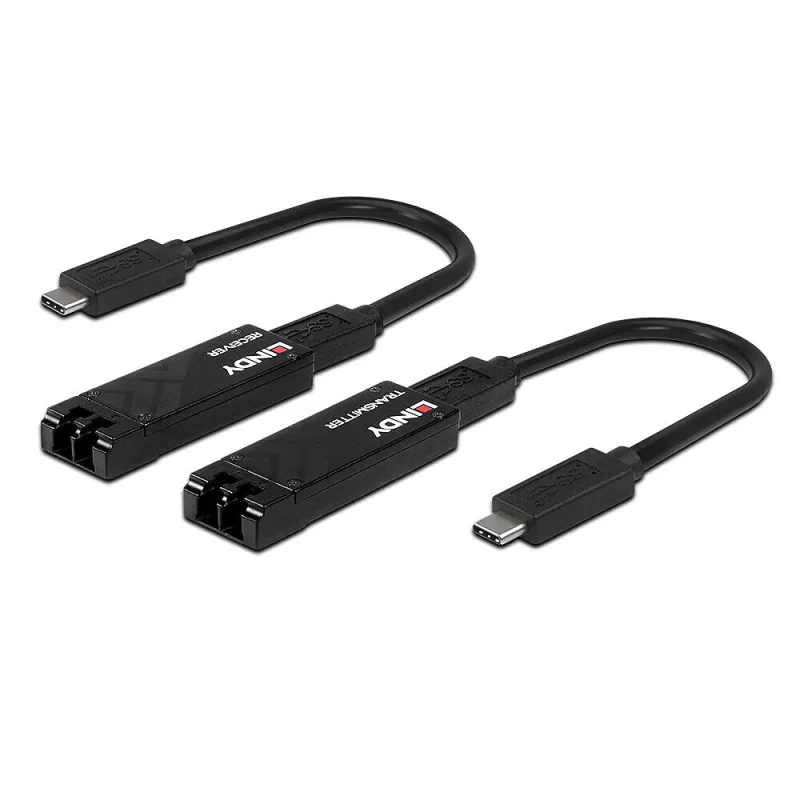

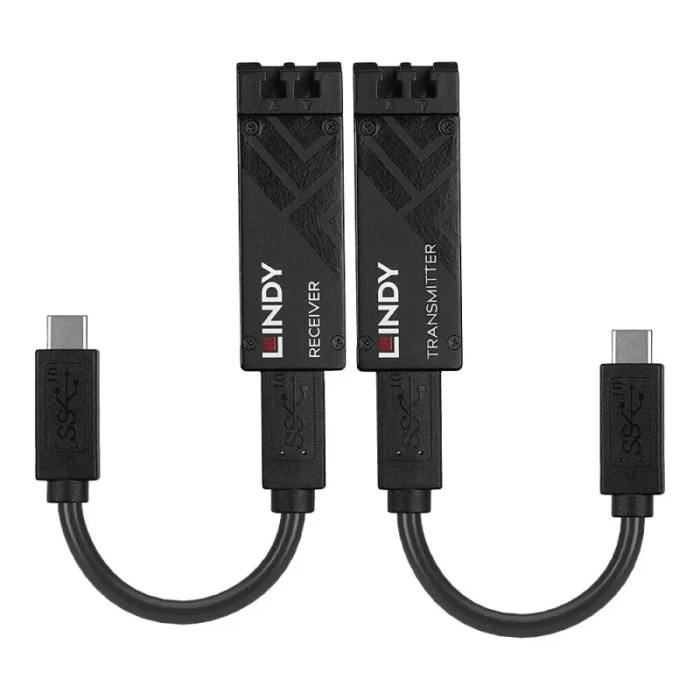

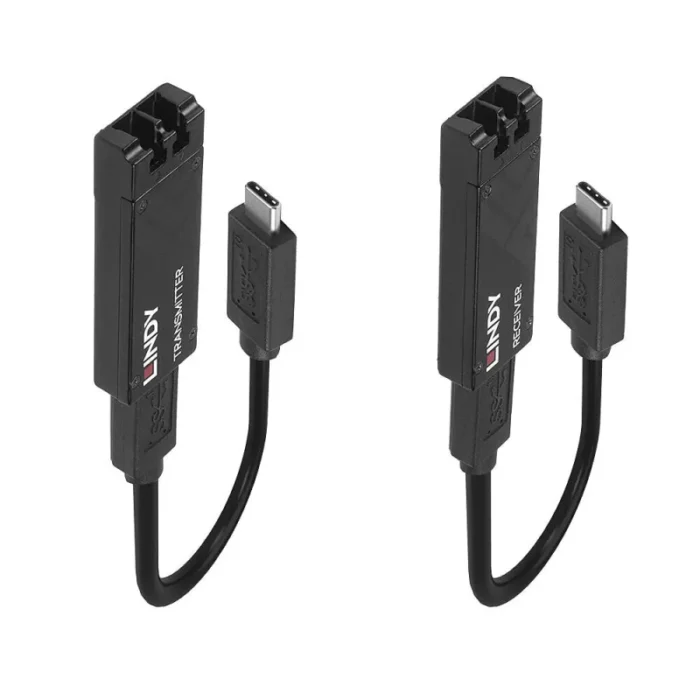

Lindy 100m Fibre Optic USB 3.2 Type C Extender
- Extends USB 3.2 Gen 2 connections up to 100m
- Supports data transfer rates up to 10Gbps
- Uses standard andldquo;off the shelfandrdquo; LC duplex fibre cabling
- Resistant to RF and EM Interference for use in highly sensitive areas
- 2 year warranty
Fibre Optic USB extenders allow USB signals to be extended far beyond the limits of traditional copper cable solutions. The Lindy 100m Fibre Optic USB 3.2 Type C Extender supports SuperSpeed transfer rates of up to 10Gbps. This Extender is a complete and compact two-part hardware solution comprising of a transmitter that connects directly to the user’s computer and receiver that connects to the USB peripheral, using andldquo;off the shelfandrdquo; LC duplex fibre cabling.
The extender is ideal for long distance use with remote desktop links, industrial control systems, surveillance control rooms and external storage applications. This device is fully compatible with, and can be used to extend signals from, 4K USB webcams and video conferencing systems. Utilising fibre optic transmission, this extender provides high resistance to EMI and RFI, perfect for use in andldquo;noisyandrdquo; areas such as hospitals, large retail installations or industrial buildings. The Fibre Optic USB 3.2 Type C Extender is supplied with a USB Type A to Micro-B cable which can be attached to a second USB port or to a USB Power supply (not included) should additional power be required.
Please note that DisplayPort Alternate Mode is not supported.
Please note: This Extender is not backwards compatible with USB 2.0.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Performance | |
|---|---|
| Cable types supported | Fiber |
| Data transfer rate | 10000 Mbit/s |
| Maximum transfer distance | 100 m |
| Type | Network transmitter & receiver |
| Ports & interfaces | |
|---|---|
| USB Type-C ports quantity (receiver) | 1 |
| USB Type-C ports quantity (transmitter) | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Design | |
|---|---|
| Housing material | Metal |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 80% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Receiver weight | 39 g |
| Receiver height | 9 mm |
| Receiver depth | 2 cm |
| Receiver width | 5.8 cm |
| Transmitter weight | 39 g |
| Transmitter height | 9 mm |
| Transmitter depth | 2 cm |
| Transmitter width | 5.8 cm |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
- CE Declaration of Conformity
