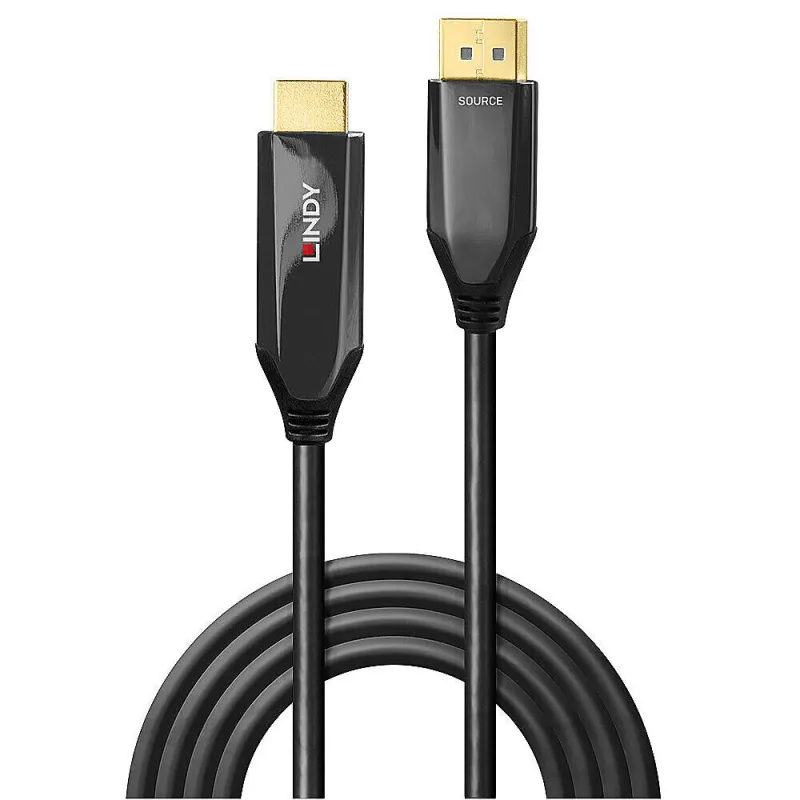

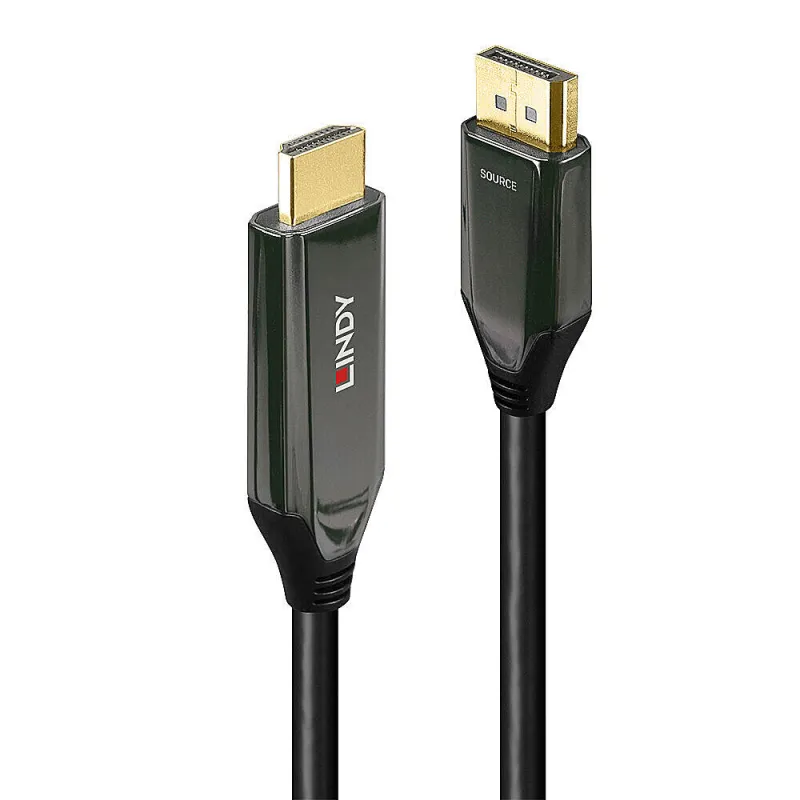

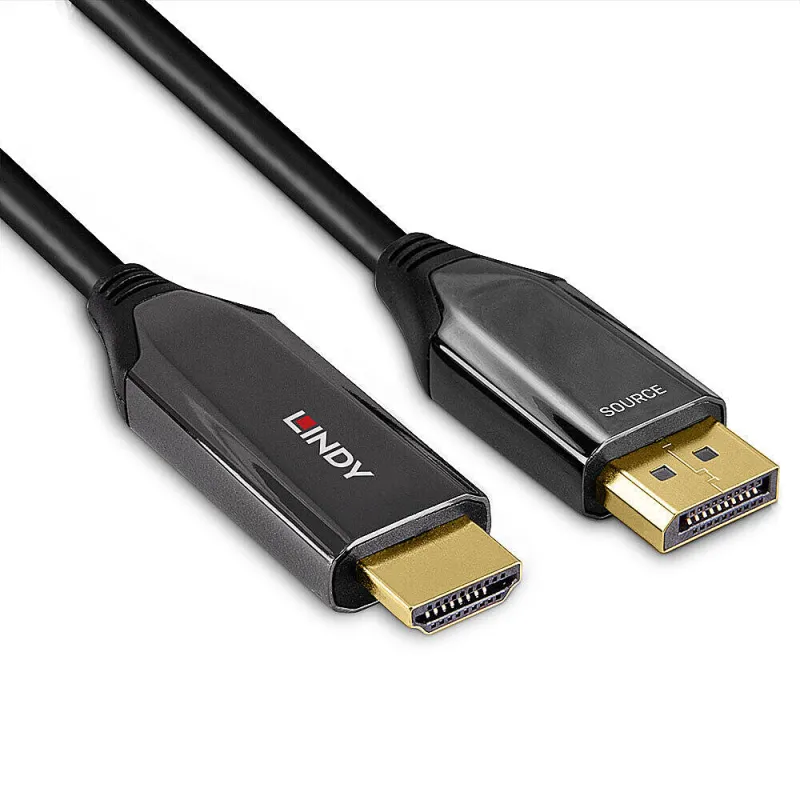

Lindy 1m Active DisplayPort 1.4 to HDMI 8K60 Cable
- Connect a DisplayPort equipped device to a 8K HDMI display or projector
- Supports high quality resolutions up to 8K@60Hz or 4K@120Hz
- High Dynamic Range support provides deeper blacks, brighter whites and a wider colour gamut
- Active chipset for enhanced compatibility with various graphic cards
- 2 year warranty
Lindy’s Active DisplayPort to HDMI Cable range combine superior performance with stylish design to provide a high quality conversion of DisplayPort 4K@60Hz signals to output to a HDMI display or projector. This range of active cables come with an in-built chipset to not only provide a reliable connection, but also enhance compatibility with both dual mode and non-dual mode graphic cards and source devices, perfect for use with DP graphics cards, laptops and PC’s, while avoiding the need for additional adapters.
With support for resolutions up to7680x4320@60Hz or4096x2160@120Hzand with additional support for High Dynamic Range, 8K content can be viewed with crystal clear clarity, enhanced contrast and more lifelike colour. These cables are great for creating eye-catching retail displays, innovative working environments or immersive video playback in sports bars and home cinema installations, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video.
Support for AMD Eyefinity technology also brings the user a cost effective way of creating a non-standard aspect ratio or ultra-high resolution display made up from up to 3 or more monitors. This feature also allows the user to run multiple applications simultaneously on separate screens, improving productivity in the workplace or creating a widescreen gaming experience.
Please note: Audio output over HDMI is only supported when the graphics card of the notebook or desktop computer supports audio output over DisplayPort. In such instances a separate audio connection has to be set up.
Please note: Some of Nvidia’s latest drivers do not work correctly at 8k@60Hz 4:4:4 when converting from DP/mDP to HDMI and will only work at 8k@60Hz 4:2:2
| Features | |
|---|---|
| Colour depth | 10 bit |
| AWG wire size | 32 |
| Cable type | Round cable |
| Chipset | VM7100 |
| Bend radius (min) | 3.3 cm |
| Maximum refresh rate | 60 Hz |
| Data transfer rate | 48 Gbit/s |
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | HDMI |
| Connector 1 | DisplayPort |
| Cable length | 1 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 – 80 °C |
| Operating temperature (T-T) | -20 – 40 °C |
| Certificates | |
|---|---|
| Certification | CE, UKCA, FCC, RoHS, REACH, UL & California Proposition 65 |
| UN number | 6 |
| Weight & dimensions | |
|---|---|
| Connector 2 dimensions (WxDxH) | 50 x 20 x 8 mm |
| Connector 1 dimensions (WxDxH) | 50 x 20 x 8 mm |
| Cable diameter | 5.5 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
