Lindy 50m 4 Port USB 2.0 Cat.6 Extender
- Extend 4 USB 2.0 ports up to 50m using low cost Cat. 5e/6 network cable (not included)
- Power over Cable requires a single power supply to be connected to the transmitter only
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- Plug and Play installation
- 2 year warranty

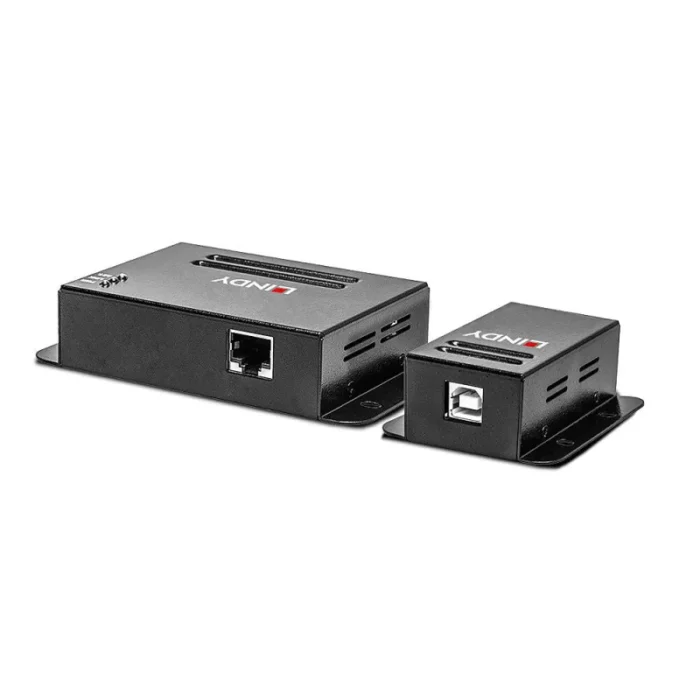

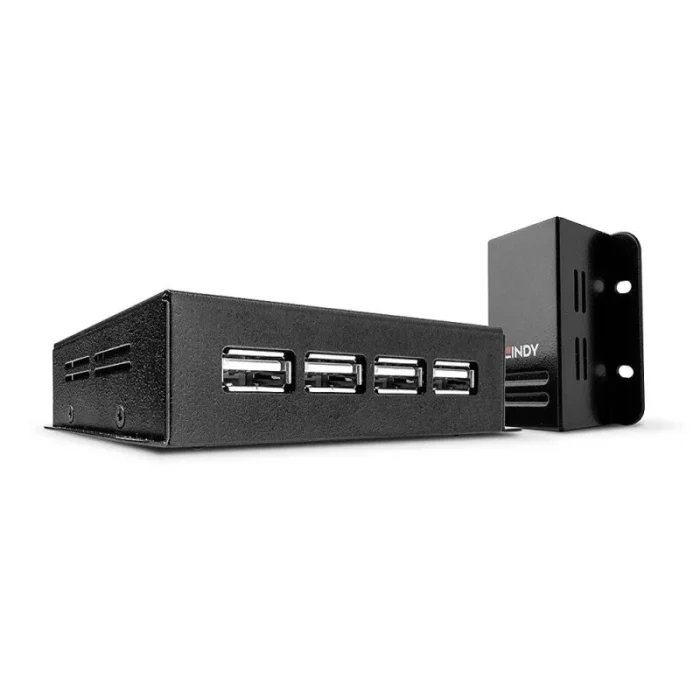

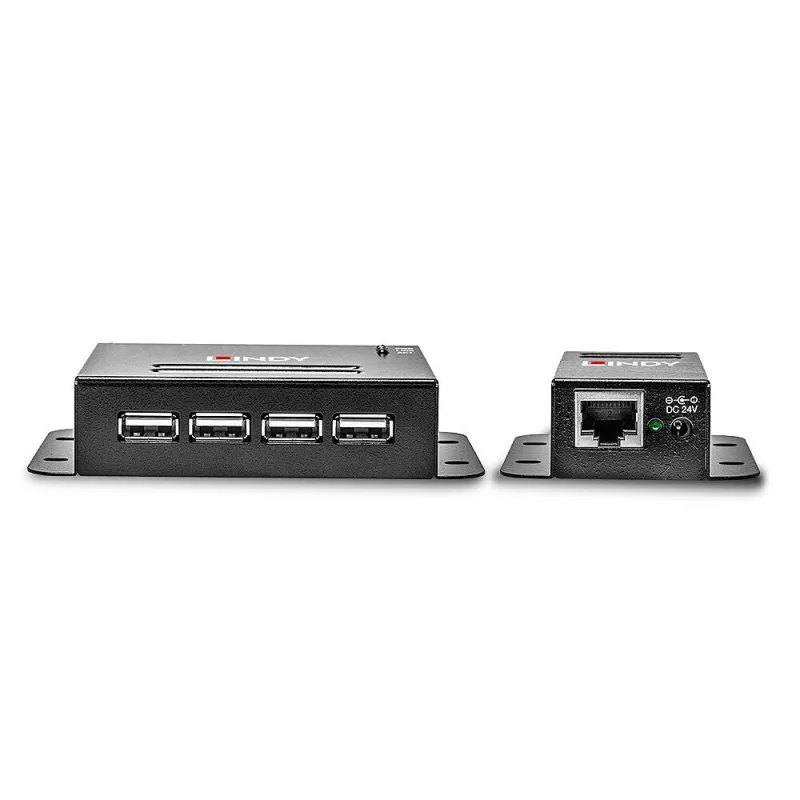

This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between four USB peripheral devices and the host computer by up to 50m.
A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
| Performance | |
|---|---|
| Plug and Play | Yes |
| Chipset (transmitter) | NS1021 |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 50 m |
| Type | Network transmitter & receiver |
| Ports & interfaces | |
|---|---|
| Contact material | Phosphor bronze |
| Connector contacts plating | Gold |
| Connector material | Gold |
| DC-in jack | Yes |
| USB 2.0 ports quantity | 5 |
| RJ-45 ports quantity (receiver) | 1 |
| RJ-45 ports quantity (transmitter) | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Certification | CE, UKCA, FCC, RoHS, REACH |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black |
| Power | |
|---|---|
| Included power plug types | AU, EU, UK, US |
| Power note | 3.5/1.35mm DC |
| Power over Ethernet (PoE) | Yes |
| Output current | 0.5 A |
| Output voltage | 24 V |
| External power adapter | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 – 90% |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -20 – 80 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Weight & dimensions | |
|---|---|
| Receiver height | 2.3 cm |
| Receiver depth | 6.4 cm |
| Receiver width | 11 cm |
| Transmitter height | 2.3 cm |
| Transmitter depth | 6.7 cm |
| Transmitter width | 6 cm |
| Weight | 415 g |
| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | USB Type-A to USB Type-B |
| Packaging data | |
|---|---|
| Package volume | 600 cm³ |
| Package height | 50 mm |
| Package depth | 155 mm |
| Package width | 215 mm |
| Package type | Box |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
