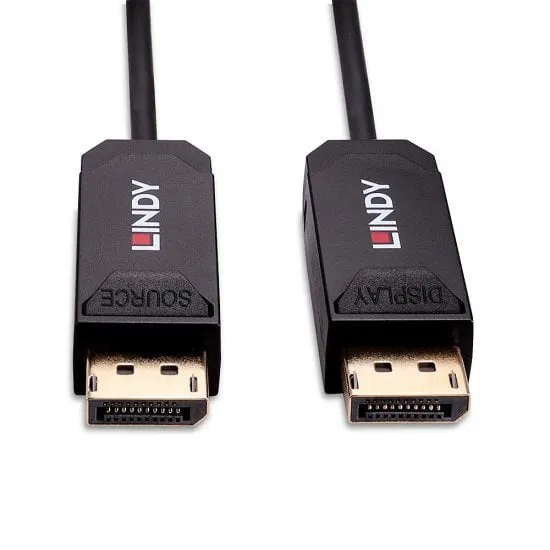

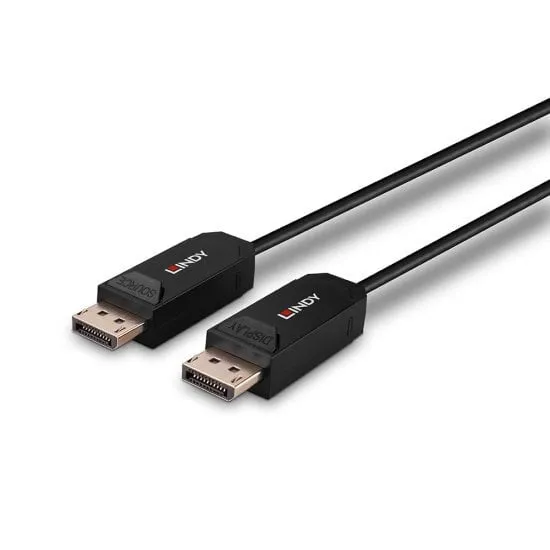

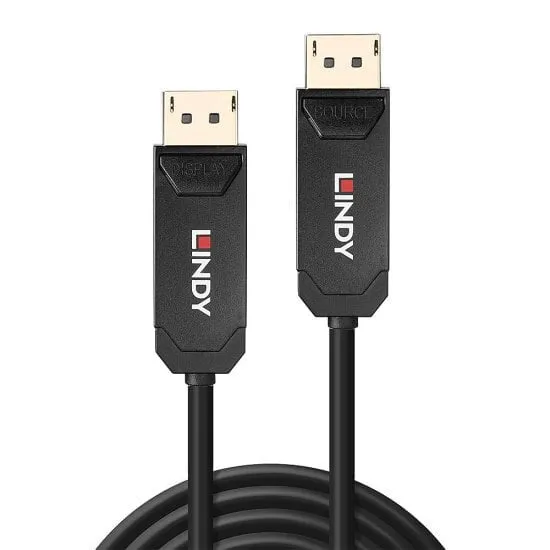

Lindy 50m Fibre Optic Hybrid DP 2.0 UBHR10 Cable
- Combines copper and fibre optic cable for a hybrid, long distance DisplayPort connectivity solution
- Supports resolutions up to 4K@144Hz, 8K@60Hz
- DP2.0 standard with UHBR10 support, 40Gbps bandwidth (4 lanes, 10Gbps per channel)
- Flexible and robust cable structure for any kind of installations
- 2-Year Warranty
Lindy’s range of Fibre Optic Hybrid cables are a professional solution for extending DP signals over longer distances.Combining the flexibility and high EMI and RFI resistance of fibre optic cable with standard copper cabling, these hybrid cables are ideal for use in critical AV setups, commercial displays or high-performance residential installations.
The internal technology provides uncompressed amplification of the DP signal, allowing long distance extension of DP 8K content that is simply not possible with passive cables.
With 40Gbps bandwidth (UHBR10), these cables support DisplayPort 2.0 resolutions up to 3840×2160@144Hz, and 7680×4320 / 10240×4320@60Hz. Content can be viewed with incredible detail and clarity at higher refresh rates and supporting static and dynamic HDR for optimum viewing of movies, graphics or imagery.
| Features | |
|---|---|
| Cable type | Round cable |
| Colour sampling | 4:2:2, 4:4:4, 4:2:0 |
| Connector material | Gold |
| Data transfer rate | 24 Gbit/s |
| Bandwidth | 40 MB/s |
| Product colour | Black |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Maximum resolution | 7680 x 4320 pixels |
| DisplayPort version | 2.0 |
| Connector contacts plating | Gold |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | DisplayPort |
| Cable length | 50 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | -10 – 60 °C |
| Certificates | |
|---|---|
| Compliance certificates | CE, REACH, RoHS, UKCA |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Bend radius (min) | 5 cm |
