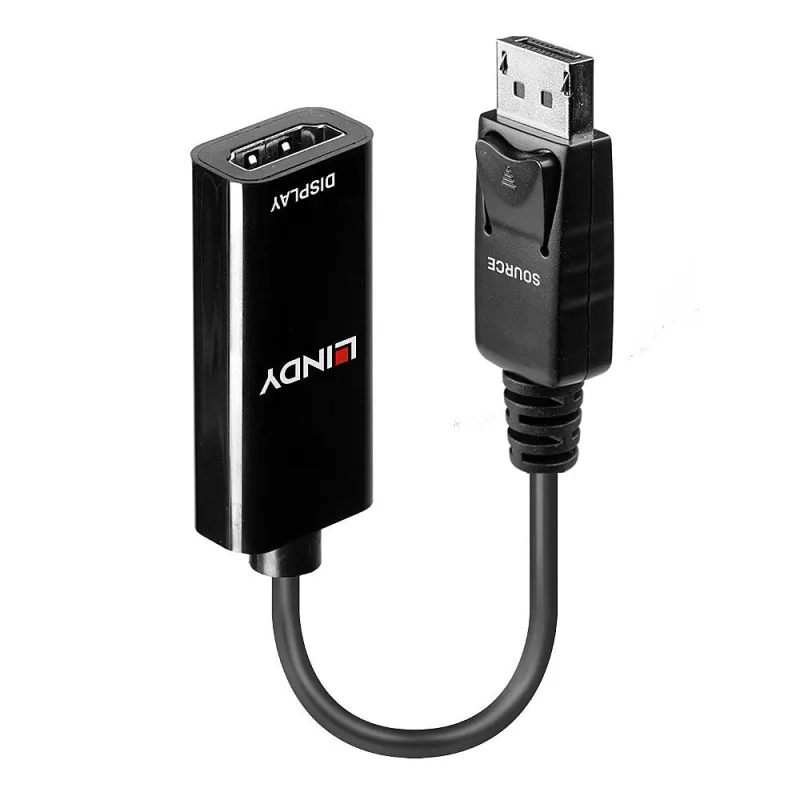

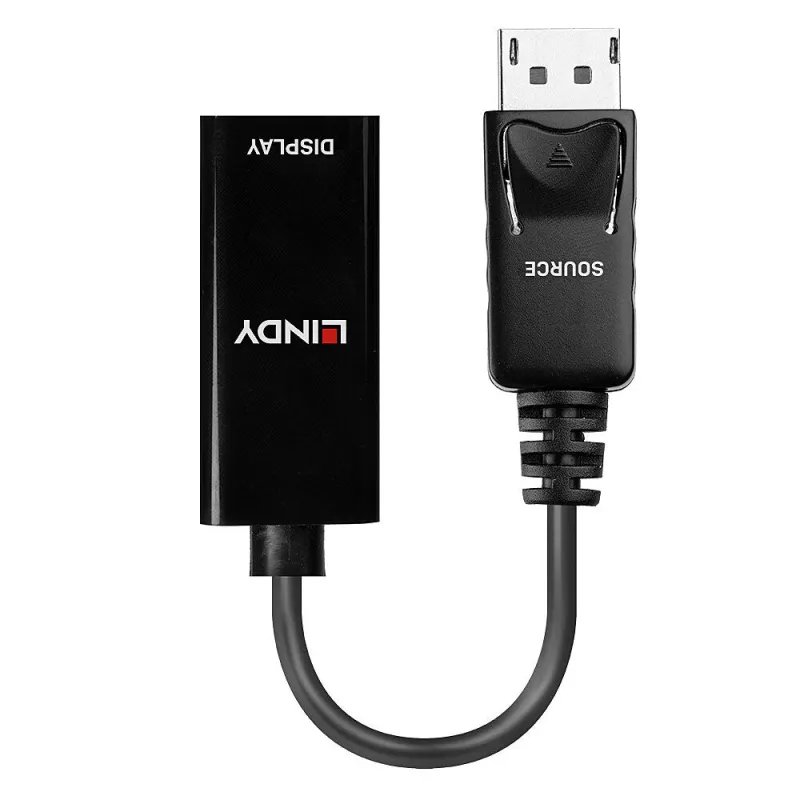

Lindy DisplayPort 1.2 to HDMI 1.4 Converter
- Converts a DisplayPort signal into HDMIandnbsp;
- Supports resolutions up to 4K 3840×2160@30Hz
- Audio pass-through if supported by the video source
- Quick and simple Plug and Play installation
- 2 year warranty
The Lindy DisplayPort 1.2 to HDMI Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to an HDMI monitor or TV. It supports resolutions up to 4K 3840×2160@30Hz and allows audio pass-through if supported by the video source.
The converter can also be used to add another display to extend the available desktop workspace and increase productivity. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient Plug and Play installation.
This Converter requires the source or graphics card to support DP++ to provide dual-mode signals.
| Features | |
|---|---|
| Converter type | Passive video converter |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Jacket material | Polyvinyl chloride (PVC) |
| Chipset | PS8402A |
| Product colour | Black |
| Bend radius (min) | 6 cm |
| Data transfer rate | 10.2 Gbit/s |
| Supported graphics resolutions | 3840 x 2160 |
| Maximum resolution | 3840 x 2160 pixels |
| DisplayPort version | 1.2 |
| HDCP version | 1.4 |
| HDCP | Yes |
| HDMI version | 1.4 |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 | HDMI |
| Connector 1 | DisplayPort |
| Cable length | 0.15 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 85% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 80 °C |
| Certificates | |
|---|---|
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Weight & dimensions | |
|---|---|
| Weight | 30 g |
| Connector 2 dimensions (WxDxH) | 20.1 x 44.5 x 9 mm |
| Connector 1 dimensions (WxDxH) | 20.8 x 51 x 11.5 mm |
| Cable diameter | 5 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Package weight | 38 g |
| Package height | 160 mm |
| Package depth | 20 mm |
| Package width | 160 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
- leaflet
- CE Declaration of Conformity
