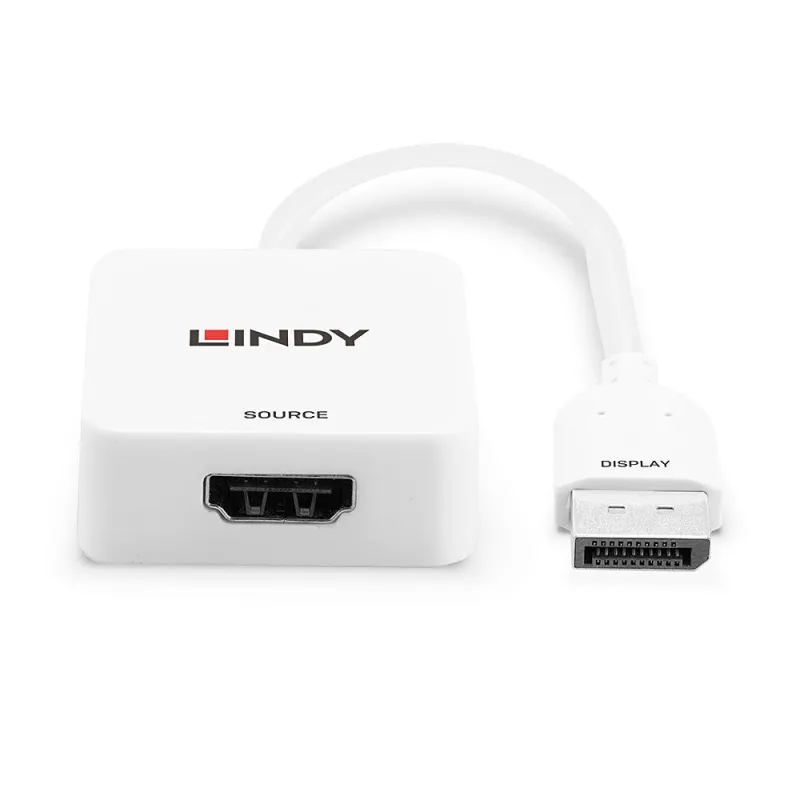

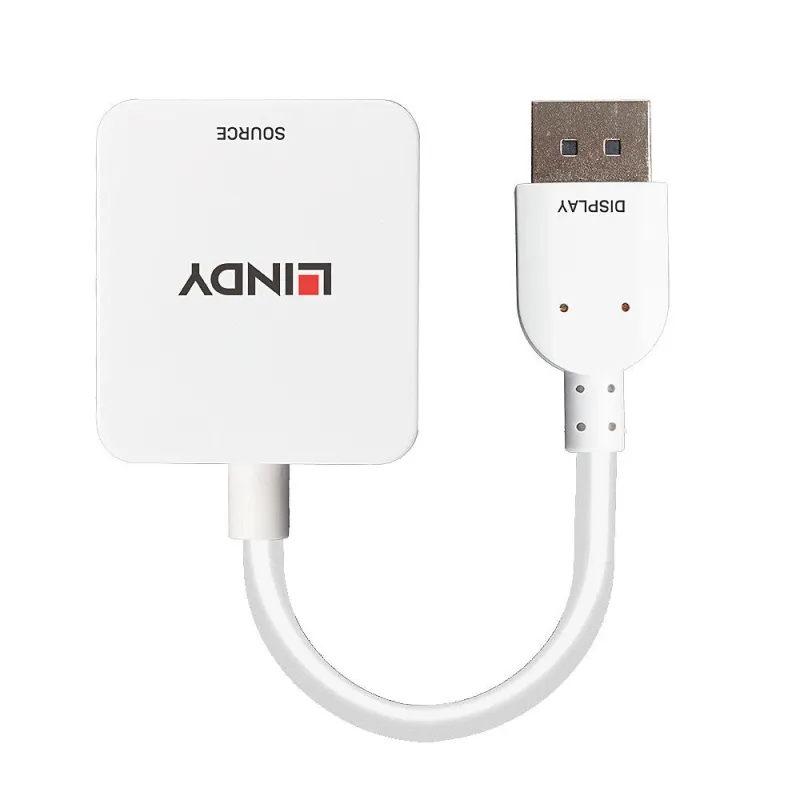

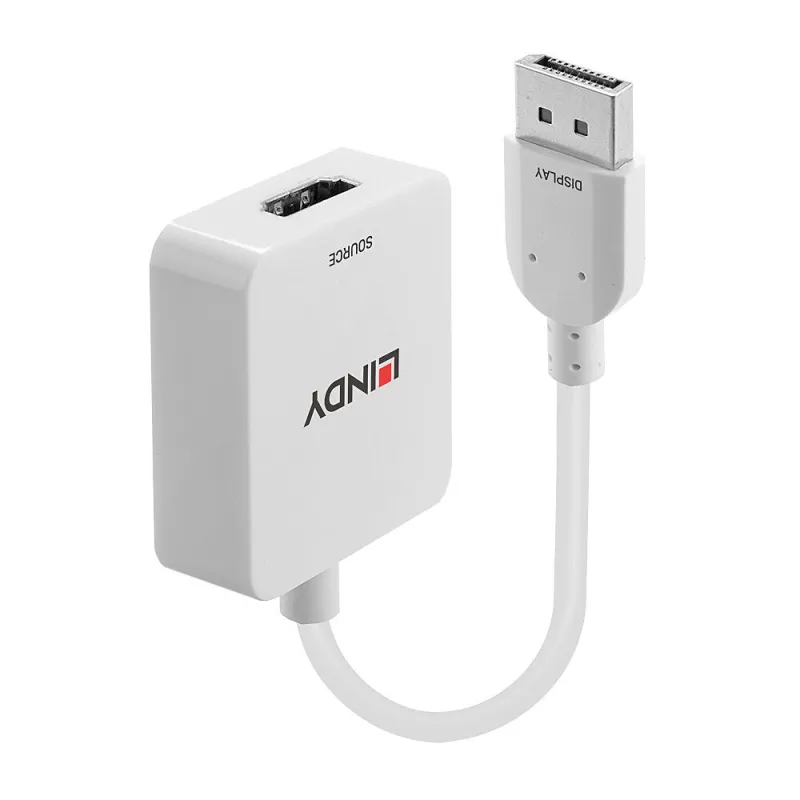

Lindy HDMI 18G to DisplayPort 1.2 Converter
- Converts an HDMI input into a DisplayPort signal
- Supports resolutions up to 3840×2160@60Hz
- Supports 7.1 channel surround audio
- Quick and simple Plug and Play installation
- 2 year warranty
A converter allows devices which use different interfaces e.g. HDMI and DisplayPort to connect to one another by converting one signal to the other.
The Lindy HDMI 18G to DisplayPort 1.2 Converter allows the connection of HDMI source devices, such as a PC, Blu-ray player or media player to DisplayPort monitors digital signage and LFDs (Large Format Displays). Supporting resolutions up to 3840×2160@60Hz 4:4:4 8bit or 2560×1440@120Hz, this converter ensures superior clarity content within innovative workspaces, engaging collaboration environments and educational setups. Immersive multi-channel audio is supported up to 7.1CH to compliment the video on screen.
The converter can also be used to add another display to extend the available desktop workspace and increase productivity. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient Plug and Play installation.
| Features | |
|---|---|
| Supported audio channels | 7.1 |
| Jacket material | Acrylonitrile butadiene styrene (ABS) |
| Chipset | LT6711A |
| Product colour | White |
| Bandwidth | 21600 MB/s |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| High Dynamic Range (HDR) supported | Yes |
| DisplayPort version | 1.2 |
| HDCP version | 1.4 |
| HDCP | Yes |
| HDMI version | 2.0 |
| Power source | DC |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Female |
| Connector 2 | DisplayPort |
| Connector 1 | HDMI Type A (Standard) |
| Cable length | 0.095 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 95% |
| Storage temperature (T-T) | -20 – 85 °C |
| Operating temperature (T-T) | -20 – 85 °C |
| Certificates | |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Weight & dimensions | |
|---|---|
| Height | 3.5 mm |
| Depth | 16.5 mm |
| Width | 20.5 mm |
| Weight | 25 g |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Package weight | 30 g |
| Package height | 194 mm |
| Package depth | 20 mm |
| Package width | 174 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
