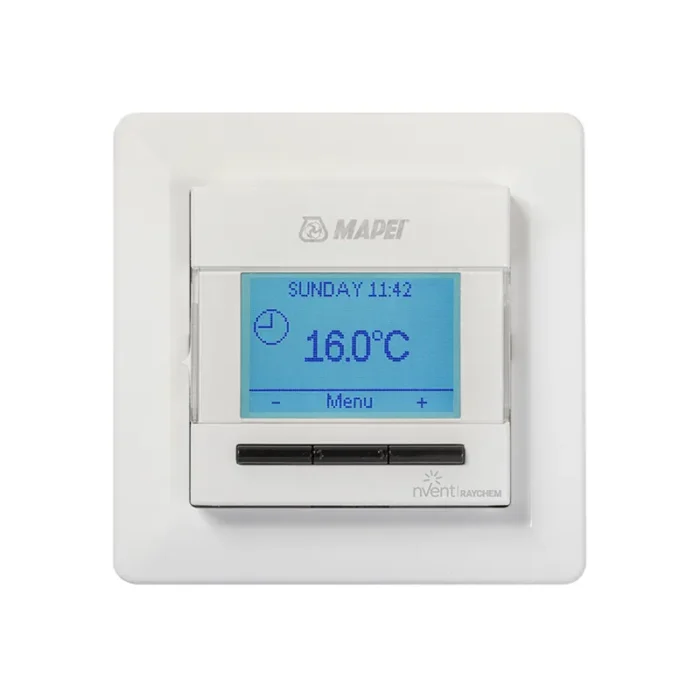

Mapei Mapeheat Thermo Basic Thermostat
Mapeheat Thermo Basic is a digital timer thermostat for the Mapeheat floor heating systems, equipped with a large digital display and intuitive software for optimal ease of use.
FEATURES AND BENEFITS
- Intuitive wizard-based first-time set-up of the thermostat
- 2 pole main power switch for maintenance purposes
- Clear big Dot Matrix LCD display (100 x 64 pixels) with blue backlight
- Energy savings thanks to the adaptive function. The thermostat calculates when it needs to start heating in order to reach the temperature at the desired time of the weekly schedule.
- Child lock to prevent accidental changes on the thermostat
- Different display settings possible:
– See the set temperature or the actual temperature on the screen
– Show/hide the time and date
– Reverse background
– Activate/deactivate the screen saver
- Energy monitoring to visualize energy consumption over different periods of time
- Temperature calibration is possible to adjust to the specific floor construction of the room
- Temperature scale to limit the thermostat to Min-Max temperatures to protect sensitive floors
- Supported Software languages: English, German, Dutch, French, Russian, Lithuanian, Polish, Czech, Swedish, Finish,Norwegian
- Manufacturers limited 2-year warranty
TECHNICAL DATA
|
TECHNICAL DATA (typical values) |
|
|
Supply voltage: |
230 VAC +/- 10%, 50Hz |
|
Relay output: |
Heating cable 230 V, max 13 A |
|
Temperature range floor sensor: |
5°C to +40°C |
|
Temperature range room sensor: |
5°C to +40°C |
|
Limitation of range: |
Low +5°C/High +40°C |
|
Ambient temperature-operation: |
0°C to +25°C |
|
Ambient temperature-transport: |
-20°C to +70°C |
|
Accuracy floor sensor: |
0.2°C in the range 0°C to +40°C |
|
Accuracy room sensor: |
0.2°C in the range 0°C to +40°C |
|
Temperature control method: |
PID |
|
Control modes:
|
Floor sensor Room sensor Room sensor with floor limiter No sensor |
|
Clock function:
|
1 to 6 events/day 7 days/week 1 temperature per event |
|
Back-up for set values: |
Non-volatile memory |
|
Back-up for time and date:
|
Minimum 5 years of storage Minimum 10 years if powered 50% of the time |
|
Protection class: |
IP21 |
|
Terminals: |
2,5 mm² Screw cage clamp |
|
Floor sensor: |
12k at +25°C +/- 0.75°C (no:38165) |
|
Max length of floor sensor: |
100 m, 2 x 1,5 mm² (230 VAC cable) |
|
Diameter sensor cable: |
4.5 mm max. (preferred < 3.5 mm) |
|
Diameter sensor tip: |
5.0 mm , +/-0.1 mm |
|
Dimensions with frame: |
84 X 84 X 40 mm |
|
Colour Square front: |
9003 |
|
Colour switch gear frame: |
9003 |
|
Approvals: |
CE & UKCA EN 60730-1:2011 & EN 60730-2-9:2010 |
