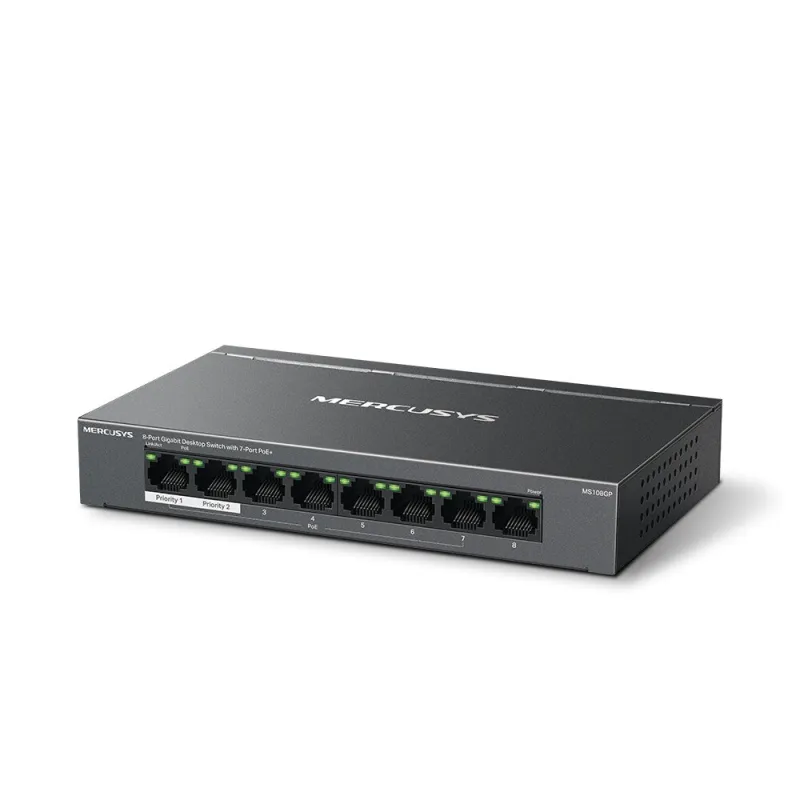

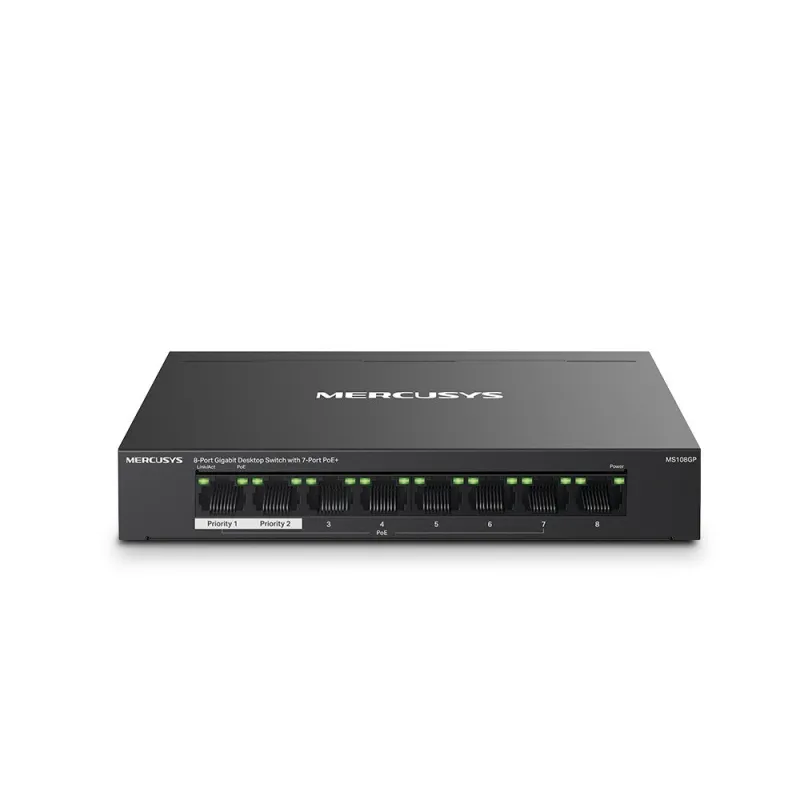

Mercusys 8-Port Gigabit Desktop Switch with 7-Port PoE+
- Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports
- Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

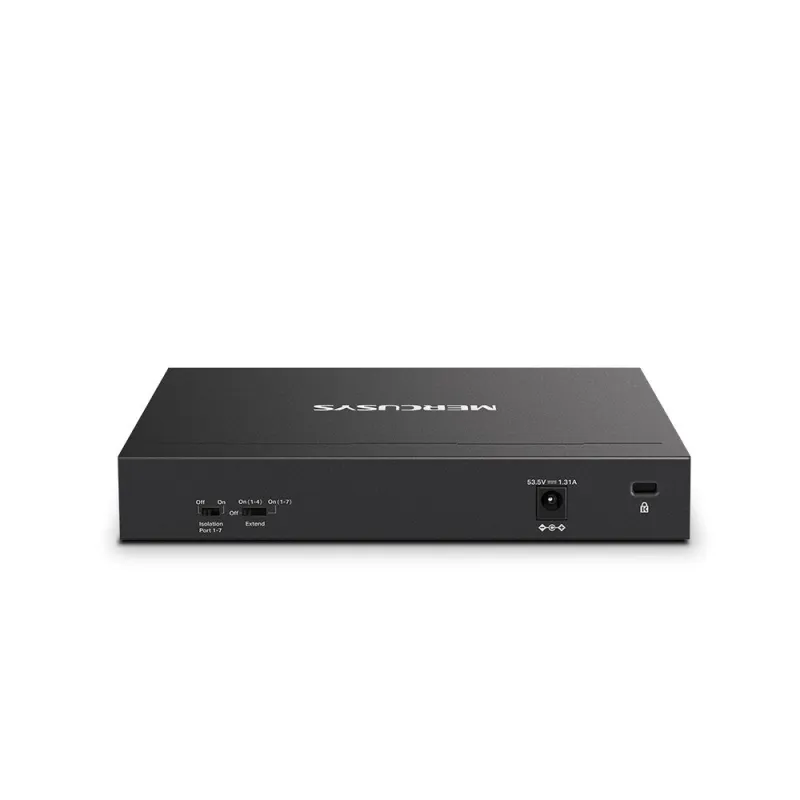

- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
7 PoE+ Ports (65 W Budget) for Network Deployment
All eight ports of the MS108GP are gigabit ports, with seven PoE+ ports (1-7). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS108GP has 7 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-7 to prevent snooping/tampering and isolate broadcast storms for greater protection.
Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
Plug and Play
MS108GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS108GP’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
| Management features | |
|---|---|
| Traffic classification | Yes |
| Web-based management | Yes |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Half duplex | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Data transmission | |
|---|---|
| Store-and-forward | Yes |
| MAC address table | 8000 entries |
| Design | |
|---|---|
| Wall mountable | Yes |
| Housing material | Metal |
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Power | |
|---|---|
| Power consumption (max) | 77.33 W |
| Power consumption (typical) | 5.07 W |
| Input voltage | 53.5 V |
| Input current | 1.31 A |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) power per port | 65 W |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Power over Ethernet (PoE) ports quantity | 7 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 262.922 BTU/h |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 27 mm |
| Depth | 98 mm |
| Width | 171 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC |
