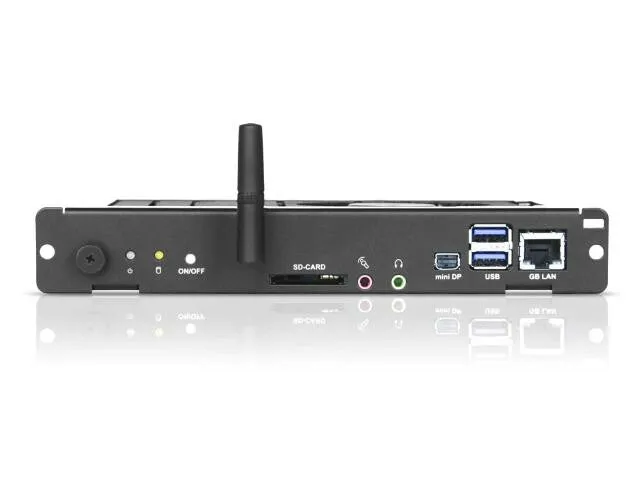

NEC OPS-Sky-i3-s4/64/W7e B 2.7 GHz Intel® Core™ i3 64 GB SSD 4 GB
OPS Slot-In PCs make digital signage simpler and more flexible without additional cables or devices
The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th generation Intel® processors (Skylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232. All NEC large format displays (except E series 32″ to 65″), PX and PH installation projectors feature this option slot
– Powerful possibilities – the 6th generation Intel® processors deliver a new class of computing with a host of new features to power the next generation of embedded computing.
– Intel® HD graphics – provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience.
– Tailor-made solution – extensive user configurations with a variety of processors, solid state drives, RAM and operating systems as well as W-LAN, TPM and G3.75 connectivity.
– High reliability – ideally suited for 24/7 operation due to the use of industrial grade components.
– Seamless and fully embedded – as all connectors are inside the display including power, video, audio signals and RS-232, no external cables are required.
– Secure greatness – 6th generation Intel® vProTM processors deliver security protection as well as AMT remote management functionality for the enterprise.
– Ideal for Digital Signage – compatible with OPS standard for option slot products enabling easier installation, operation and maintenance of digital signs.
– Economical – enjoy more performance whilst consuming less power.
| Processor |
| ECC supported by processor |
Yes |
| Memory bandwidth supported by processor (max) |
34.1 GB/s |
| Memory clock speeds supported by processor |
1600,1866,2133 MHz |
| Memory types supported by processor |
DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM |
| Conflict-Free processor |
Yes |
| Maximum internal memory supported by processor |
64 GB |
| Tjunction |
100 °C |
| PCI Express configurations |
1×16, 1×8+2×4, 2×8 |
| Maximum number of PCI Express lanes |
16 |
| Processor series |
Intel Core i3-6100 series |
| Thermal Design Power (TDP) |
35 W |
| Processor codename |
Skylake |
| Bus type |
DMI3 |
| Stepping |
R0 |
| Processor operating modes |
64-bit |
| Processor lithography |
14 nm |
| PCI Express slots version |
3.0 |
| Processor threads |
4 |
| System bus rate |
8 GT/s |
| Processor cache type |
Smart Cache |
| Processor cache |
3 MB |
| Processor socket |
BGA 1440 |
| Processor cores |
2 |
| Processor model |
i3-6100E |
| Processor generation |
6th gen Intel® Core™ i3 |
| Processor family |
Intel® Core™ i3 |
| Processor frequency |
2.7 GHz |
| Memory |
| Memory channels |
Dual-channel |
| Memory clock speed |
2133 MHz |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
16 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
4 GB |
| Storage |
| SSD capacity |
64 GB |
| SSD interface |
Micro Serial ATA III |
| Card reader integrated |
Yes |
| Compatible memory cards |
SD |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Total storage capacity |
64 GB |
| Graphics |
| Number of displays supported (on-board graphics) |
3 |
| Discrete graphics card model |
Not available |
| On-board graphics card ID |
0x191B |
| On-board graphics card OpenGL version |
4.4 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card dynamic frequency (max) |
950 MHz |
| On-board graphics card base frequency |
350 MHz |
| Maximum on-board graphics card memory |
64 GB |
| On-board graphics card family |
Intel® HD Graphics |
| On-board graphics card model |
Intel® HD Graphics 530 |
| On-board graphics card |
Yes |
| Network |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
No |
| Ports & interfaces |
| RS‐232/422 port |
Yes |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Mini DisplayPorts quantity |
1 |
| DVI port |
No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Performance |
| Product colour |
Black |
| Processor special features |
| Processor ARK ID |
90611 |
| Processor package size |
42 x 28 mm |
| Intel TSX-NI version |
1.00 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Secure Key Technology version |
1.00 |
| Intel Identity Protection Technology version |
1.00 |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel® OS Guard |
Yes |
| Intel 64 |
Yes |
| Intel® Secure Key |
Yes |
| Intel TSX-NI |
Yes |
| Graphics & IMC lithography |
14 nm |
| Embedded options available |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel Trusted Execution Technology |
No |
| Thermal Monitoring Technologies |
Yes |
| Idle States |
Yes |
| Execute Disable Bit |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Insider™ |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® Wireless Display (Intel® WiDi) |
Yes |
| Intel® InTru™ 3D Technology |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Turbo Boost Technology |
No |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Processor code |
SR2DV |
| Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
| Power |
| Power consumption (typical) |
45 W |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 90% |
| Operating temperature (T-T) |
0 – 40 °C |
| Certificates |
| Certification |
CE / FCC class A |
| Weight & dimensions |
| Package weight |
1 kg |
| Package height |
60 mm |
| Package depth |
260 mm |
| Package width |
200 mm |
| Weight |
900 g |
| Height |
30 mm |
| Depth |
200 mm |
| Width |
120 mm |
