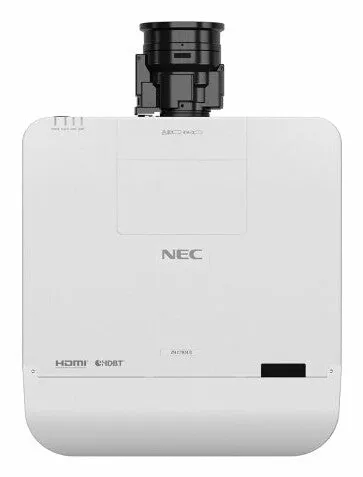

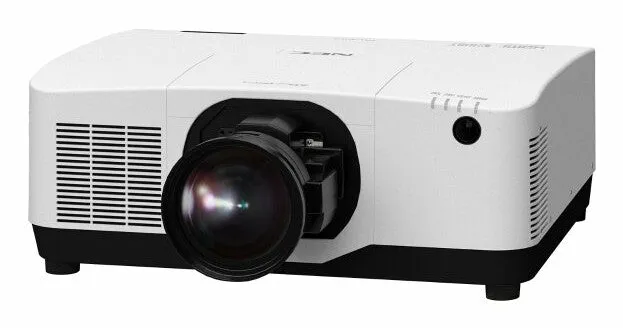

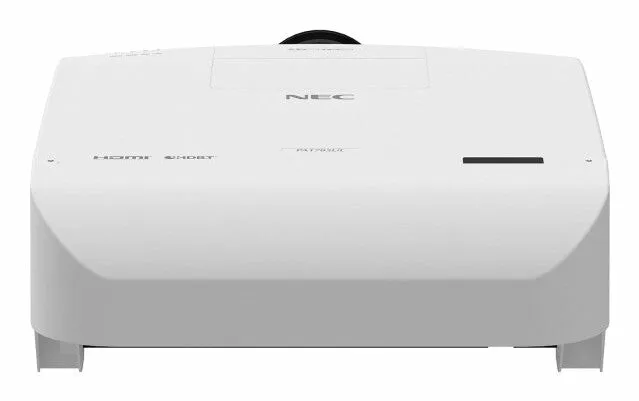

NEC PA1505UL 14000 ANSI lumens LCD WUXGA (1920×1200) 3D White
- No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source
- No filter service required – the enhanced sealed optical laser LCD engine allows a filter-free design, IP5X rated against dust ingress. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget
- Compact design – a large venue projector with a comparatively small footprint and light weight design
- Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling and camera based blending
A new class of bright projection
Now even larger spaces can benefit from Sharp/NEC’s innovation in silent technology with the 15,000 center lumens PA1505UL laser projector, ensuring all attention is focused on the stunning image delivery.
Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.
The enhanced sealed optical engine allows a filter-free design, IP5X rated against dust ingress – no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.
Sharp/NEC customers can easily make the transition to benefit from the latest laser technology. The PA1505UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.
| Projector | |
|---|---|
| Keystone correction, horizontal | +/- 40° |
| Keystone correction, vertical | +/- 30° |
| Projection distance | 0.68 – 80.77 m |
| Screen size compatibility | 1524 – 12700 mm (60 – 500″) |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 3000000:1 |
| Projector native resolution | WUXGA (1920×1200) |
| Projection technology | LCD |
| Projector brightness | 14000 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Zoom capability | Yes |
| Focus | Motorized |
| Video | |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160 |
| Supported video modes | 720p, 1080i, 1080p |
| Video colour modes | DICOM simulation mode |
| 3D | Yes |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| 3G-SDI input | 1 |
| PC in (D-Sub) | Yes |
| Serial interface type | RJ-45, RS-232 |
| Headphone outputs | 1 |
| USB 2.0 ports quantity | 1 |
| HDBaseT port | Yes |
| HDMI ports quantity | 2 |
| Network | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Certification | CE; EAC; ErP; RoHS; TUEV Type Approved |
| HDCP | Yes |
| Noise level (economic mode) | 35 dB |
| Noise level | 38 dB |
| Design | |
|---|---|
| Product colour | White |
| Market positioning | Education |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (standby) | 2 W |
| Power consumption (typical) | 925 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 – 80% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 50 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 238 mm |
| Depth | 490 mm |
| Width | 299 mm |
| Weight | 28.7 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Remote control type | IR |
| Remote control included | Yes |
