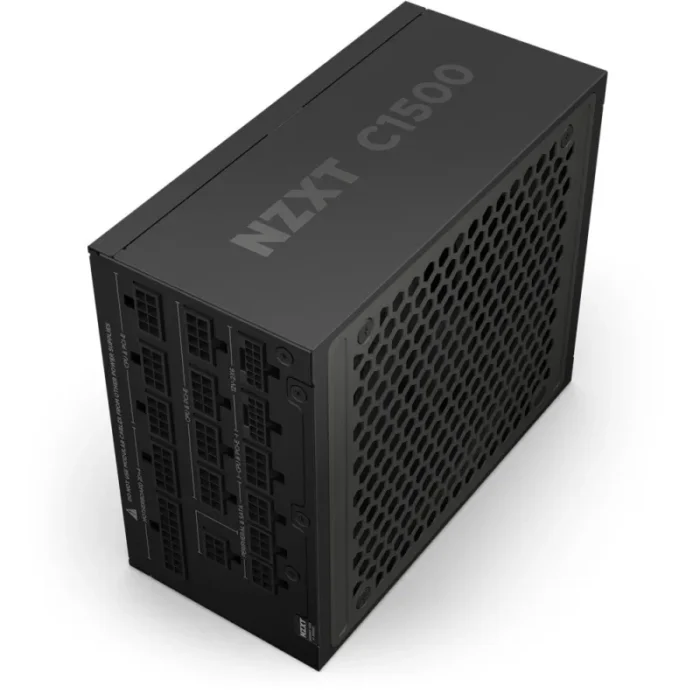

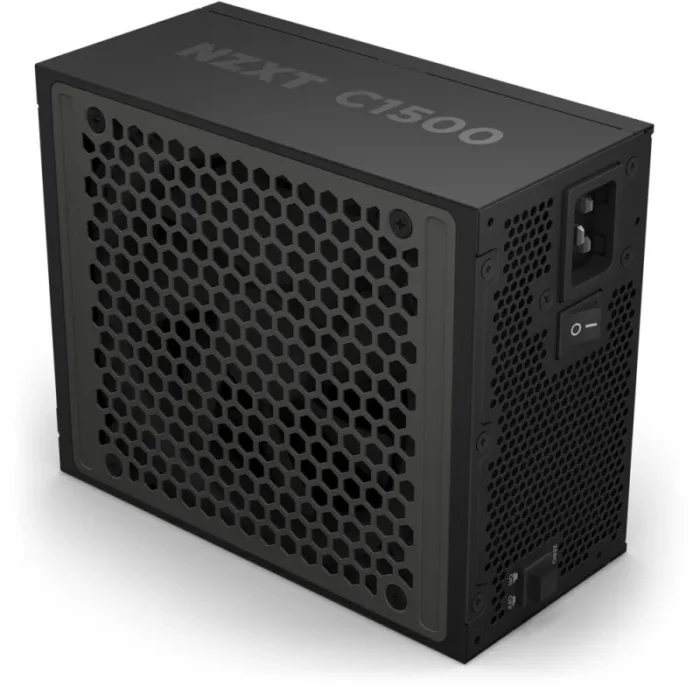

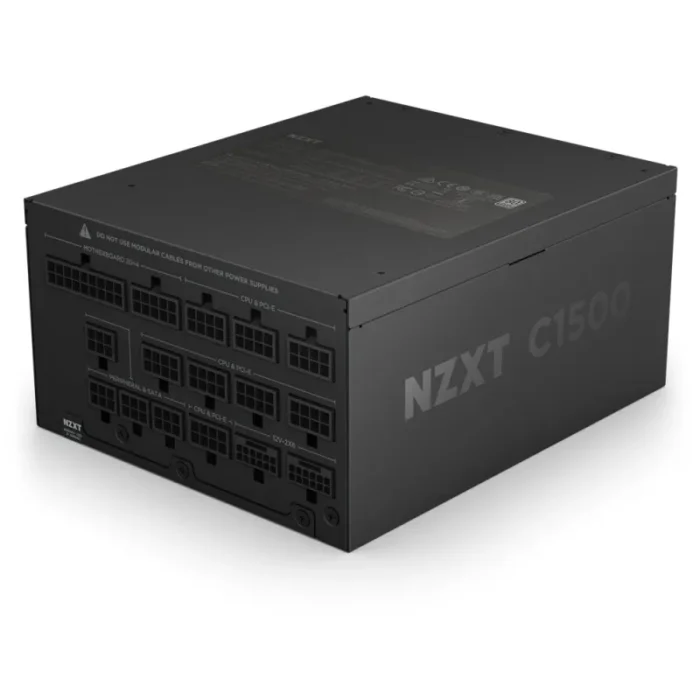

NZXT C1500 Platinum ATX 3.1 power supply unit 1500 W 24-pin ATX Black
- Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs
- Includes two 16-pin 12V-2×6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs
- Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise
- Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation
- Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings
- 140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan
- Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance
- Fully modular design simplifies cable management, allowing for the connection of only necessary cables
- Compact 180mm form factor optimizes valuable case space while promoting improved airflow
1500 Watt 80 PLUS Platinum Fully Modular ATX 3.1 PSU
The NZXT C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.
Future-Proof Power
ATX 3.1 and PCIe 5.1 compliance supports current and future high-performance GPUs and CPUs.
Dual PCIe 5.1 Connectors
Equipped with two 16-pin 12V-2×6 cables to power GPUs drawing more than 600 watts.
Digital Power
Enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
Exceptional Efficiency
Exceeding 80 Plus Platinum standards, the 94% efficiency lowers power usage and ensures quieter, cooler operation.
Magnetic Levitation Fan
140mm fan uses air-suspended blades to minimize noise, extend lifespan, and boost airflow.
Built with Quality
Constructed using all 105°C Japanese capacitors for unmatched reliability.
Fully Modular Design
Simplifies cable management by allowing connection of only necessary cables.
Space-Saving Size
Compact 180mm form factor optimizes case space while promoting improved airflow.
Peace of Mind
Backed by a 10-year warranty and reliable customer support.
| Power | |
|---|---|
| Efficiency | 94% |
| Max output current (+5Vsb) | 3 A |
| Max output current (+5V) | 22 A |
| Max output current (+12V) | 125 A |
| Max output current (+3.3V) | 22 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (+5V) | 120 W |
| Combined power (+12V) | 1500 W |
| Combined power (+3.3V) | 120 W |
| Maximum input current (@220V) | 9 A |
| Maximum input current (@110V) | 15 A |
| Input current | 15 – 9 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 115 – 240 V |
| Total power | 1500 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| ATX Power connector (24-pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (12+4 pin) cable length | 650 mm |
| EPS power connector (4+4 pin) | Yes |
| Peripheral (Molex) power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 150,500 mm |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | MLB |
| Noise level | 41 dB |
| EPS version | 2.92 |
| ATX version | 3.1 |
| Supported motherboard form factors | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Built-in display | No |
| Illumination | No |
| Fan speed | 2160 – 2640 RPM |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 50 °C |
| Certificates | |
|---|---|
| Certification | CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE |
| Compliance certificates | CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, WEEE |
| Weight & dimensions | |
|---|---|
| Height | 86 mm |
| Depth | 180 mm |
| Width | 150 mm |
| Technical details | |
|---|---|
| Sustainable technologies and materials | Steel, PCB, plastic |
| Logistics data | |
|---|---|
| Warranty period | 10 year(s) |
