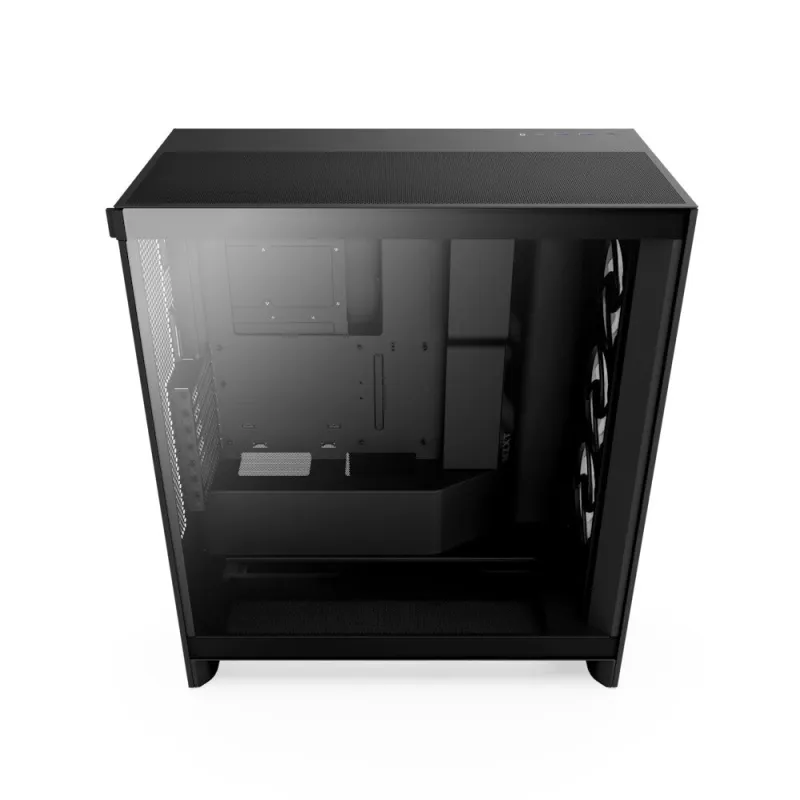

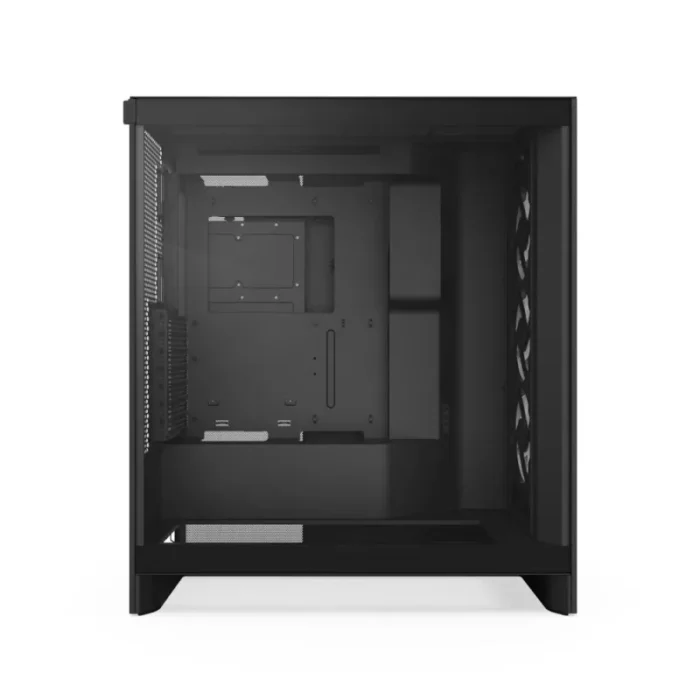

NZXT H7 Flow RGB Midi Tower Black
- Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint
- Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting
- High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust
- Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential
- Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing
- Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear
- Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel
- Tool-less access to the front, top, and side panels makes building and upgrading a breeze
The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.

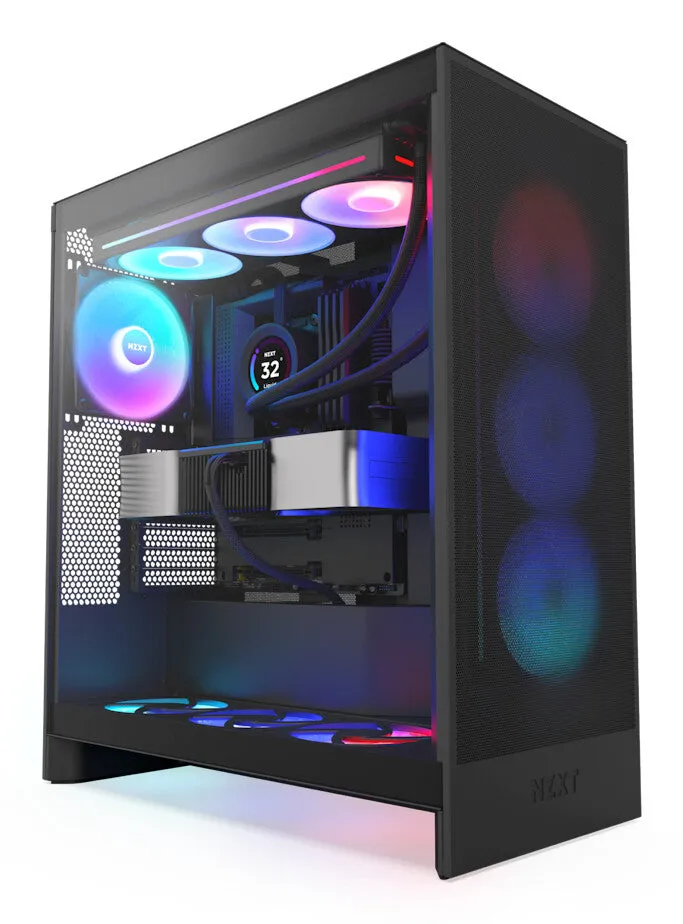

Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans
Out-of-the-Box Performance
Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Exploded view of H7 Flow panelsExploded view of H7 Flow panels
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 41 cm |
| Maximum CPU cooler height | 18.5 cm |
| On/off button | Yes |
| Reset button | No |
| Cable management | Yes |
| Tempered glass panel(s) | Yes |
| Illumination | Yes |
| Side window | Yes |
| Number of 2.5″ bays | 4 |
| Number of 3.5″ bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | SGCC, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 140 mm |
| Front radiator sizes supported | 360,420 mm |
| Maximum airflow | 50.1 cfm |
| Fan 2 maximum airflow | 50.1 cfm |
| Maximum air pressure | 1.27 mmH2O |
| Fan 2 maximum air pressure | 1.27 mmH2O |
| Fan speed | 1200 – 1500 RPM |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 120 mm |
| Fan speed control | No |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5″ |
| General | |
|---|---|
| Product family | H7 |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 11.1 kg |
| Height | 544 mm |
| Depth | 468 mm |
| Width | 244 mm |
