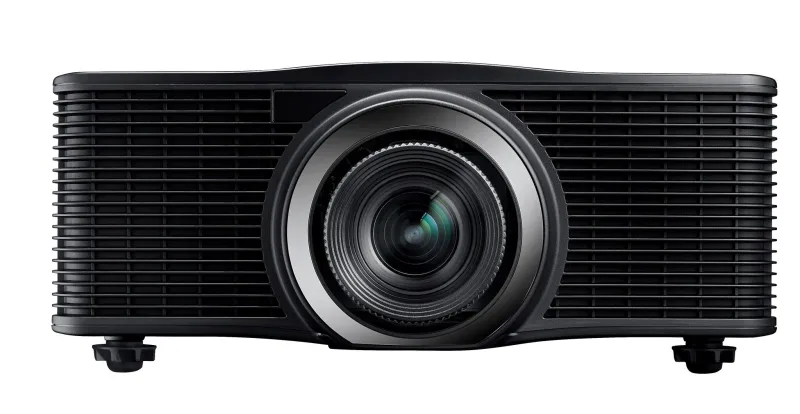

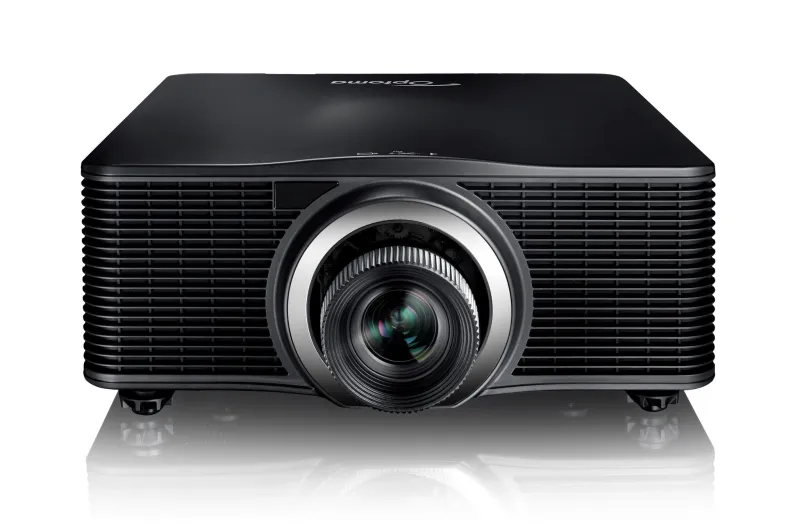

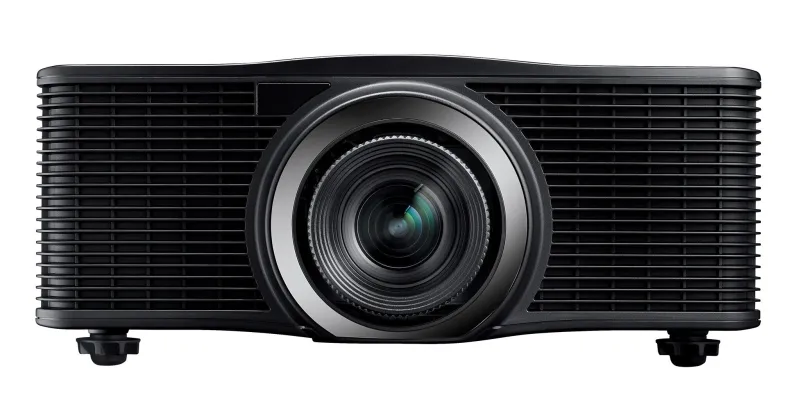

Optoma ZU860 Large venue projector 8500 ANSI lumens DLP WUXGA (1920×1200) 3D Black
- Home cinema Large venue projector Black
- DLP 8500 ANSI lumens
- Laser 30000 h
- WUXGA (1920×1200) 16:10 2000000:1
- Screen size compatibility: 1270 – 12700 mm (50 – 500″)
- Zoom capability
- Ethernet LAN
- 3D
- AC 300 W
| Projector |
| Heat dissipation |
2235 BTU/h |
| Keystone correction, horizontal |
-20 – 20° |
| Keystone correction, vertical |
-20 – 20° |
| Horizontal scan range |
15.375 – 91.146 kHz |
| Vertical scan range |
50 – 85 Hz |
| Uniformity |
90% |
| Screen size compatibility |
1270 – 12700 mm (50 – 500″) |
| Supported aspect ratios |
4:3, 16:10, 16:9 |
| Native aspect ratio |
16:10 |
| Contrast ratio (typical) |
2000000:1 |
| Projector native resolution |
WUXGA (1920×1200) |
| Projection technology |
DLP |
| Projector brightness |
8500 ANSI lumens |
| Light source |
| Service life of light source |
30000 h |
| Light source type |
Laser |
| Lens system |
| Zoom ratio |
2.0:1 |
| Zoom capability |
Yes |
| Video |
| Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA) |
| Supported video modes |
480i, 480p, 525i, 540p, 576i, 576p, 625i, 720p, 1080i, 1080p |
| Supported 3D formats |
Frame packing, Side by side, Top and bottom |
| 3D |
Yes |
| Full HD |
Yes |
| Analog signal format system |
NTSC, PAL, SECAM |
| Ports & interfaces |
| AC (power) in |
Yes |
| Serial interface type |
RS-232C |
| HDBaseT port |
Yes |
| DVI port |
Yes |
| HDMI connector type |
Full-size |
| HDMI ports quantity |
2 |
| VGA (D-Sub) ports quantity |
2 |
| Network |
| Wi-Fi |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Smart TV |
No |
| Storage |
| Card reader integrated |
No |
| Features |
| Password protection |
Yes |
| Number of OSD languages |
11 |
| On Screen Display (OSD) languages |
Simplified Chinese, German, Dutch, English, Spanish, French, Indonesian, Italian, Japanese, Portuguese, Russian |
| On Screen Display (OSD) |
Yes |
| Noise level |
32 dB |
| Multimedia |
| Built-in speaker(s) |
No |
| Design |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Placement |
Desktop |
| Product colour |
Black |
| Market positioning |
Home cinema |
| Product type |
Large venue projector |
| Display |
| Built-in display |
No |
| Power |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (max) |
625 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
300 W |
| Power source |
AC |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 85% |
| Storage temperature (T-T) |
-10 – 60 °C |
| Operating temperature (T-T) |
0 – 35 °C |
| Weight & dimensions |
| Height |
195 mm |
| Depth |
529 mm |
| Width |
484 mm |
| Weight |
17.6 kg |
| Packaging content |
| Cables included |
AC, VGA |
| Manual |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85286200 |
| Quantity per pack |
1 pc(s) |
