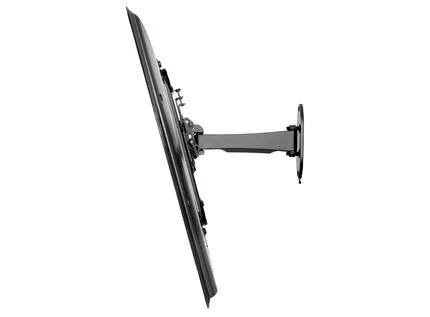

Peerless SP746PU TV mount/stand 127 cm (50″) Black
- Universal mount accommodates 200 x 100 to 400 x 400mm VESA® mounting patterns
- Retracts to hold display just 3.46″ (88mm) from the wall
- ±90° of pivot allows for perfect display positioning /Easy levelling ±5° after display installation
- Quick and easy, Hook-and-Hang™ one-person installation
- Landscape or portrait mounting options increases display versatility
- Includes all necessary wall and display attachment hardware
- Design is UL listed and tested to four times stated load capacity
The SmartMount® Pivoting Wall Mount series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate’s innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SP746PU, extend the display up to 12.84″ (326mm) or fully-retract it to just 3.46″ (88mm) from the wall for an improved viewing angle. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
| Mounting |
| Number of displays supported |
1 |
| Maximum VESA mount |
400 x 400 mm |
| Minimum VESA mount |
200 x 100 mm |
| Mounting type |
Wall |
| Maximum screen size |
127 cm (50″) |
| Minimum screen size |
81.3 cm (32″) |
| Maximum weight capacity |
36 kg |
| Ergonomics |
| Pivot angle |
-90 – 90° |
| Tilt angle range |
-5 – 15° |
| Tilt adjustment |
Yes |
| Height adjustment |
Yes |
| Design |
| Certification |
RoHS, UL |
| Product colour |
Black |
| Technical details |
| Orientation |
Landscape/Portrait |
| Packaging content |
| Manual |
Yes |
| Mounting kit |
Yes |
| Weight & dimensions |
| Weight |
10.4 kg |
| Height |
425 mm |
| Depth (max) |
32.6 cm |
| Depth (min) |
8.8 cm |
| Width |
488 mm |
| Packaging data |
| Package weight |
5.06 kg |
| Package height |
106 mm |
| Package depth |
305 mm |
| Package width |
525 mm |
| Logistics data |
| Harmonized System (HS) code |
85299097 |
