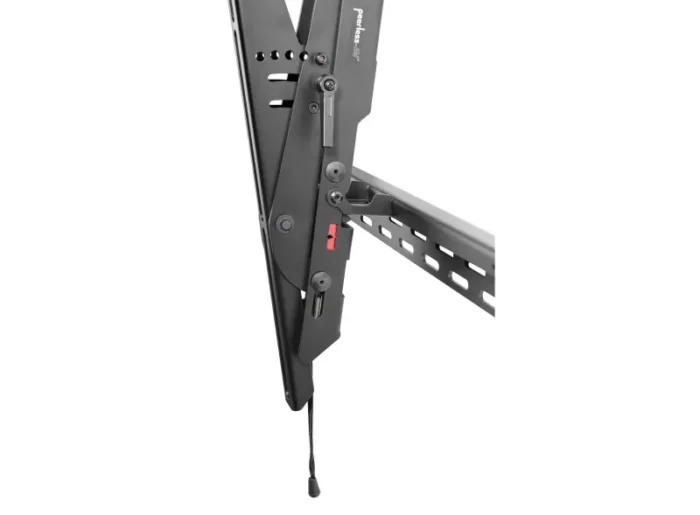

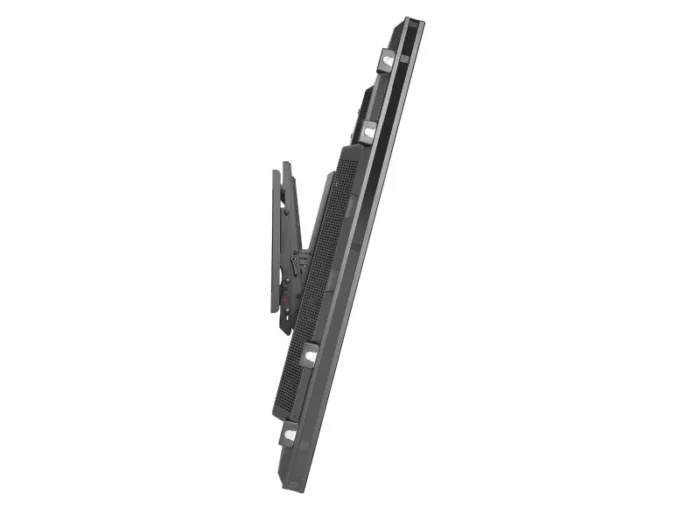

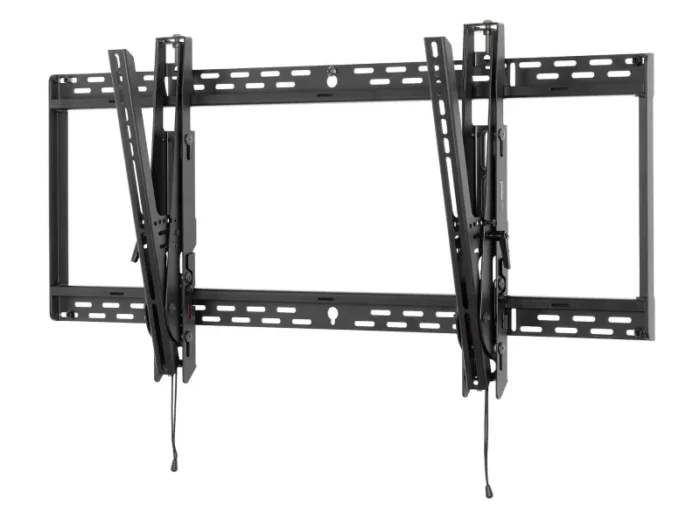

Peerless ST670P TV mount/stand 2.29 m (90″) Black
- Universal mount fits displays with mounting patterns up to 895 x 450mm (35.25″ W x 17.72″ H)
- Adjustable up to 15° of forward tilt and -5° of backward tilt for the optimal viewing angle
- Optional IncreLokTM feature offers fixed tilt angles of -5°, 0°, 5°, 10°, 15°
- Easy-GripTM ratcheting handle locks the display into place
- Easy hang wall plate allows a bolt to be pre-installed to ease wall plate installation
- Lateral display adjustment up to 11.25″ (286mm)
- 1″ of post-installation vertical adjustment provides flexibility in the installation
- Includes fastener pack with all necessary mounting and display attachment hardware
- For mounts requiring theft resistant hardware, installed with security tool (included), please purchase ST670
- For mounts requiring standard hardware, installed with a Philips screwdriver, please purchase ST670P
Enhance the installation experience with the ST67. Its wall plate holds displays weighing up to 25lb while featuring junction box access ports and horizontal display adjustment up to 12″ for ideal display positioning. Its exclusive pre-tensioned display adaptor design offers display tilt viewing adjustment enabling putting the final touches on the installation increasingly fast and simple.
Mounting |
Mounting type |
Wall |
Maximum screen size |
2.29 m (90″) |
Minimum screen size |
116.8 cm (46″) |
Maximum weight capacity |
113 kg |
Ergonomics |
Distance to the wall (max) |
16.8 cm |
Distance to the wall (min) |
7.6 cm |
Tilt angle range |
-5 – 15° |
Tilt adjustment |
Yes |
Design |
Certification |
UL, RoHS |
Compatibility |
LCD/Plasma |
Product colour |
Black |
Packaging content |
Manual |
Yes |
Mounting kit |
Yes |
Weight & dimensions |
Weight |
7.3 kg |
Height |
495 mm |
Depth (max) |
16.8 cm |
Depth (min) |
7.6 cm |
Width |
1001 mm |
Packaging data |
Package weight |
8.68 kg |
Package height |
110 mm |
Package depth |
385 mm |
Package width |
985 mm |
Logistics data |
Harmonized System (HS) code |
85299097 |
Other features |
Screen size compatibility |
1066.8 – 1803.4 mm (42 – 71″) |
