Seagate Nytro 5350M 15.4 TB 2.5″ PCI Express 4.0 3D eTLC
- 15.4 TB 2.5″ PCI Express 4.0
- Read speed: 6200 MB/s 1000000 IOPS
- Write speed: 2600 MB/s 85000 IOPS
- 3D eTLC
- Component for: Universal
High performance engineered with Phison technology for the modern data center.

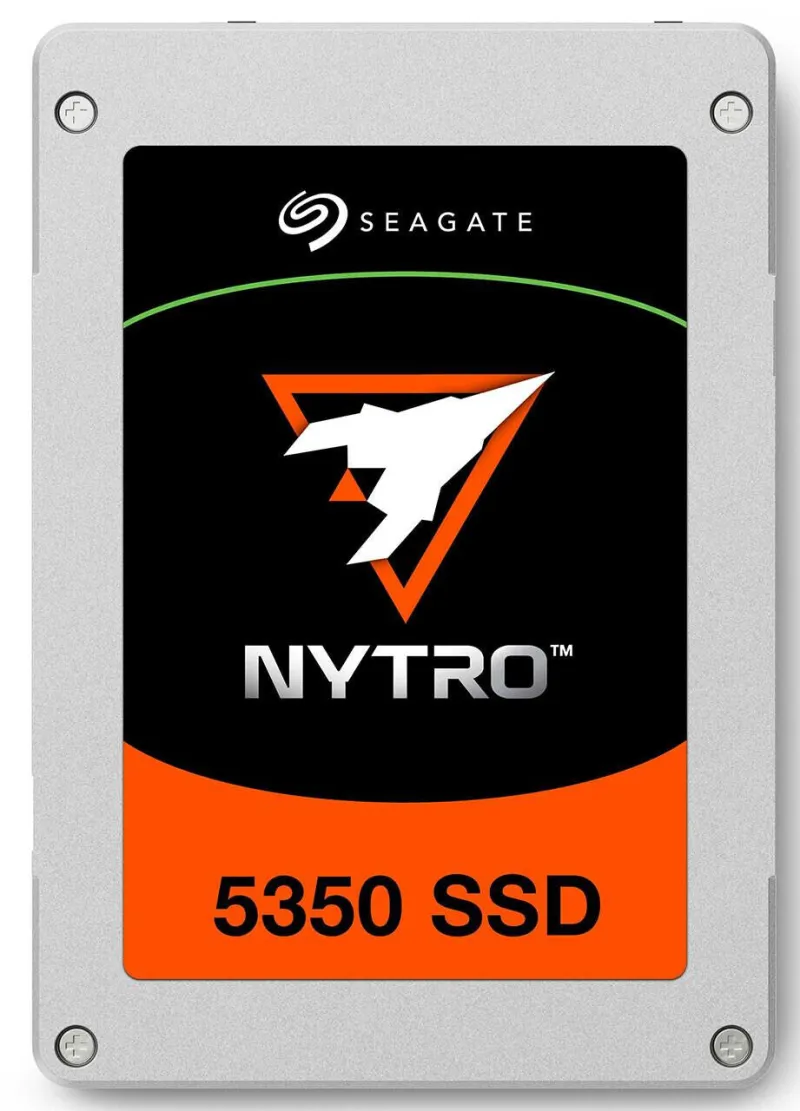

Nytro 5350 NVMe SSD
The Seagate® Nytro® 5350 NVMe SSD is designed to deliver PCIe Gen4 performance and built to endure read-intensive workloads—giving you more computing while reducing TCO.
| Features | |
|---|---|
| SSD usage tag | Data center |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mean time between failures (MTBF) | 2500000 h |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| PCI Express interface data lanes | x4 |
| Write latency | 12 µs |
| Read latency | 90 µs |
| Random write (4KB) | 85000 IOPS |
| Random read (4KB) | 1000000 IOPS |
| Write speed | 2600 MB/s |
| Read speed | 6200 MB/s |
| Target workload | Read Intensive (RI) |
| Hardware encryption | No |
| Component for | Universal |
| Memory type | 3D eTLC |
| NVMe | No |
| Interface | PCI Express 4.0 |
| SSD form factor | 2.5″ |
| SSD capacity | 15.4 TB |
| Power | |
|---|---|
| Power consumption (idle) | 7 W |
| Power consumption (average) | 15 W |
| Operating voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Weight | 170 g |
| Height | 14.9 mm |
| Depth | 100.4 mm |
| Width | 70.1 mm |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
