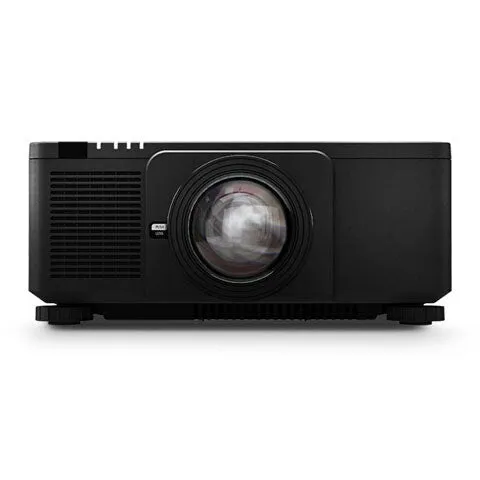

Sharp XP-X141Q-B Standard throw projector 13500 ANSI lumens DLP WUXGA (1920×1200) Black
- Finest detail – crisp 4K+ resolution achieves perfect image clarity for easy viewing of very detailed content
- Superb image quality – producing vivid reds, the RB laser light source delivers excellent colour performance, projecting images that are remarkably lifelike
- IP6X rated optical engine – protects against dust ingress for long lasting picture quality
- Designed for efficiency – the small footprint defies the high brightness delivery at low energy consumption
Extreme efficiency in the sharpest detail
Projecting the sharpest detail and most life-like colours, the 4K+ X141Q laser phosphor projector features new HEP DMD technology for enhanced contrast and remarkably efficient performance.
RB laser technology is highly efficient in producing the most intensely natural tones, minimising power consumption whilst delivering brilliant colours at high brightness levels. Long lasting imaging performance is safeguarded against dust contamination with an IP6X rated sealed light engine, also minimising maintenance requirements.
Compact and light weight, yet this impressive projector delivers all the professional functionality for easy installation and precision setup. For higher education, museums and conferencing, the X141Q offers reliable long-life performance at an impressively low total cost of ownership.
| Projector | |
|---|---|
| Keystone correction, horizontal | -36 – 36° |
| Keystone correction, vertical | -36 – 36° |
| Projection distance | 0.86 – 43.2 m |
| Screen size compatibility | 1016 – 12700 mm (40 – 500″) |
| Native aspect ratio | 16:10 |
| Projector native resolution | WUXGA (1920×1200) |
| Projection technology | DLP |
| Projector brightness | 13500 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Zoom type | Auto |
| Zoom capability | Yes |
| Focus | Motorized |
| Video | |
|---|---|
| Supported graphics resolutions | 2048 x 1080, 3840 x 2160, 3840 x 2400 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Full HD | Yes |
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Ports & interfaces | |
|---|---|
| Serial interface type | RJ-45 |
| Audio (L/R) in | 1 |
| USB 2.0 ports quantity | 1 |
| HDBaseT port | Yes |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Certification | CE; ErP; RoHS; TUEV Type Approved |
| On Screen Display (OSD) | Yes |
| HDCP | Yes |
| Noise level (economic mode) | 35 dB |
| Noise level | 37 dB |
| Design | |
|---|---|
| Placement | Desktop, Ceiling |
| Product colour | Black |
| Market positioning | Business |
| Product type | Standard throw projector |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 1000 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 – 90% |
| Operating relative humidity (H-H) | 0 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating temperature (T-T) | 5 – 45 °C |
| Weight & dimensions | |
|---|---|
| Height | 211 mm |
| Depth | 577 mm |
| Width | 500 mm |
| Weight | 28 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| Remote control type | IR |
| Remote control included | Yes |
| Technical details | |
|---|---|
| Contrast ratio | 3000000:1 |
| Compliance certificates | RoHS |
