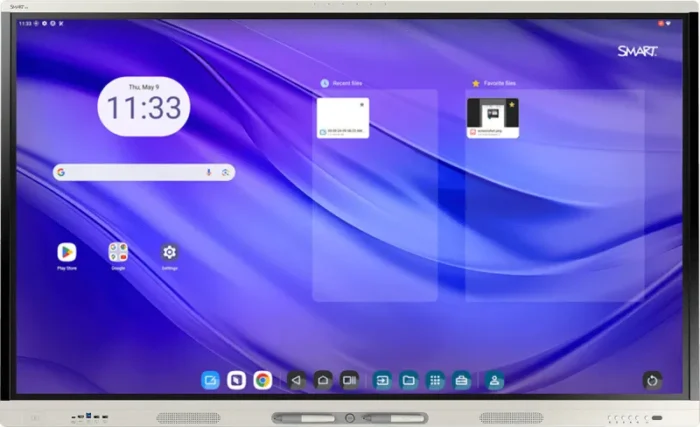

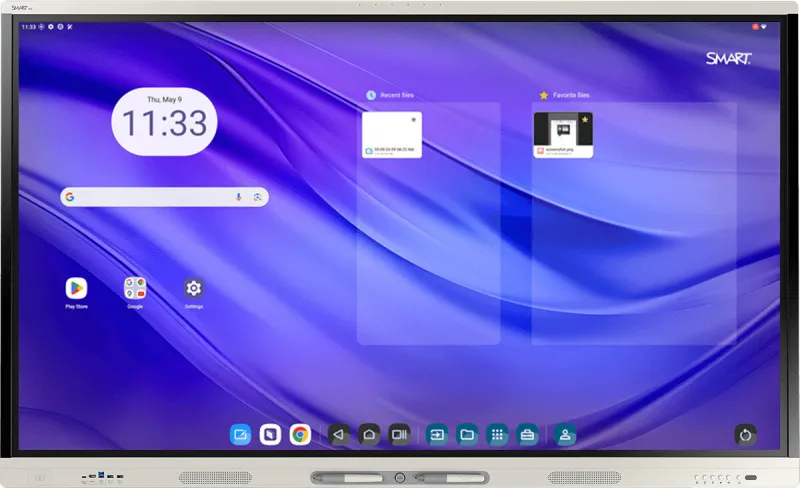

SMART Technologies SBID-MX275-V5-PW interactive whiteboard 190.5 cm (75″) 3840 x 2160 pixels Touchscreen Silver USB / Bluetooth
- HyPr Touch with Advanced IR
- Android version 13.0 (forward compatible)
- Web browser
- Google Play Store
- Screen sharing
| Display | |
|---|---|
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Number of simultaneous touchpoints | 40 |
| Multi-touch | Yes |
| Touchscreen | Yes |
| Response time | 6 ms |
| Native aspect ratio | 16:9 |
| Panel type | LCD |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| Display diagonal | 190.5 cm (75″) |
| Computer system | |
|---|---|
| RAM capacity | 8 GB |
| Processor cores | 8 |
| Built-in processor | Yes |
| Operating system version | 13 |
| Operating system installed | Android |
| Audio | |
|---|---|
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Projector | |
|---|---|
| Built-in projector | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDCP version | 2.3 |
| HDCP | Yes |
| Interface | USB / Bluetooth |
| Ergonomics | |
|---|---|
| Wall mountable | Yes |
| Panel mounting interface | 800 x 400 mm |
| VESA mounting | Yes |
| Product colour | Silver |
| Power | |
|---|---|
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 / 60 Hz |
| Power consumption (standby) | 0.2 W |
| Power consumption (typical) | 103 W |
| System requirements | |
|---|---|
| Mobile operating systems supported | Android |
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 5 – 80% |
| Operating temperature (T-T) | 5 – 35 °C |
| Weight & dimensions | |
|---|---|
| Weight | 54 kg |
| Height | 1061 mm |
| Depth | 89 mm |
| Width | 1737 mm |
| Packaging data | |
|---|---|
| Package weight | 72 kg |
| Package height | 1285 mm |
| Package depth | 160 mm |
| Package width | 1820 mm |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Cables included | AC, USB |
| Sustainability | |
|---|---|
| Compliance certificates | UL, Low Voltage Directive (LVD), REACH, RoHS, Federal Communications Commission (FCC), WEEE, CB, CE, ISED, UKCA |
