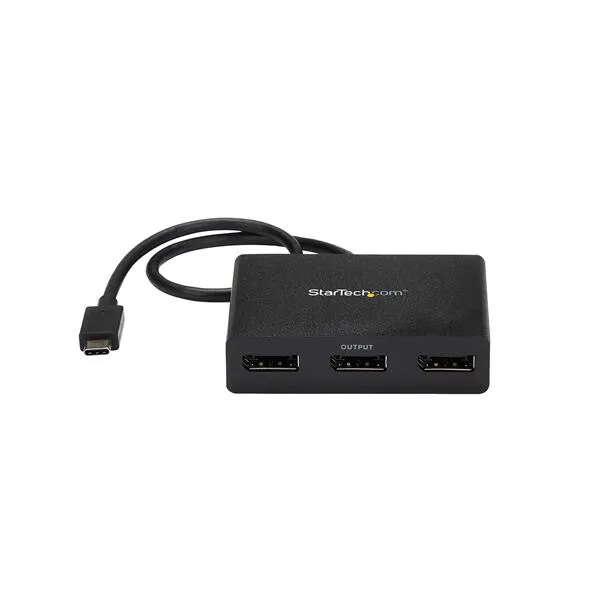

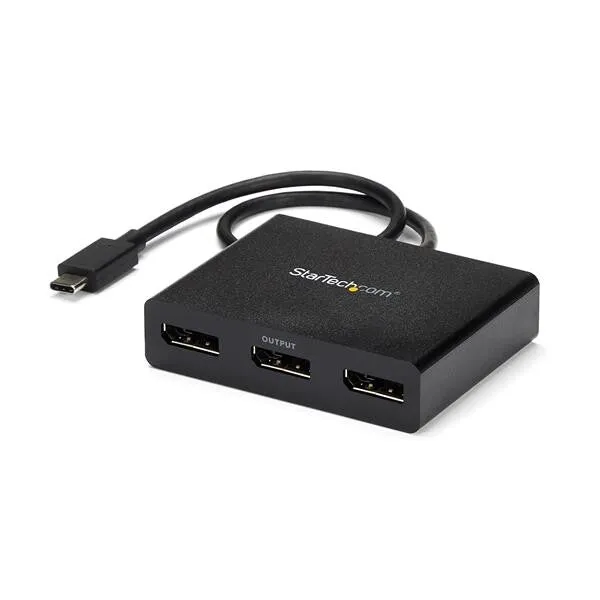

StarTech.com 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x DisplayPort 1.2 MST Hub, Triple 1080p 30Hz DP Laptop Display Extender / Splitter, Extra-Long Built-In Cable – Windows Only
- MULTI-MONITOR CONFIGURATION: USB Type-C to Triple DisplayPort adapter/splitter hub drives up to three 1080p 60Hz or two 4K 30Hz displays using a USB-C DP Alt-Mode port on Windows laptops; TB3/TB4/USB4 Compatible; Not compatible with macOS
- NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Host system must support DP Alt Mode 1.2 / HBR2 / MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays

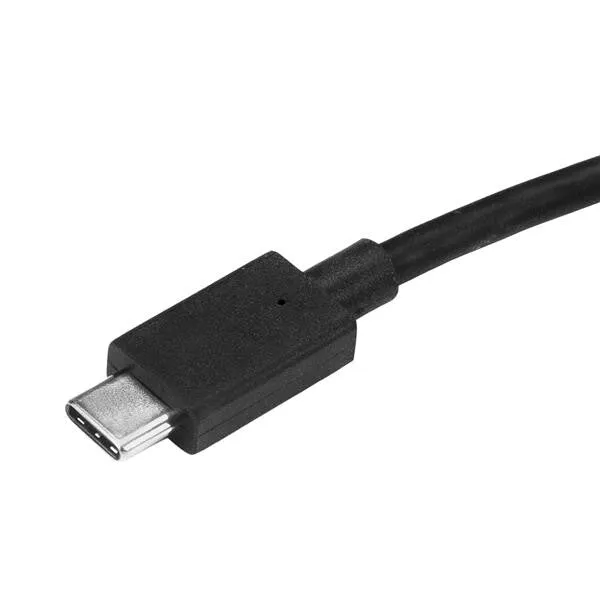

- EXTRA LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 devices like Surface Pro 7, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
- OUR ADVANTAGE: Included connectivity tools for IT Pro’s and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Triple DisplayPort Adapter
Multi-Monitor Video Splitter | Windows | Thunderbolt 3 Compatible
This 3-port USB-C to DisplayPort MST hub lets you connect three DisplayPort monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.
Multitasking Made Easy
With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This MST hub solves that problem by enabling you to connect three displays to your USB-C computer, making multi-tasking much easier.
Using this USB-C to DisplayPort splitter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.
Astonishing Picture Quality
Multi-Stream Transport (MST) technology uses your existing video card to minimize the use of system resources while delivering UHD 4K resolutions for up to two monitors simultaneously. Plus, because the multi-monitor splitter can output HD 1080p on three independent displays, it’s perfect for all high-resolution applications such as graphic design and medical imaging.
Hassle-Free Setup
MST offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C multi-monitor adapter is Thunderbolt 3 compatible and offers plug-and-play installation with no drivers or software required. Additionally, this DP MST hub is powered by the USB-C port, meaning no external power cords are necessary.
MSTCDP123DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support.
The StarTech.com Advantage
– MULTIPLE MONITORS: USB-C to DisplayPort splitter to drive 2x 4K 30Hz or 3x 1080p 60Hz DP displays using a USB-C DP Alt-Mode port (DP 1.2/HBR2/MST) w/ no video compression; Thunderbolt 3 compatible
– CONVENIENCE: With a built-in 1ft cable, this bus-powered 3-port MST hub provides an easy method to connect up to three independent screens with any DisplayPort over USB Type-C Windows host device
– COMPATIBLE WITH: Dell XPS / Precision / Latitude, Lenovo ThinkPad X1 Carbon / Extreme, Surface Laptop 3 / Book 3 / Pro 7, HP ProBook / EliteBook / Spectre / ZBook & smaller (Mini -ITX) computers
| Performance | |
|---|---|
| Certification | CE, FCC, REACH |
| Chipset | MegaChips – STDP4320, VIA/VLI – VL100 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| Refresh rate at maximum resolution | 30 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| DisplayPort version | 1.2 |
| Number of displays supported | 3 |
| DisplayPort output | Yes |
| HDMI output | No |
| DVI output | No |
| USB connector gender | Male |
| USB connector type | USB Type-C |
| Design | |
|---|---|
| Integrated USB cable | Yes |
| Housing material | Plastic |
| Product colour | Black |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Weight & dimensions | |
|---|---|
| USB cable length | 0.322 m |
| Weight | 86 g |
| Height | 18 mm |
| Depth | 78 mm |
| Width | 60 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | -20 – 70% |
| Operating temperature (T-T) | 0 – 45 °C |
| Packaging data | |
|---|---|
| Package weight | 200 g |
| Package height | 30 mm |
| Package depth | 175 mm |
| Package width | 145 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 220 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 330 mm |
| Products per master (outer) case | 28 pc(s) |
