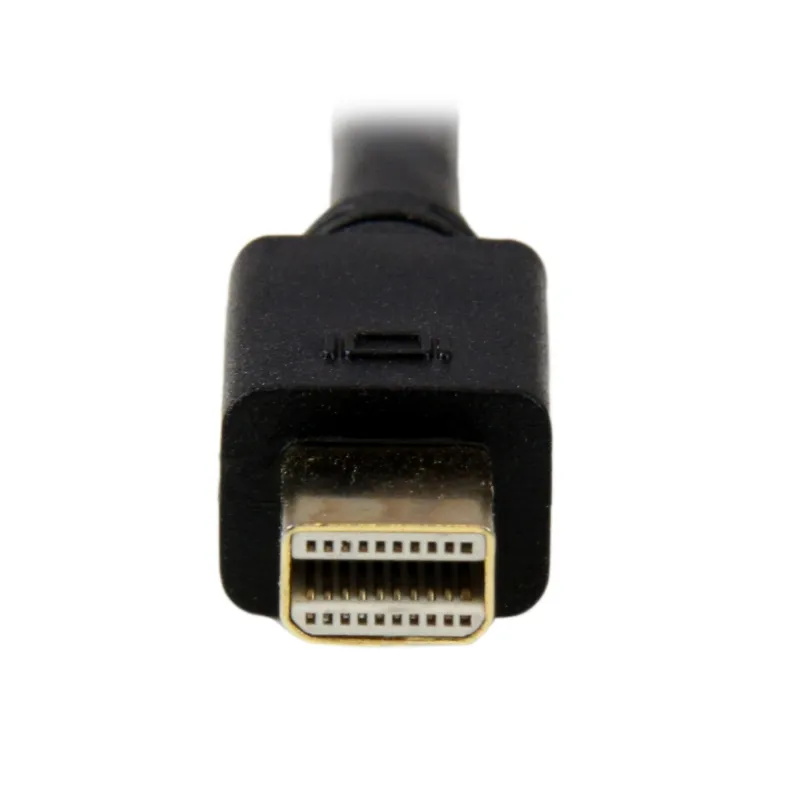

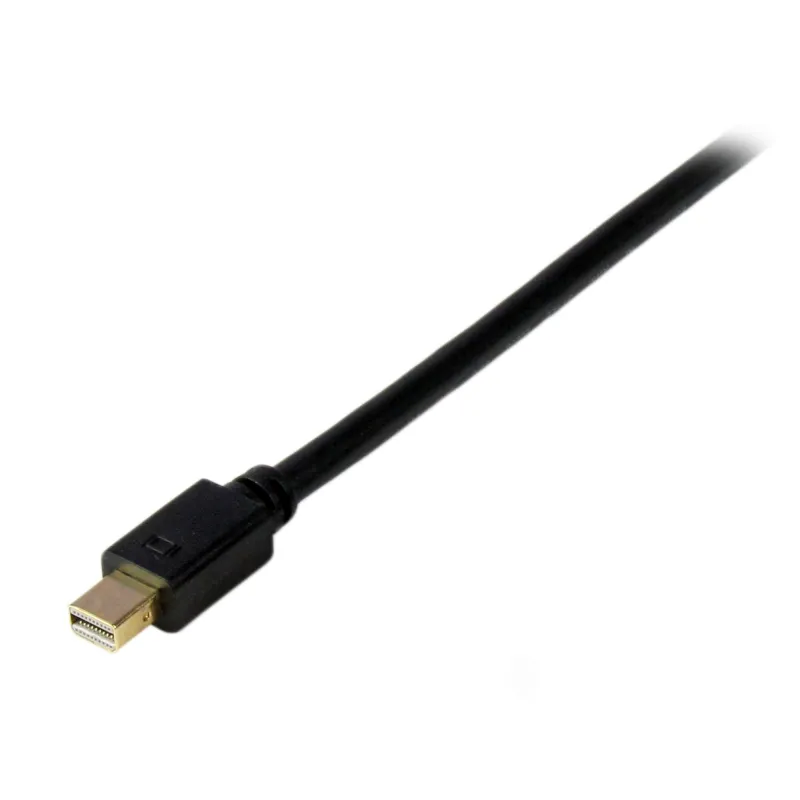

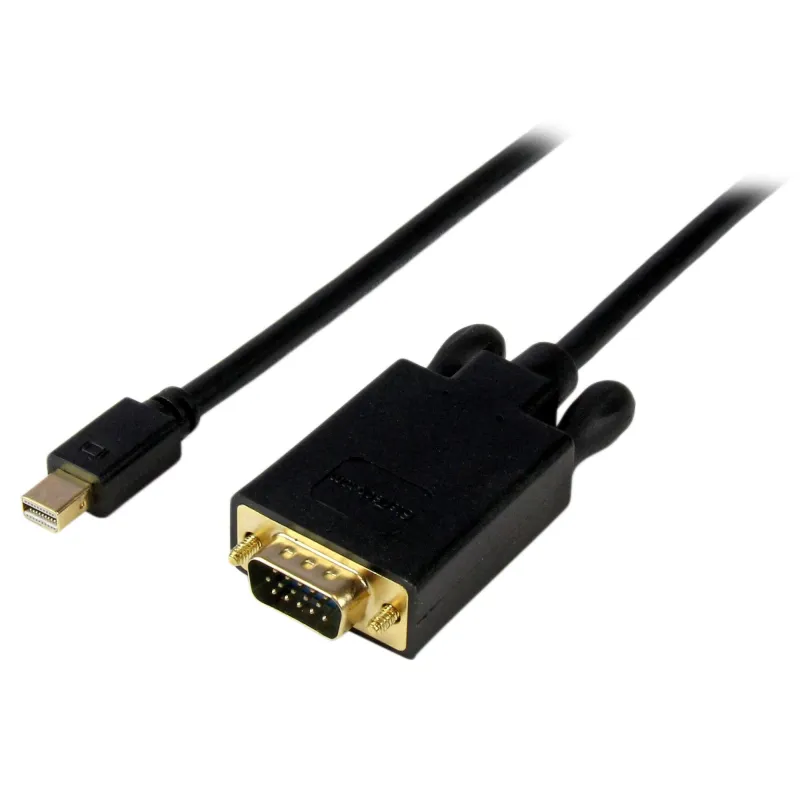

StarTech.com 3ft (1m) Mini DisplayPort to VGA Cable – Active Mini DP to VGA Adapter Cable – 1080p Video – mDP 1.2 or Thunderbolt 1/2 Mac/PC to VGA Monitor/Display – Converter Cord
- MINI DISPLAYPORT TO VGA CABLE: 3ft (0.9m) Mini DisplayPort 1.2 (HBR2) to VGA cable connects a VGA display/monitor/projector supporting 1920×1200 & 1080p at 60Hz; DPCP & HDCP 1.4 / EDID & DDC pass-through ensure compatibility between source & display
- HOST COMPATIBILITY: Active digital to analog converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INTEGRATED DISPLAY CABLE: Mini DisplayPort to VGA adapter cable has slim & flexible design with video adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office
- INCREASE PRODUCTIVITY: Connect a VGA monitor or projector, or add a second display to your workstation using this mDP to VGA display adapter cable / Supports VGA screw locking cable to prevent accidental disconnection / Gold-plated connectors
- EASY TO USE: With no software or drivers required, the Mini DP to VGA converter cord works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks
Connect a Mini DisplayPort-equipped PC or Mac® to a nearby VGA monitor/projector, with a short 3ft black cable
The MDP2VGAMM3B active Mini DisplayPort to VGA converter cable lets you connect your Mini DisplayPort-equipped desktop or laptop directly to a nearby VGA monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable. The adapter is the perfect accessory for any of your Microsoft® Surface™ Pro or MacBook® devices that support mDP.
The adapter cable is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port. Plus, because the converter cable supports video resolutions up to 1920×1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.
The MDP2VGAMM3B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
| Features |
| Converter type |
Active video converter |
| Plug and Play |
Yes |
| Chipset |
Analogix – 9832 |
| Product colour |
Black |
| Supported video modes |
1080p |
| Maximum resolution |
1920 x 1200 pixels |
| DisplayPort version |
1.2 |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 |
mini DisplayPort |
| Cable length |
0.91 m |
| Operational conditions |
| Operating relative humidity (H-H) |
40 – 85% |
| Storage temperature (T-T) |
-10 – 70 °C |
| Operating temperature (T-T) |
0 – 60 °C |
| Certificates |
| Certification |
CE, FCC, REACH |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Height |
15 mm |
| Depth |
930 mm |
| Width |
34 mm |
| Weight |
72.5 g |
| Packaging data |
| Package weight |
90 g |
| Package height |
20 mm |
| Package depth |
223 mm |
| Package width |
198 mm |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Products per master (outer) case |
220 pc(s) |
| Master (outer) case height |
435 mm |
| Master (outer) case length |
415 mm |
| Master (outer) case width |
420 mm |
| Harmonized System (HS) code |
84733080 |
