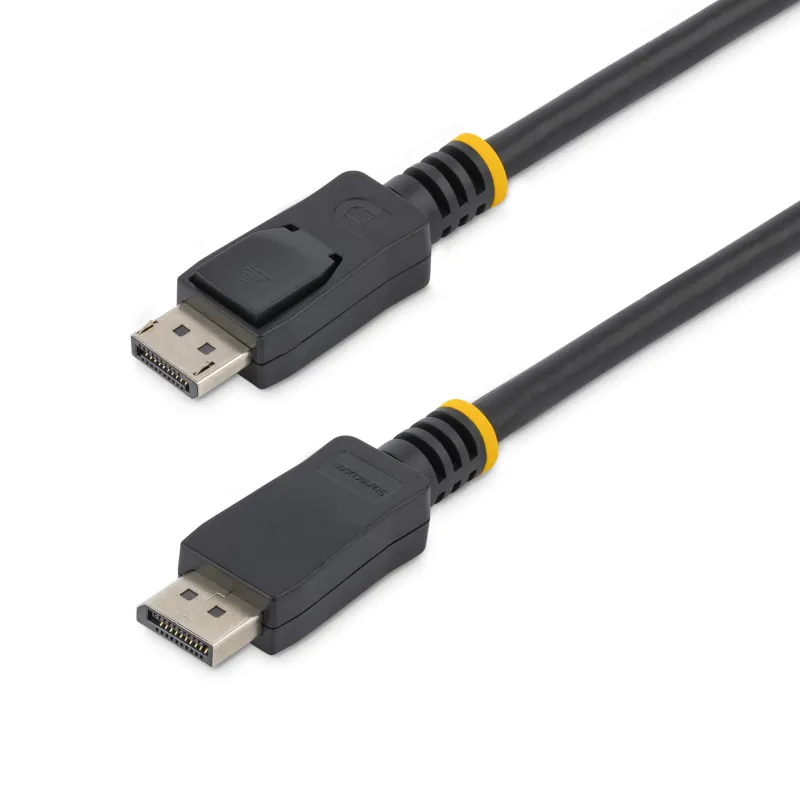

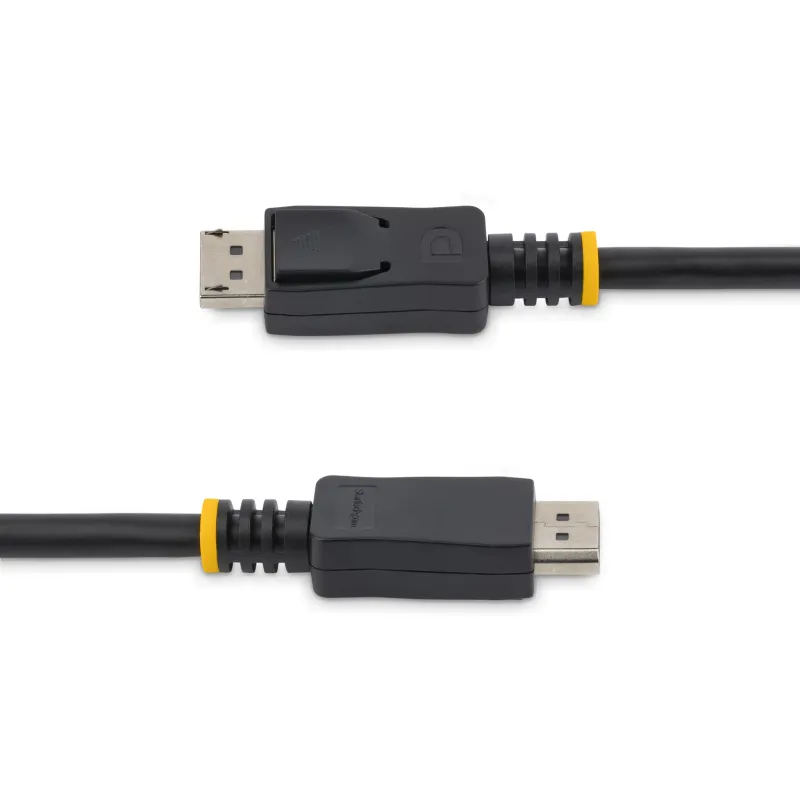

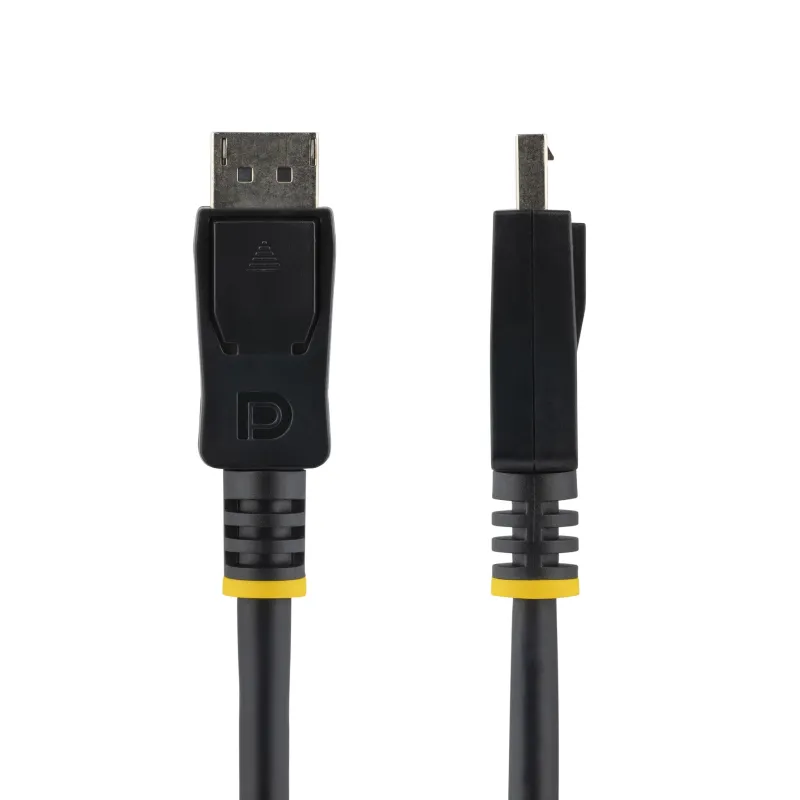

StarTech.com 7m (23ft) DisplayPort Cable – 2560 x 1440p – DisplayPort to DisplayPort Cable – DP to DP Cable for Monitor – DP Video/Display Cord – Latching DP Connectors – HDCP & DPCP
- HIGH PERFORMANCE CABLE: This 7m (23ft) DisplayPort to DisplayPort cable supports 2K (2560x1440p) 30Hz, Full HD (1920x1200p) 60Hz, 10.8 Gbps bandwidth, Multi-Stream Transport (MST), 5.1, 7.1 Audio Channel, GTC for precise audio channel timing & 3D Stereo
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- QUALITY CONSTRUCTION: 26AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
- SPECS: 7 m (23 ft) / Black / DisplayPort v1.0 / DP Latching Male to Male / 26 AWG / PVC cable jacket, ABS connector shell / Shield: Al-Mylar foil with Braid / Protocols: MST, GTC / Lifetime Warranty
Connect DisplayPort®-equipped devices over longer distances
The DISPL7M DisplayPort Cable with latches provides a secure connection between your DisplayPort-enabled devices and allows for a connection distance of up to 7 meters between your source and display.
With a bandwidth of 10.8Gbps and support for maximum resolutions up to 2560×1600 (WQXGA), as well as optional audio support, this 7-meter DisplayPort cable offers impressive video capability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
The DISPL7M is backed by StarTech.com’s Lifetime Warranty.
The StarTech.com Advantage
| Features | |
|---|---|
| Number of conductors | 19 |
| Multi-Stream Transport (MST) | Yes |
| Plug and Play | Yes |
| Bandwidth | 21600 MB/s |
| AWG wire size | 26 |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shielding | Aluminum mylar foil |
| Cable rating | CMG (CM) |
| Product colour | Black |
| Latching connectors | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA) |
| Maximum resolution | 3840 x 2400 pixels |
| DisplayPort version | 1.2 |
| Connector contacts plating | Nickel |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | DisplayPort |
| Cable length | 7 m |
| Certificates | |
|---|---|
| Compliance certificates | RoHS, CE |
| Weight & dimensions | |
|---|---|
| Weight | 578 g |
| Cable diameter | 7.3 mm |
| Packaging data | |
|---|---|
| Package weight | 580 g |
| Package height | 53 mm |
| Package depth | 330 mm |
| Package width | 255 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case height | 280 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 330 mm |
| Harmonized System (HS) code | 84733080 |
