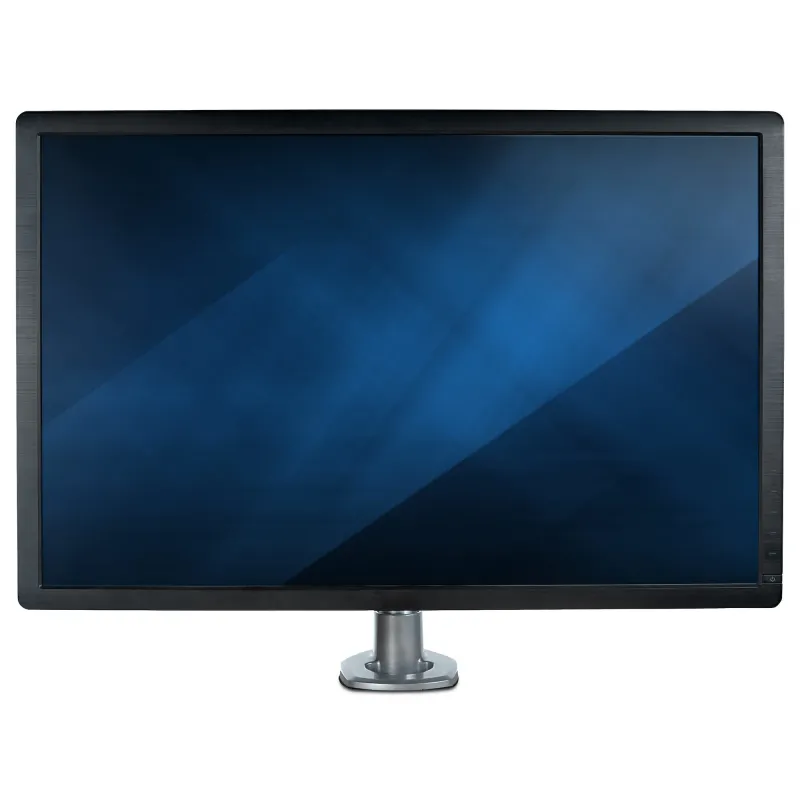

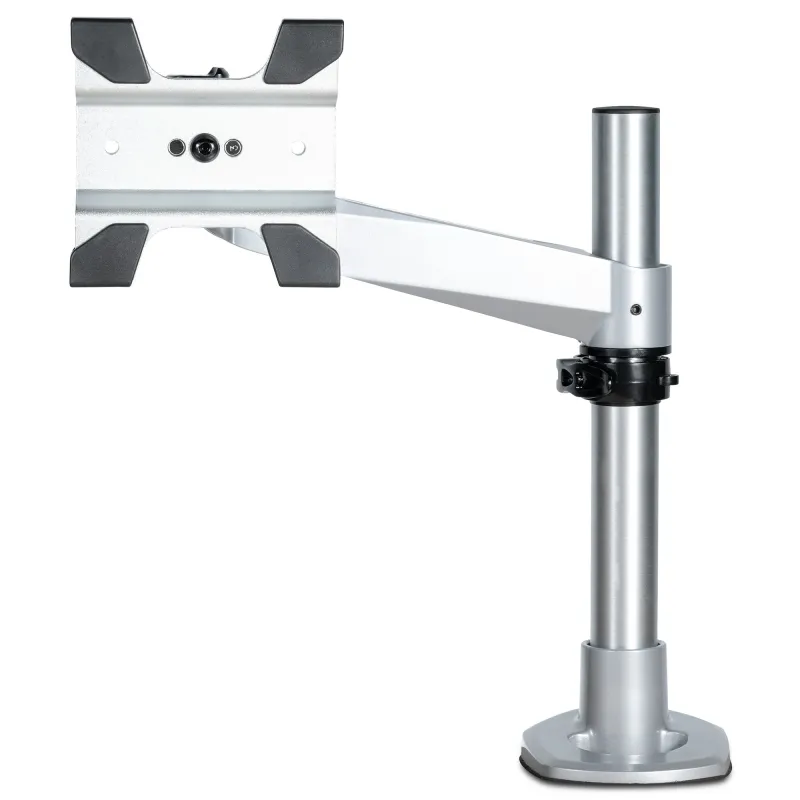

StarTech.com Desk Mount Monitor Arm – VESA or Apple iMac/Thunderbolt or Ultrawide Display up to 14kg – Articulating Height Adjustable Single Desktop Monitor Pole Mount – Clamp/Grommet
- HEAVY DUTY MONITOR ARM: VESA compatible (75×75/100x100mm) desk mount monitor arm for single large 30″ (16:9) or 49″ (32:9) ultrawide display up to 30.9lb/14kg; Articulating & height adjustable along pole
- APPLE DISPLAY COMPATIBILITY: Mount also supports Apple displays such as iMac/iMac Pro/Apple Cinema/Thunderbolt Display; Aluminum construction with metallic silver finish complements your workstation
- OPTIMAL VIEWING ANGLE: Ergonomic monitor mount with wide range of motion including +90°/-15° tilt, +/-90° swivel, 360° rotating screen (portrait/landscape), adjustable height along 6.3″ pole with swiveling arm that reaches out 8.3″ from base
- EASY INSTALLATION: Premium desktop computer monitor arm with toolless slide & click design makes assembling the monitor arm & VESA adapter easy; Pre-assembled desk clamp & pole; C-clamp/grommet
- ORGANIZED WORKSPACE: Desk mounted LCD/LED monitor arm with a cable management clip on the pole to organize cables & hold included articulation tension adjustment tool for a tidy setup
Monitor Mount | For up to 30lb VESA Mount, iMac, Apple Cinema and Thunderbolt Displays
Save space with this premium desk-mount monitor arm, by suspending your display above your desk. It supports a monitor up to 30″ (16:9) or up to 49″ (32:9 / ultrawide), with an articulating arm that makes it easy to adjust your screen.
Versatile Use
Use the single monitor desk mount to mount your VESA mount monitor (75×75, 100×100) up to 30″ (16:9) or up to 49″ (32:9 / ultrawide)). You can also mount your Apple Cinema Display, 24-inch iMac or 27-inch iMac, or Thunderbolt Display that came with a removable stand or built-in VESA mount adapter. The attractive silver finish complements Apple displays, making it ideal for customer-facing workstations.
Sleek and Stable Aluminum Design
Made of aluminum, the heavy-duty monitor arm provides stable support for your display, with a weight capacity of up to 30.9 lb. (14 kg).
Enjoy Optimum Viewing

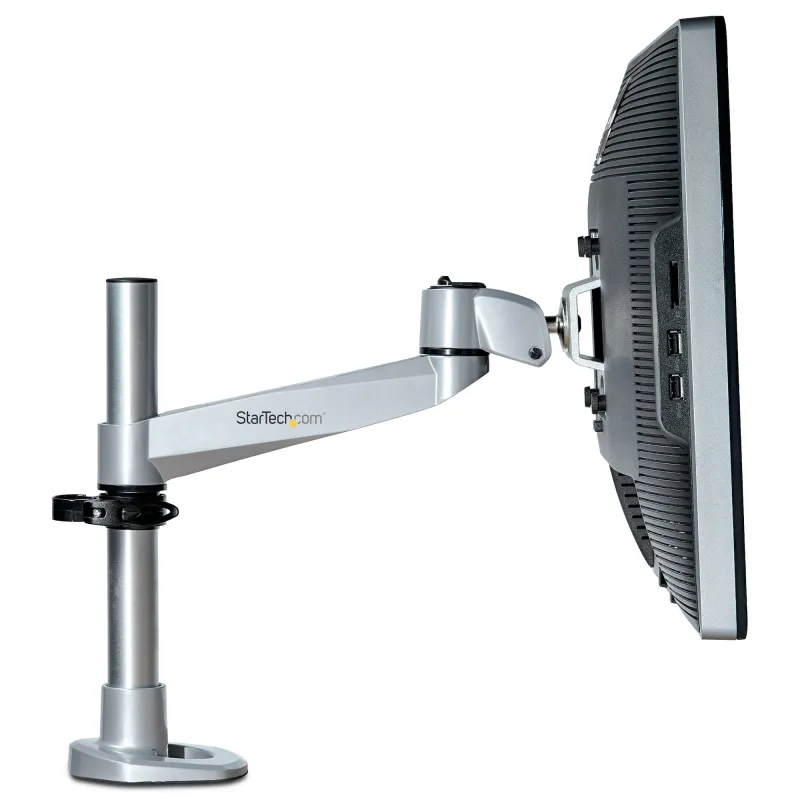

The arm extends 8.3″ (210 mm) to allow a wide range of motion. Move the monitor arm effortlessly side to side to adjust your screen position.
With its articulating arm, the monitor mount makes it easy to find the right viewing angle. Pan a full +180/-180 degrees left or right and tilt your display +90/-15 degrees to adjust the angle up or down. For landscape or portrait viewing, rotate your display 360 degrees.
Height Adjustment
Work in comfort. This height adjustable computer monitor arm lets you raise or lower the monitor arm along the pole, with a range of up to 7.87″ (200 mm).
Tool-less Assembly
Quick slide-and-click connections ensure easy assembly and save time when setting up multiple units. The computer screen mount gives you the option of desk-clamp or grommet-hole mounting. Hardware is included for all mounting options.
The TAA compliant ARMPIVOTB2 is backed by a StarTech.com 10-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Mounting | |
|---|---|
| Desk thickness (max) | 6 cm |
| Desk thickness (min) | 2 cm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp |
| Mounting type | Desk |
| Maximum screen size | 86.4 cm (34″) |
| Minimum screen size | 30.5 cm (12″) |
| Maximum weight capacity | 14 kg |
| Ergonomics | |
|---|---|
| Pan range | -180 – 180° |
| Angle of rotation | 360° |
| Tilt angle range | -15 – 90° |
| Design | |
|---|---|
| Housing material | Aluminium |
| Product colour | Silver |
| Weight & dimensions | |
|---|---|
| Weight | 2.5 kg |
| Height | 520 mm |
| Depth | 320 mm |
| Width | 320 mm |
| Packaging data | |
|---|---|
| Package weight | 3.2 kg |
| Package height | 145 mm |
| Package depth | 465 mm |
| Package width | 225 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of screws | 6 |
| Screws included | Yes |
| Wrench type | Hexagonal wrench |
| Wrench included | Yes |
| Other features | |
|---|---|
| Certification | CE, TAA, REACH |
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case height | 31 mm |
| Master (outer) case length | 700 mm |
| Master (outer) case width | 480 mm |
