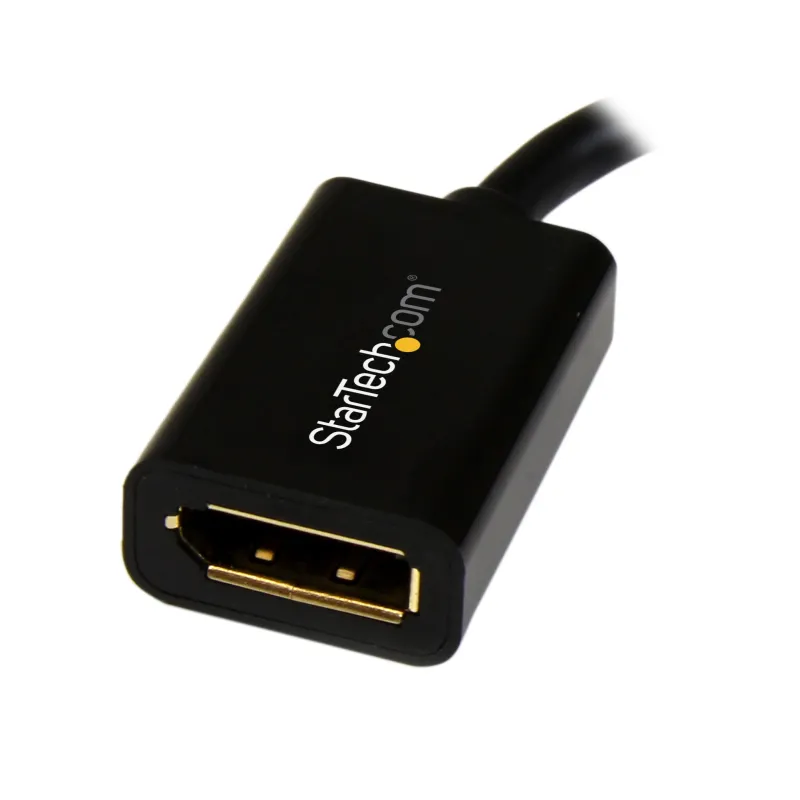

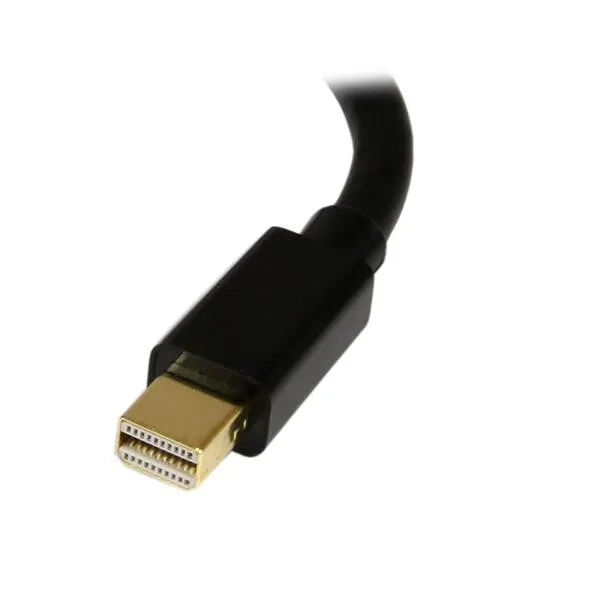

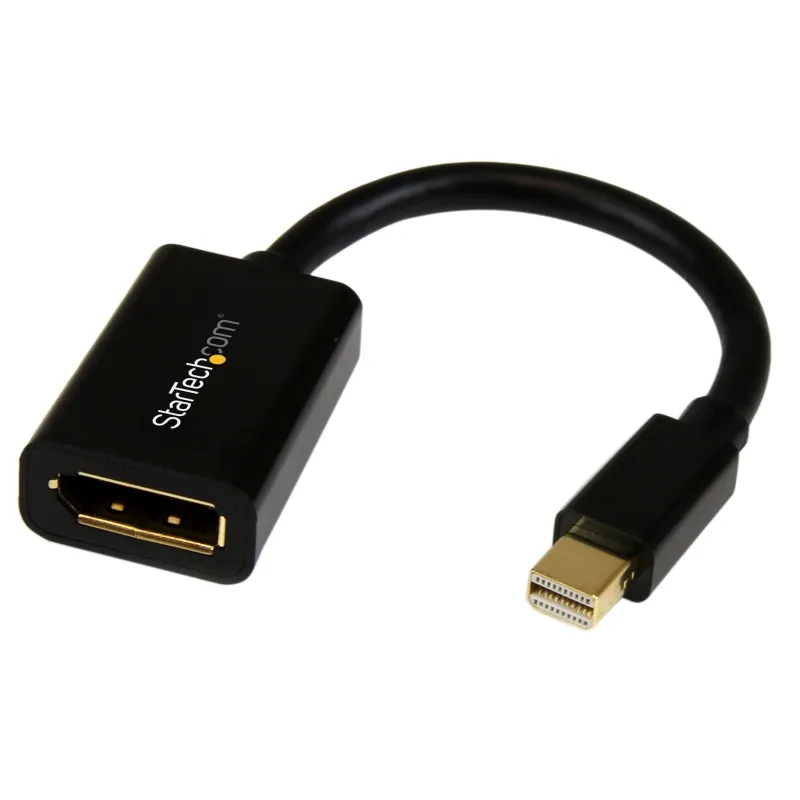

StarTech.com Mini DisplayPort to DisplayPort Adapter – 4K x 2K UHD Video – Mini DP to DP Converter – Mini DisplayPort to DisplayPort 1.2 Adapter – mDP PC/Computer to DP Monitor/Display
- MINI DISPLAYPORT to DISPLAYPORT 1.2 ADAPTER: mDP to DP adapter supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz); 6″ (15 cm) attached cable
- RELIABLE DESIGN: Mini DisplayPort to DisplayPort adapter has durable ABS connectors w/ flexible PVC strain relief & jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides added EMI shielding & noise imunity
- QUALITY CONSTRUCTION: 32AWG wire w/ gold-plated connectors for improved signal integrity/reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video/audio; Mini DP to DP converter backwards compatible w/DP1.1
- APPLICATIONS: Video adapter is ideal for home/office/boardroom/classroom works w/laptop (with Mini-DP port)/professional workstations w/ AMD FirePro™ W9100/8100, NVIDIA NVS 810/510 graphic card; UHD/4K monitor/projector/display; Microsoft Surface Pro 1-6
- SPECS: 6 inch (15 cm) / Black / DisplayPort v1.2 / Mini-DP Male to Standard DP Female adapter / 32 AWG / PVC cable jacket, ABS connector shell / Shield: Al-Mylar foil with Braid / Protocols: HBR 2, MST, GTC / Lifetime Warranty
Connect your DisplayPort® monitor to a standard Mini DisplayPort source
The MDP2DPMF6IN Mini DisplayPort to DisplayPort video cable adapter allows you to add a standard DisplayPort connection port to your existing mini Displayport equipped laptop. Easy to use and install, this cost-effective solution makes it easy for you to go from Mini DP to DP, in order to get the most from your Mini DisplayPort device.
Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
The StarTech.com Advantage
| Features |
| Number of conductors |
20 |
| Multi-Stream Transport (MST) |
Yes |
| Plug and Play |
Yes |
| Bandwidth |
21600 MB/s |
| AWG wire size |
32 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable shielding |
Aluminum mylar foil |
| Cable rating |
CMG (CM) |
| Product colour |
Black |
| Maximum refresh rate |
120 Hz |
| Supported graphics resolutions |
2560 x 1600 (WQXGA), 3840 x 2400 |
| Maximum resolution |
3840 x 2400 pixels |
| DisplayPort version |
1.2 |
| Connector contacts plating |
Nickel |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Connector 2 |
DisplayPort |
| Connector 1 |
Mini DisplayPort |
| Cable length |
0.1524 m |
| Certificates |
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
| Weight |
19 g |
| Cable diameter |
5 mm |
| Packaging data |
| Package weight |
24 g |
| Package height |
15 mm |
| Package depth |
227 mm |
| Package width |
126 mm |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Products per master (outer) case |
300 pc(s) |
| Master (outer) case height |
270 mm |
| Master (outer) case length |
414 mm |
| Master (outer) case width |
375 mm |
| Harmonized System (HS) code |
84733080 |
