StarTech.com PCIe Card with Serial and Parallel Port – PCI Express Combo Adapter Card with 1x DB25 Parallel Port & 1x RS232 Serial Port – Expansion/Controller Card – PCIe Printer Card
- PCIe CARD WITH SERIAL & PARALLEL PORT: Using a x1 PCIe 2.0 slot, add a DB25 parallel & a DB9 RS232 port to your computer; Card installs in full/standard profile PCIe slot; Latest version of our popular PEX1S1P952
- TECH SPECS: Parallel Speeds up to 2.5Mbps
- Supports SPP/Byte/ECP modes
- Compatible with IEEE 1284
- Asix AX99100 chip
- RS232 speeds up to 921.6Kbps
PCI-Express 2.0 | RS-232 Serial | IEEE 1284 Parallel | Lifetime Warranty

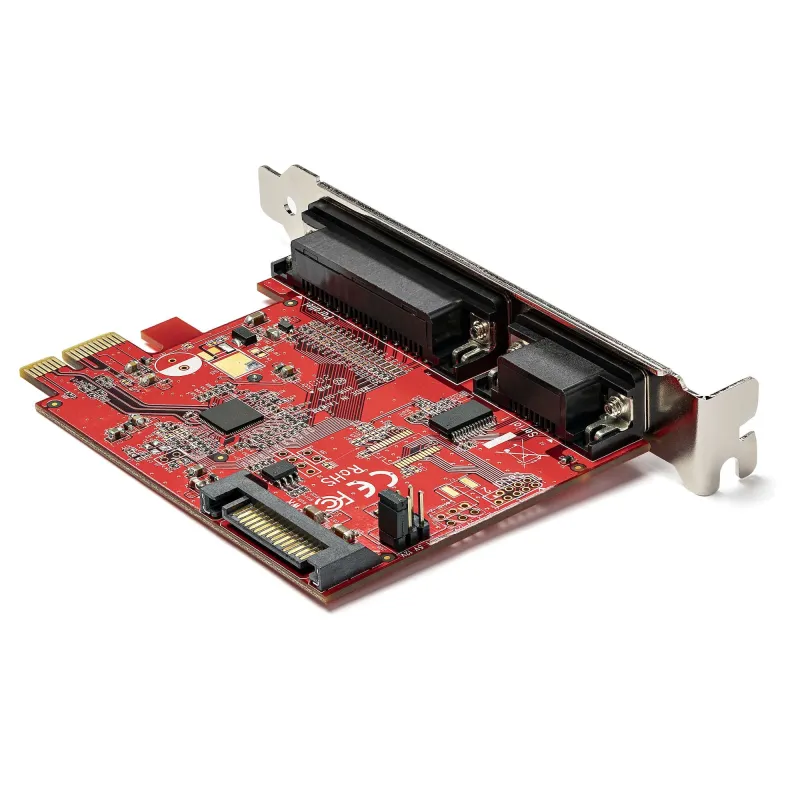

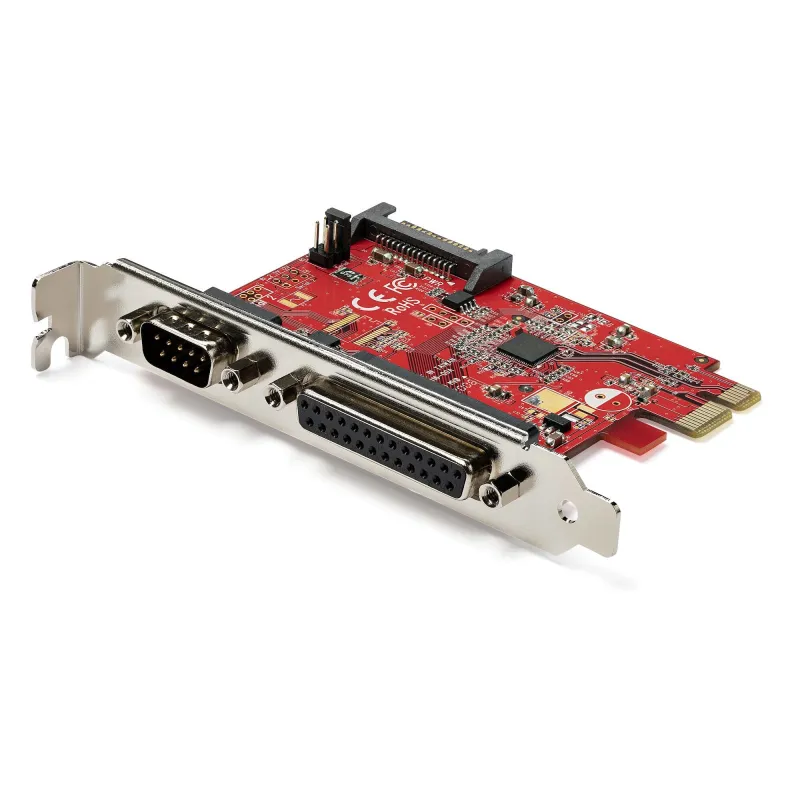

This PCIe Parallel and Serial Combo Card installs into a single PCI-Express x1 slot in your computer, and adds a DB25 IEEE 1284 parallel port and DB9 RS 232 serial port to your system. The PEX1S1P950 is the latest version of our popular PEX1S1P952 combo card.
Adds an LPT Parallel Port
The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.
Adds a COM Serial Port

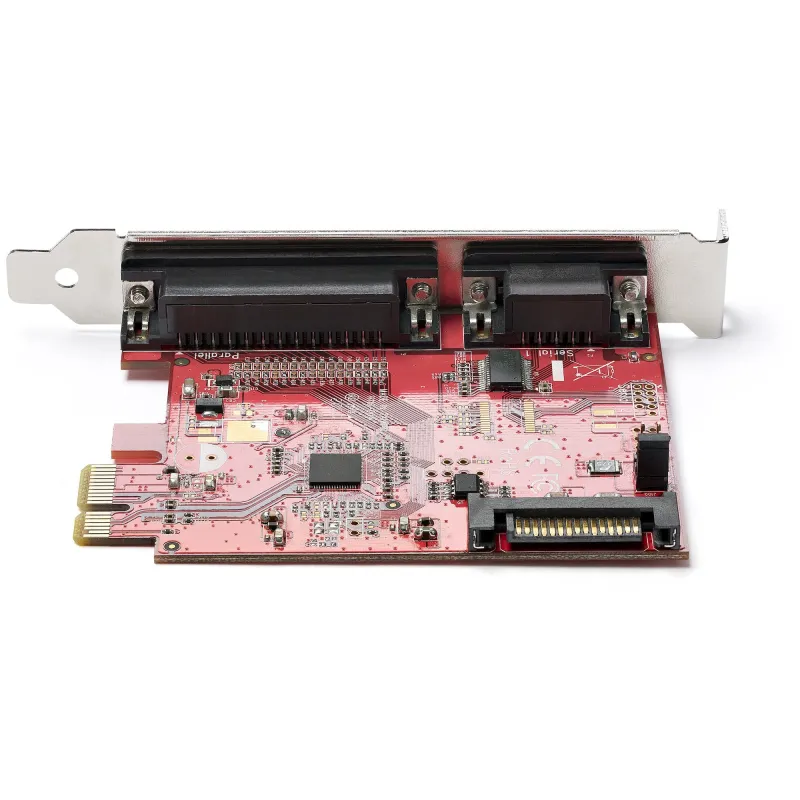

The Asix AX99100 chip also enables you to connect a DB9 device using the same controller card, compatible with industry standard 16950 UART. The serial port is ideal for connecting point of sale terminals, serial printers, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners and oscilloscopes. The serial (COM) port supports bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit. The card also features an optional SATA power input that enables you to add power to pin 9 on the serial port, and adjusted the power output between 5V and 12V using a jumper on the PCB.
Wide Installation Compatibility
This add-on card installs in a full/standard-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (7 or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).
PEX1S1P950 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals’ choice for over 30 years.
The StarTech.com Advantage
– PCIe CARD WITH SERIAL & PARALLEL PORT: Using a x1 PCIe 2.0 slot, add a DB25 parallel & a DB9 RS232 port to your computer; Card installs in full/standard profile PCIe slot; Latest version of our popular PEX1S1P952
– TECH SPECS: Parallel Speeds up to 2.5Mbps
– Supports SPP/Byte/ECP modes
| Ports & interfaces | |
|---|---|
| Parallel ports quantity | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Expansion card standard | PCIe 2.0 |
| Output interface | Parallel, Serial |
| Host interface | PCIe |
| Design | |
|---|---|
| Mean time between failures (MTBF) | 3188058 h |
| Product colour | Red |
| Internal | Yes |
| Features | |
|---|---|
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Parity bit | Even, Mark, No, Odd, Space |
| Stop bits | 1, 1.5, 2 |
| Data bits | 5, 6, 7, 8, 9 |
| FIFO (First In, First Out) | 256 B |
| Baud rate | 921.6 Kbit/s |
| Chipset | Asix – AX99100 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 15 – 90% |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | -40 – 85 °C |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 63 g |
| Height | 22 mm |
| Depth | 80 mm |
| Width | 95 mm |
| Packaging data | |
|---|---|
| Package weight | 127 g |
| Package height | 30 mm |
| Package depth | 142 mm |
| Package width | 170 mm |
| Logistics data | |
|---|---|
| Master (outer) case height | 310 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 380 mm |
| Products per master (outer) case | 60 pc(s) |
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Data transfer rate | 2.5 Mbit/s |
