StarTech.com Port multiplier controller card – 5-port SATA to single SATA III
- Internal
- Host interface: SATA
- Output interface: SATA
- 6 Gbit/s
- Aluminium, Black, Green
Connect five SATA drives to a single internal SATA 6Gbps host connection

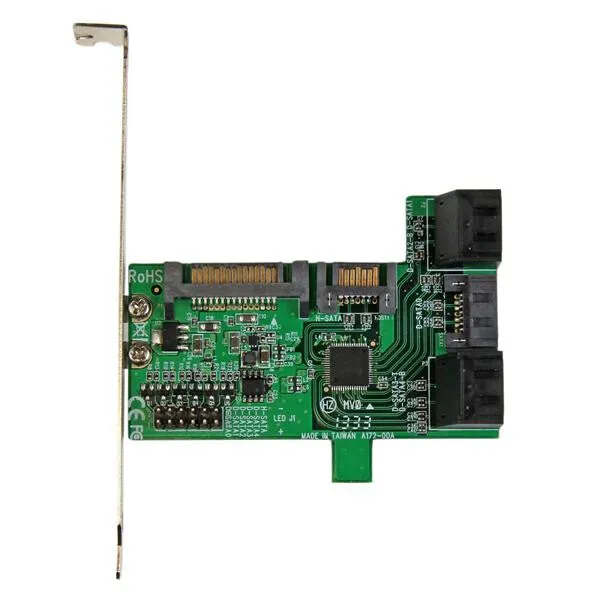

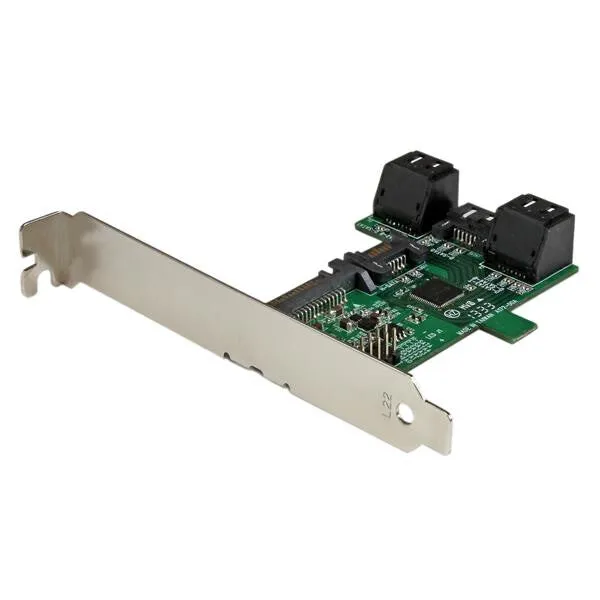

The ST521PMINT 1-to-5 SATA drive port multiplier lets you connect five individual SATA hard drives to a single SATA host controller, vastly increasing the storage capacity of your computer system.
The ST521PMINT optimizes port usage enabling you to connect up to five SATA drives to a single SATA port. To ensure maximum performance the SATA port multiplier supports SATA III host controllers and hard drives, with transfer speeds up to 6 Gbps, so you can experience fast performance, even with 5 individual drives connected.
For a hassle-free installation, you can mount the adapter into any new or legacy desktop expansion slot, including: PCI, AGP, and PCIe. To ensure compatibility with most computer cases, full-profile and low-profile mounting brackets are included. The HDD adapter also includes HDD activity LED headers, so you can connect your computer case LEDs to the card for full activity reporting.
The ST521PMINT is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
The StarTech.com Advantage
– Increase the storage capacity of your computer system by connecting five SATA hard drives (HDD) or solid-state drives (SSD) to a single SATA connector
– Maximize performance, with file transfer speeds up to 6 Gbps with support for SATA III host connections

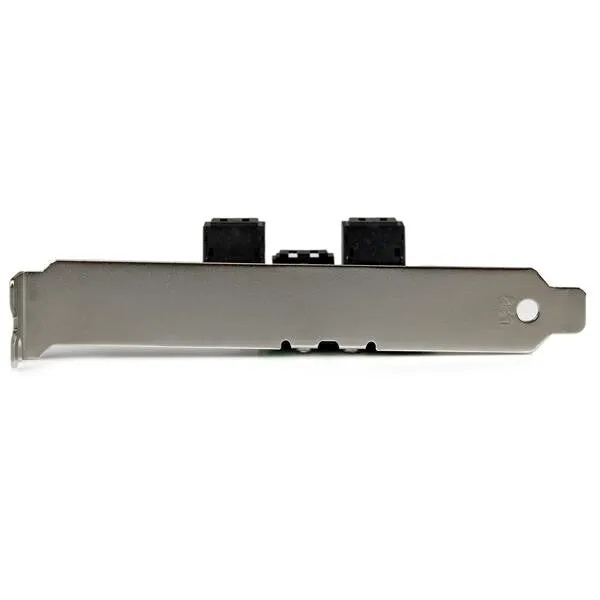

– Ensures installation compatibility with a wide range of computer systems with included low-profile (half-height), and full-profile brackets
| Ports & interfaces | |
|---|---|
| Port multiplier | Yes |
| Internal SATA ports quantity | 5 |
| SATA revision | 3.0 |
| Output interface | SATA |
| Host interface | SATA |
| Design | |
|---|---|
| Certification | CE, FCC |
| Product colour | Aluminium, Black, Green |
| Internal | Yes |
| Features | |
|---|---|
| Data transfer rate (max) | 6 Gbit/s |
| Chipset | JMB575A |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating temperature (T-T) | 5 – 50 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 43 g |
| Height | 120 mm |
| Depth | 93 mm |
| Width | 18 mm |
| Packaging data | |
|---|---|
| Package weight | 163 g |
| Package height | 30 mm |
| Package depth | 172 mm |
| Package width | 142 mm |
| Manual | Yes |
| Mounting brackets included | Yes |
| Cables included | SATA |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
