Tekwarm Foiled 400 KPA UFH Board | 1200mm x 600mm x 20mm
Elevate your underfloor heating system with the Tekwarm Foiled 400 KPA UFH Board, meticulously designed for superior thermal performance and ease of installation. Perfect for both new builds and retrofit projects, this board ensures efficiency and longevity.

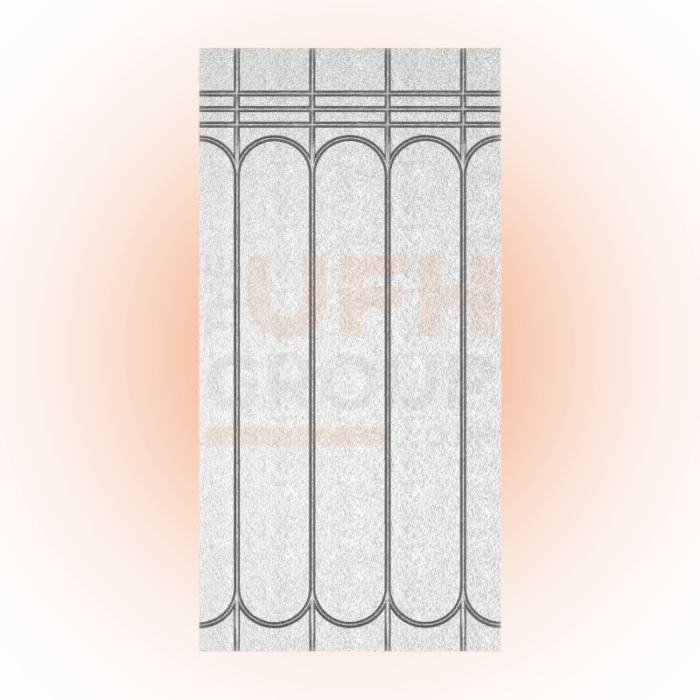

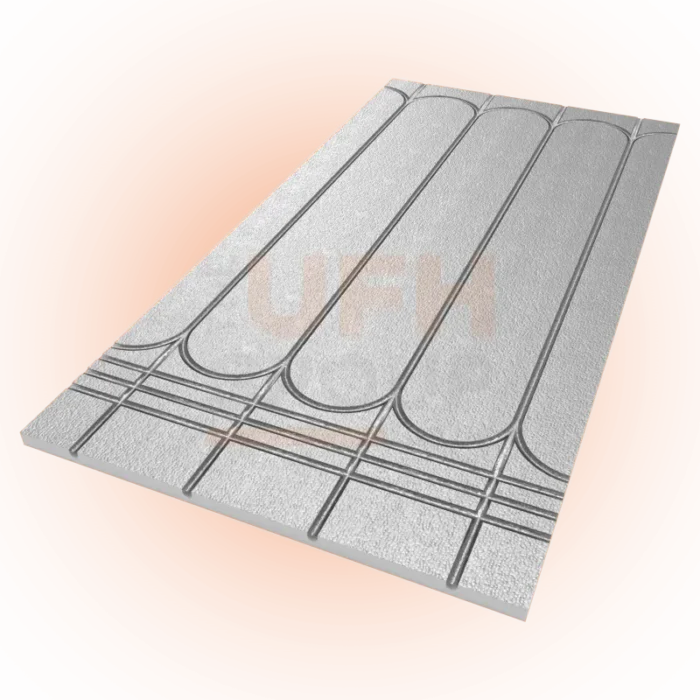

The Tekwarm Foiled 400 KPA UFH Board features a robust 400 KPA grade Expanded Polystyrene (EPS) insulation, routed on one side for quick and precise pipe installation. Measuring 1200mm x 600mm x 20mm, it seamlessly integrates into your underfloor heating setup, accommodating both 12mm and 16mm diameter pipes with grooves spaced at 150mm or 200mm centres.
This board boasts a TFF (Top Foil Faced) finish, ensuring the foil overlay remains flat and does not intrude into the grooves, facilitating a streamlined installation process. Manufactured from environmentally responsible materials, the board is free from CFC and HCFC, featuring a zero Global Warming Potential (GWP) and low Ozone Depletion Potential (ODP).
Features
- High Compressive Strength: 400 KPA grade EPS insulation provides superior durability.
- TFF Finish: Enhances thermal reflection and eases pipe installation.
- Versatile Dimensions: 1200mm x 600mm x 20mm, ideal for various installation types.
- Environmental Responsibility: CFC and HCFC free EPS, zero GWP, low ODP.
- Durable and Reliable: Rot-proof, mould, and fungi resistant, designed to last the building’s lifespan.
Specifications
| Feature | Specification |
|---|---|
| Material | 400 KPA Grade Expanded Polystyrene (EPS) |
| Finish | Top Foil Faced (TFF) |
| Compatibility | 12mm & 16mm UFH pipes |
| Panel Size | 1200mm x 600mm |
| Thickness | 20mm |
| Groove Centres | 150mm or 200mm |
| Environmental Impact | Zero GWP, low ODP |
| Durability | Rot-proof, mould and fungi resistant |
| Installation | Suitable for solid ground floors with DPM |
| Suitability | New build or retrofit installations |
Why You Should Buy
Opt for the Tekwarm Foiled 400 KPA UFH Board to enjoy a superior underfloor heating solution that combines high thermal efficiency with easy installation and environmental sustainability. Its robust construction ensures long-term durability, making it an excellent choice for both residential and commercial projects.
Installation & Application
Please find installation guides below

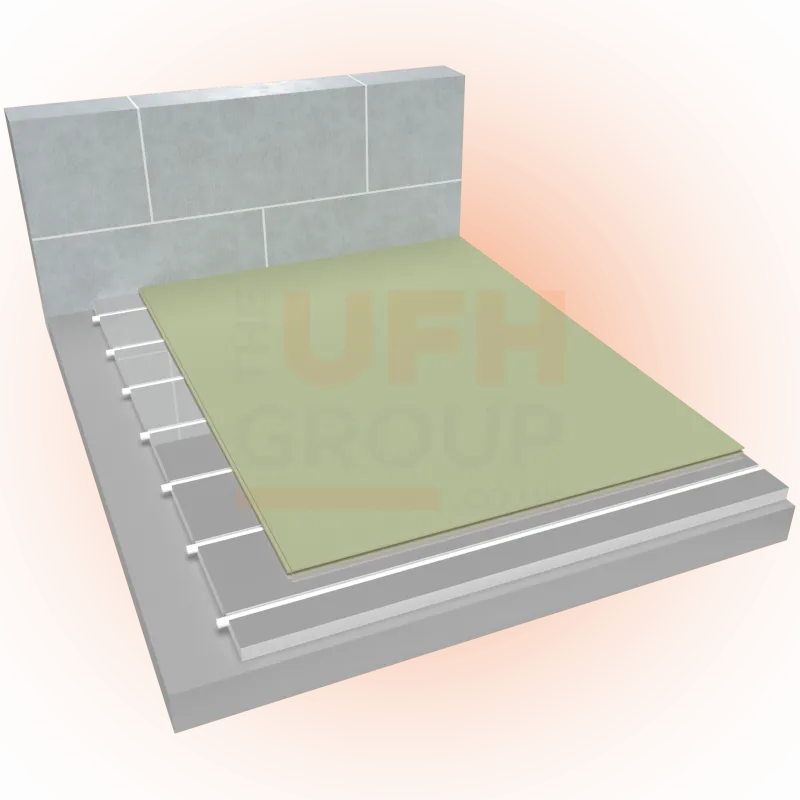

EPS Over Concrete Base
EPS Over Timber Base
Environmental Commitment
Tekwarm’s commitment to sustainability is evident in the eco-friendly design of these boards, which boast a zero Global Warming Potential (GWP) and low Ozone Depletion Potential (ODP). Choosing Tekwarm means choosing a product that supports a greener planet.
Frequently Asked Questions (FAQs)
Q: What is the size of the Tekwarm Foiled 400 KPA UFH Board?
A: The board measures 1200mm x 600mm with a thickness of 20mm.
Q: Is the Tekwarm Foiled 400 KPA UFH Board suitable for retrofit installations?
A: Yes, the board is ideal for both new build and retrofit installations, providing flexibility for various projects.
Q: What type of insulation material is used in the Tekwarm Foiled 400 KPA UFH Board?
A: The board is made from 400 KPA grade Expanded Polystyrene (EPS), known for its high compressive strength and durability.
Q: How does the TFF (Top Foil Faced) finish benefit the installation process?
A: The TFF finish ensures the foil overlay remains flat and does not enter the grooves, facilitating a streamlined and efficient pipe installation process.
Q: What pipe sizes and groove centres are compatible with the Tekwarm Foiled 400 KPA UFH Board?
A: The board can accommodate 12mm and 16mm diameter underfloor heating pipes with groove centres at 150mm or 200mm.
Q: Is the Tekwarm Foiled 400 KPA UFH Board environmentally friendly?
A: Yes, the board is manufactured from CFC and HCFC free EPS, featuring zero Global Warming Potential (GWP) and low Ozone Depletion Potential (ODP).
Q: Can the Tekwarm Foiled 400 KPA UFH Board be used on different types of floors?
A: Yes, it can be installed over solid ground floors with a suitable Damp Proof Membrane (DPM) and can adapt to other substrates when fully supported.
Q: How durable is the Tekwarm Foiled 400 KPA UFH Board?
A: The board is designed to last the lifespan of the building without any loss in thermal performance. It is also rot-proof and resistant to mould and fungi.
Q: Are there other routed pipe layouts and patterns available?
A: Yes, other layouts and patterns are available. Please contact us for further details.
Q: What is the compressive strength of the Tekwarm Foiled 400 KPA UFH Board?
A: The board has a high compressive strength of 400 KPA, making it robust and durable for various applications.
