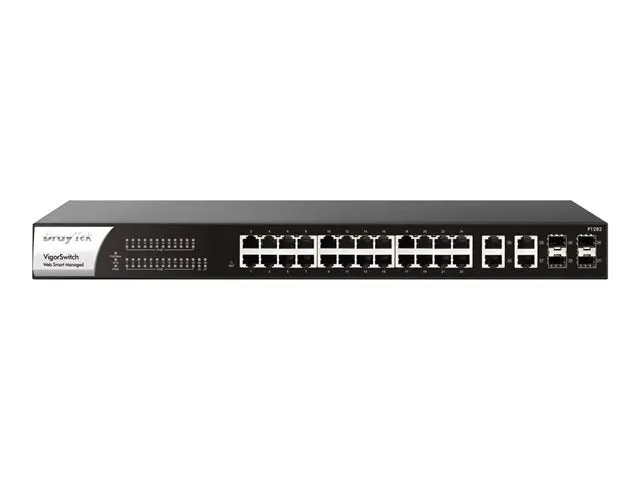

TieDex UK Draytek VigorSwitch P1282 – switch – 28 ports – smart – rack-mountable
Draytek VigorSwitch P1282 – Switch – smart – 24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP/RJ-45 – rack-mountable – PoE+ (400 W)
Basic Specifications
- Manufacturer’s Part Number
- VSP1282-K
- EAN
- 4710484744296
- Manufacturer Warranty
- 2-year warranty
- Weight
- 4.3 kg
- Product Description
- Draytek VigorSwitch P1282 – switch – 28 ports – smart – rack-mountable
- Model
- Draytek VigorSwitch P1282
- Dimensions (WxDxH)
- 44.1 cm x 28.1 cm x 4.4 cm
- Localisation
- United Kingdom
- Features
- Flow control, firewall protection, auto-negotiation, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, WRR queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, ACL support, QoS, reset button, IPv4 support, LLDP support, DHCP client, SPQ, loop prevention, port isolation, CoS, tagged VLAN, ONVIF support, cloud managed, 2 fans, cable test, IP source guard, ARP inspection, Link Aggregation, IGMP querier, DNS client, Voice VLAN, ingress rate limiting, EEE, MAC based VLAN, port-based VLAN, egress rate limiting, 4.1Mbit packet buffer, loop detection
- Power
- AC 100-240 V
- Device Type
- Switch – 28 ports – smart
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Capacity
- Virtual interfaces (VLANs): 4096
- Performance
- Switching capacity: 56 Gbps ¦ Forwarding rate (64-byte packets): 41.7 Mpps
- Enclosure Type
- Rack-mountable 1U
- MAC Address Table Size
- 8K entries
- Subtype
- Gigabit Ethernet
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
- Jumbo Frame Support
- 9KB
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP/RJ-45
- PoE Budget
- 400 W
- Power Over Ethernet (PoE)
- PoE+
General
- Device Type
- Switch – 28 ports – smart
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP/RJ-45
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 400 W
- Performance
- Switching capacity: 56 Gbps ¦ Forwarding rate (64-byte packets): 41.7 Mpps
- Capacity
- Virtual interfaces (VLANs): 4096
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
- Features
- Flow control, firewall protection, auto-negotiation, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, WRR queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, ACL support, QoS, reset button, IPv4 support, LLDP support, DHCP client, SPQ, loop prevention, port isolation, CoS, tagged VLAN, ONVIF support, cloud managed, 2 fans, cable test, IP source guard, ARP inspection, Link Aggregation, IGMP querier, DNS client, Voice VLAN, ingress rate limiting, EEE, MAC based VLAN, port-based VLAN, egress rate limiting, 4.1Mbit packet buffer, loop detection
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Port status, power, system, PoE
Dimensions & Weight
- Width
- 44.1 cm
- Depth
- 28.1 cm
- Height
- 4.4 cm
- Weight
- 4.3 kg
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- RoHS
- Localisation
- United Kingdom
Manufacturer Warranty
- Service & Support
- Limited warranty – 2 years
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45 PoE+ – 30 W ¦ 4 x Gigabit LAN SFP ¦ 4 x 1000Base-T RJ-45
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 100-240 V
- Power Consumption Operational
- 450 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 10 – 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
