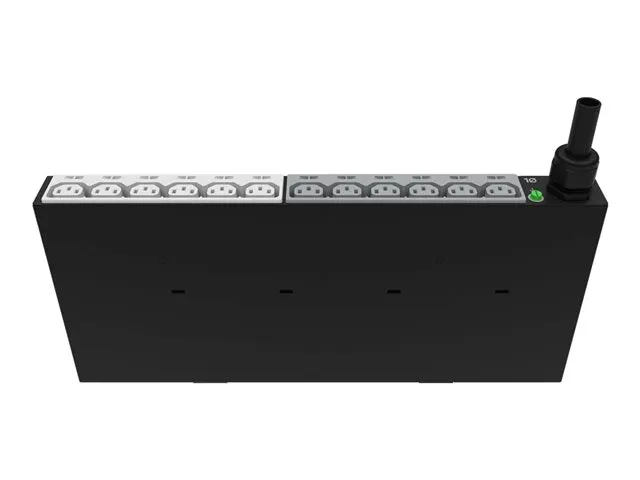

TieDex UK HPE G2 Basic Vertical Half-Height – power distribution unit – 3600 VA
HPE G2 Basic Vertical Half-Height – Power distribution unit (rack-mountable) – AC 100-240 V – 3600 VA – 1-phase – input: IEC 60320 C20 – output connectors: 22 (power IEC 60320 C13, IEC 60320 C19) – Worldwide – for P/N: Q9Y46A, Q9Y46AR
Basic Specifications
- Manufacturer’s Part Number
- P9Q38A
- EAN
- 4549821014361
- Designed For
- P/N: Q9Y46A, Q9Y46AR
- Weight
- 2.04 kg
- Product Description
- HPE G2 Basic Vertical Half-Height – power distribution unit – 3600 VA
- Model
- HPE G2 Basic Vertical Half-Height
- Dimensions (WxDxH)
- 5.2 cm x 5.3 cm x 81.7 cm
- Localisation
- Worldwide
- Input Connectors
- 1 x power IEC 60320 C20
- Device Type
- Power distribution unit – rack-mountable
- Output connectors
- 20 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
- Input Wiring
- 1-phase
- Input Voltage
- AC 100-240 V
- Included Accessories
- Tie wraps
- Power Capacity
- 3600 VA
Compatibility Information
- Designed For
- P/N: Q9Y46A, Q9Y46AR
General
- Device Type
- Power distribution unit – rack-mountable
- Localisation
- Worldwide
Dimensions & Weight
- Width
- 5.2 cm
- Depth
- 5.3 cm
- Height
- 81.7 cm
- Weight
- 2.04 kg
Miscellaneous
- Included Accessories
- Tie wraps
- Rack Mounting Kit
- Included
- Compliant Standards
- CSA, UL, DEMKO, CB, WEEE, KC, EAC
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 60 °C
- Humidity Range Operating
- 10 – 90%
Power Device
- Input Voltage
- AC 100-240 V
- Input Wiring
- 1-phase
- Input Connectors
- 1 x power IEC 60320 C20
- Power Output Connectors Details
- 20 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
- Max Electric Current
- 16 A
- Power Capacity
- 3600 VA
