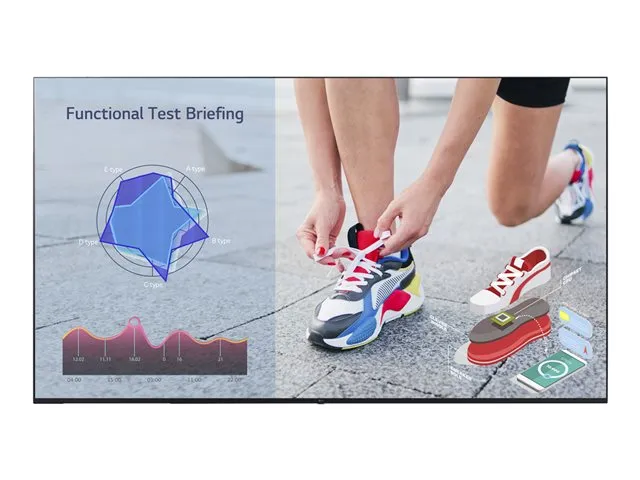

TieDex UK LG 86UL3J UL3J Series – 86″ LED-backlit LCD display – 4K – for digital signage
LG 86UL3J – 86″ Diagonal Class UL3J Series LED-backlit LCD display – digital signage – webOS – 4K UHD (2160p) 3840 x 2160 – ashed blue
Basic Specifications
- Manufacturer’s Part Number
- 86UL3J
- EAN
- 8806091356673
- Product Type
- LED-backlit LCD flat panel display
- Product Description
- LG 86UL3J UL3J Series – 86″ LED-backlit LCD display – 4K – for digital signage
- HDMI Ports Qty
- 3 ports
- LCD Backlight Technology
- LED backlight
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Power Consumption Operational
- 220 Watt
- Model
- LG 86UL3J
- Dimensions (WxDxH) – without stand
- 192.7 cm x 5.99 cm x 110.4 cm
- Display Format
- 4K UHD (2160p)
- USB
- 2 ports
- Diagonal Class
- 86″
- Video Interface
- HDMI
- Commercial Use
- Digital signage
- Environmental Standards
- ENERGY STAR Qualified
- Voltage
- AC 100-240 V (50/60 Hz)
- Technology
- IPS
- Colour
- Ashed blue
- TV Tuner
- No tuner
- Weight
- 45.2 kg
- Display Resolution
- 4K Ultra HD (2160p)
- Connectivity
- Wi-Fi, LAN
- Platform
- webOS
- Picture Enhancements
- DCI 80% Colour Gamut
- Commercial Features
- LG SuperSign Media Editor, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, SuperSign WB compatible, LG ConnectedCare, LG One:Quick Share compatible
- Included Accessories
- Remote control, cable holder
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 80%
Remote Control
- Type
- Remote control
- Battery Included
- Yes
- Battery Included Qty
- 2
Audio System
- Features
- Built-in speaker
Stands & Mounts
- Flat Panel Mount Interface
- 600 x 400 mm
- VESA Compatibility
- Yes
Media Player
- USB Port
- Yes
- USB Ports Qty
- 2
Connections
- Connector Type
- 3 x HDMI input ¦ LAN input ¦ 2 x USB 2.0 ¦ Audio line-out ¦ RS-232C input/output
Display
- LCD Display Technology
- IPS
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- LCD Backlight Technology
- LED backlight
- Image Contrast Ratio
- 1200:1
- Dynamic Contrast Ratio
- 1000000:1
- Brightness
- 330 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Response Time
- 5 ms
- Commercial Features
- LG SuperSign Media Editor, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, SuperSign WB compatible, LG ConnectedCare, LG One:Quick Share compatible
- Operation Hours / Days
- 16 / 7
- Features
- Crestron Connected Compatible, wireless access point
General
- Product Type
- LED-backlit LCD flat panel display
- Power Consumption (Max)
- 300 Watt
- Power Consumption Operational
- 220 Watt
- Diagonal Class
- 86″
- Commercial Use
- Yes – digital signage
- Series
- UL3J Series
- Platform
- webOS
- Operating System
- webOS 6.0
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Video Interface
- HDMI
- HDMI Ports Qty
- 3 ports
- Modes
- Portrait mode
- Picture Enhancements
- DCI 80% Colour Gamut
- Design
- Slim Design
- Dimensions
- Without stand
- Width
- 192.7 cm
- Depth
- 5.99 cm
- Height
- 110.4 cm
- Weight
- 45.2 kg
- Enclosure Colour
- Ashed blue
Miscellaneous
- Included Accessories
- Cable holder
- Cables Included
- Serial adapter
- Compliant Standards
- FCC Class A certified, CB, EMC, ERP, NRTL, HDCP 2.2, HDCP 1.4
Power
- Power Device
- Power supply
- Input Voltage
- AC 100-240 V (50/60 Hz)
- Power Consumption (Off Mode)
- 0.5 Watt
- Heat Generation Details
- Cabinet – typical – 751 BTU/h ¦ Cabinet – max – 1024 BTU/h
Dimensions & Weight (Shipping)
- Width (Shipping)
- 211.5 cm
- Depth (Shipping)
- 22.8 cm
- Height (Shipping)
- 121.5 cm
Network & Internet Multimedia
- Connectivity
- Wi-Fi, LAN
Sustainability Information
- ENERGY STAR Certified
- Yes
