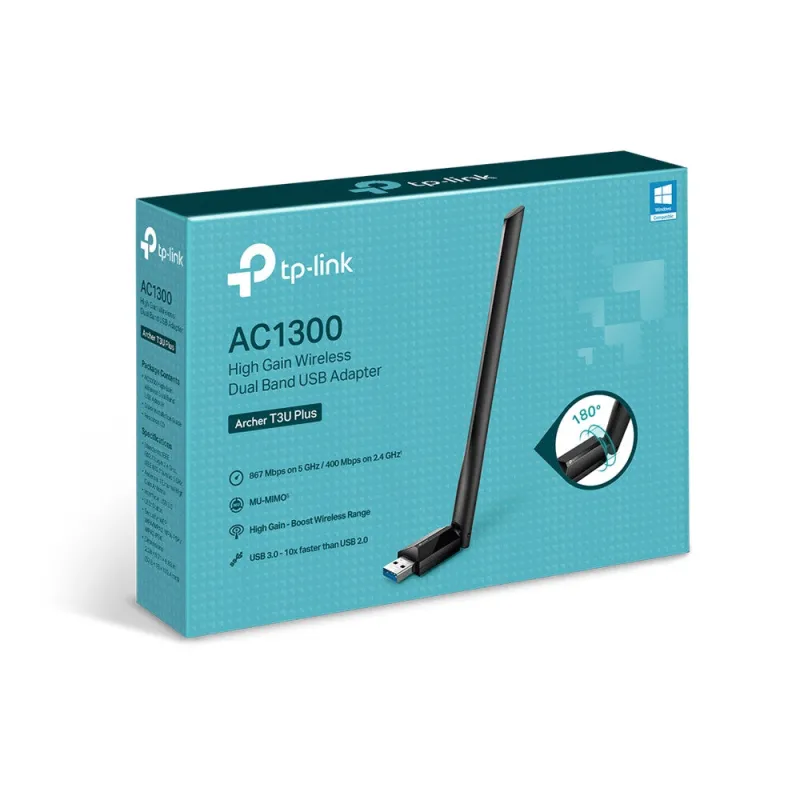

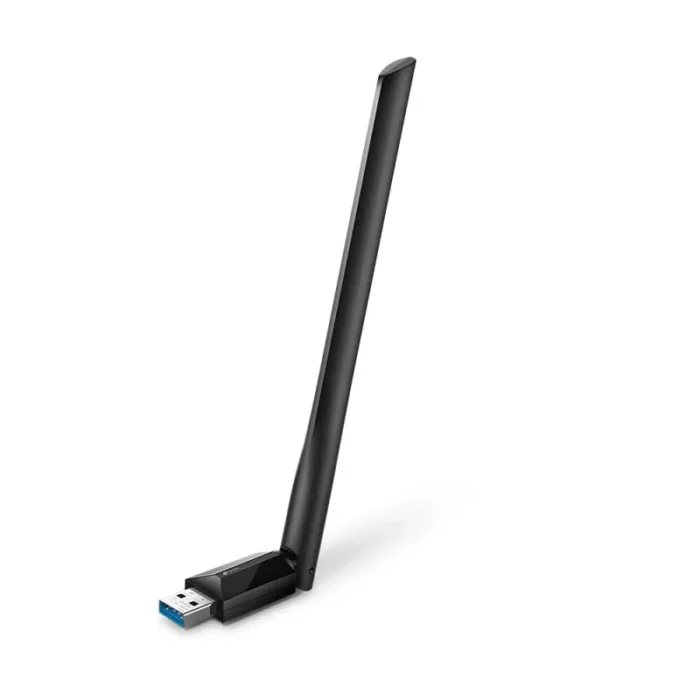

TP-Link AC1300 High Gain Wireless Dual Band USB Adapter
- AC1300 Lightning-Fast Speed — AC1300 (867 Mbps on the 5 GHz band or 400 Mbps on the 2.4 GHz band) dual-band Wi-Fi to ensure all your devices run at full speed
- MU-MIMO Technology — Improves the throughput and efficiency of the whole network with MU-MIMO technology
- Dual-Band Wireless — The 2.4 GHz and 5 GHz bands provide flexible connectivity, giving your devices access to the latest dual-band Wi-Fi router for faster speed and extended range
- High-Gain Antennas — Advanced external high-gain antennas greatly enhance the reception and transmission signal strength of the USB adapter
- Supports the Latest Operating Systems — Fully compatible with Windows 10/8.1/8/7/XP and macOS
Higher Speeds, Better Connections
The Archer T3U Plus receives Wi-Fi signals on two separate bands for all your online needs. Choose the 2.4 GHz band for up to 400 Mbps of surfing, emailing, and social media, or switch to 5 GHz for up to 867 Mbps of gaming, HD streaming, and large file downloads.
Distinguished Antennas Architecture
With an advanced serial high-gain antenna structure, the Archer T3U Plus is able to maximize data transmission and reception efficiency, greatly increase reception range and provide a stable Wi-Fi connection throughout your home.
Boosted Throughput with MU-MIMO
MU-MIMO technology provides two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.
Adjustable, Multi-Directional Antenna
Rotate and adjust the multi-directional antenna to improve user experience and performance in different environments.
| Ports & interfaces | |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Interface | WLAN |
| Host interface | USB |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| Bandwidth (first) | 2.4 GHz |
| Bandwidth (second) | 5 GHz |
| Full duplex | Yes |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| WLAN data transfer rates supported | 11,54,300,400,867 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Frequency range | 2.4 – 5 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 867 Mbit/s |
| Design | |
|---|---|
| Certification | FCC, CE, RoHS |
| LED indicators | Status |
| Plug and Play | Yes |
| Antenna | Yes |
| Antenna design | External |
| Product colour | Black |
| Component for | PC/Laptop |
| Internal | No |
| Power | |
|---|---|
| USB powered | Yes |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 173.4 mm |
| Depth | 18.2 mm |
| Width | 57.8 mm |
| Packaging data | |
|---|---|
| Package weight | 150 g |
| Package height | 42 mm |
| Package depth | 148 mm |
| Package width | 207 mm |
| Package type | Box |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Other features | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
| Antennas quantity | 2 |
