TP-Link AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit
- 1300 Mbit/s 300 m
- Gigabit Ethernet
- Wi-Fi Wi-Fi 5 (802.11ac)
- Built-in power socket
- White
Wall-Piercing Wi-Fi Extended to Every Outlet

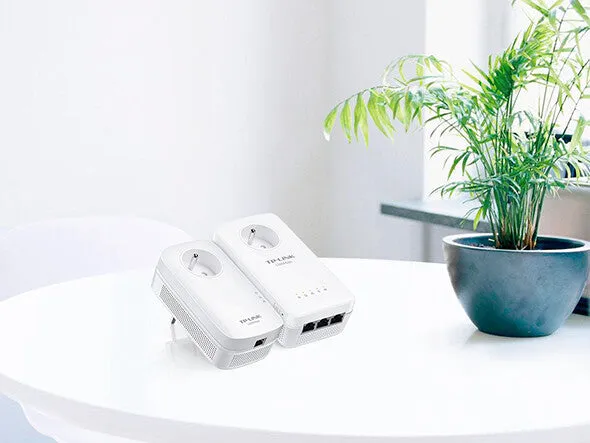

AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit
Enjoy Stable, Seamless OneMesh™ Wi-Fi
Bothered by dropped connections while moving around your home?
With the newest OneMeshTM technology, the kit works with your existing OneMeshTM router to form a unified Mesh network. No more switching Wi-Fi network names, enjoy uninterrupted streaming and truly seamless AC1200 Wi-Fi.
2×2 MIMO Technology for Efficient Transmissions
More Stable Connections
2×2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connections for you to enjoy higher speeds and greater stability.
Enhanced Long-Distance Performance
2×2 MIMO with Beamforming technology also offers the benefit of improved coverage throughout the home, particularly for previously hard-to-reach outlets.
One Tap for a Unified Network
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.
Wi-Fi Auto-Sync
Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.
Plug and Play in Seconds!
Plug TL-PA8010P in the wall and connect it to the router. Then plug TL-WPA8631P into any desired power socket.
That’s it. You’re done!
Tip: Press ‘Pair’ for more security.
Don’t Lose an Outlet
The passthrough powerline kit can be used like a traditional electrical socket, ensuring no power socket goes to waste. The built-in noise filter helps prevent electrical signal noise from affecting powerline performance.
More Gigabit Ethernet Ports, More Devices
Equipped with 3× gigabit Ethernet ports, the kit provides wired connections for 4K video and IPTV streaming, lag-free gaming, and more.
| Performance | |
|---|---|
| Plug and Play | Yes |
| Encryption button | Yes |
| Maximum operating distance | 300 m |
| Security algorithms | 128-bit AES, WEP, WPA, WPA2, WPA3 |
| Modulation | OFDM |
| PowerLine standard | HomePlug AV2 |
| Built-in power socket | Yes |
| Networking standards | IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| WLAN data transfer rates supported | 300,867 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Maximum data transfer rate | 1300 Mbit/s |
| Power | |
|---|---|
| Power consumption (standby) | 5 W |
| Power consumption (typical) | 10.8 W |
| Design | |
|---|---|
| Certification | CE |
| Product colour | White |
| LED indicators | LAN, Power, WLAN |
| Antenna type | Internal |
| System requirements | |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Packaging data | |
|---|---|
| Package height | 100 mm |
| Package depth | 190 mm |
| Package width | 230 mm |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
| Quantity per pack | 2 pc(s) |
