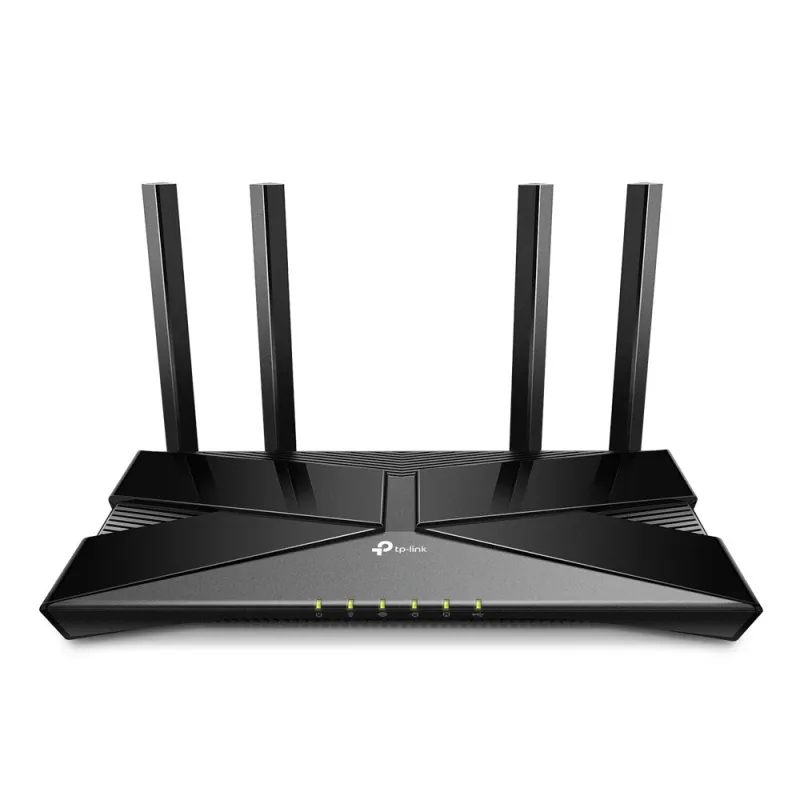

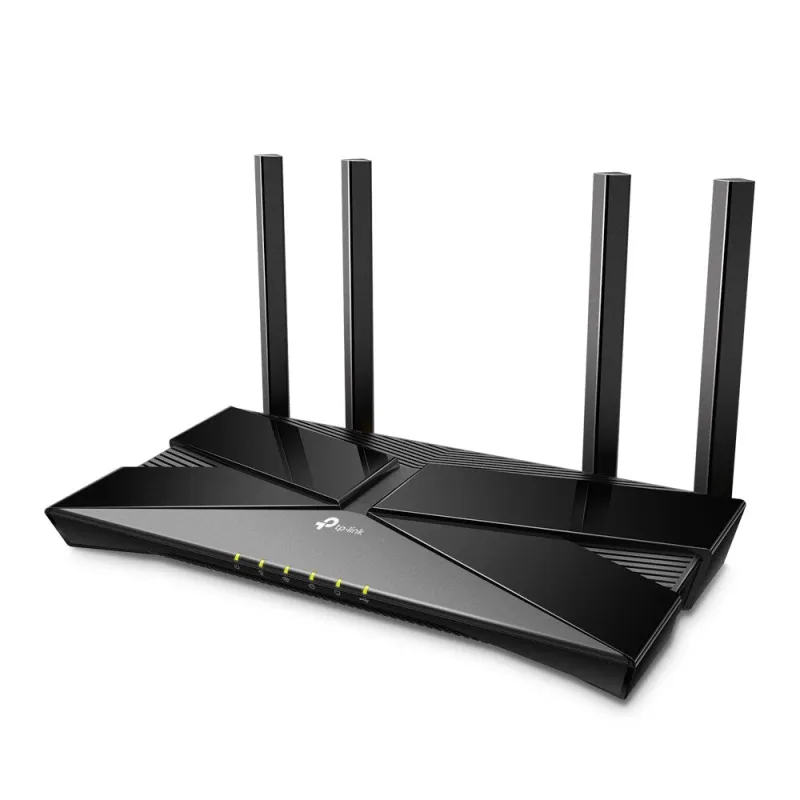

TP-Link AX1800 Dual-Band Wi-Fi 6 Router
- Dual-Band Wi-Fi 6: Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion
- Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.8 Gbps.†
- Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag.△§
- Quad-Core Processing: The 1.5 GHz quad-core CPU ensures communications between your router and all connected devices are smooth
- Extensive Coverage: Beamforming, independent FEM, and four antennas combine to deliver focused reception to devices far away
- Increased Battery Life: Target Wake Time technology reduces your devices’ power consumption to extend their battery life.‡
- USB Easy Sharing: A USB 2.0 Port enables easy file sharing within your network or building private Cloud Storage
- Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App
- Backward Compatible: Supports all previous 802.11 standards and all Wi-Fi devices
Explore the
New Era of Wi-Fi
AX1800 Dual-Band
Wi-Fi 6 Router
Archer AX20
Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Dual-Band Wi-Fi 6 Up to 1.8 Gbps
Every application feels more fluid with drastically improved Wi-Fi speeds. Both 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K streaming, online gaming, and fast downloading.
Extensive Wi-Fi Coverage with Advanced Technologies
Beamforming technology, independent Front-End Module, and four high-gain antennas combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.
Connect More,
Stay Fast
Easily handle dozens of devices streaming and gaming at the same time—OFDMA future-proofs your home networks by providing greater capacity to connect more devices.
OFDMA
OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.
1.5 GHz Quad-Core CPU
Powerful Processing for
Minimal Latency
A powerful 1.5 GHz quad-core CPU generates minimal latency within your network even under heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.
WPA3—New Level of Cyber Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Easy Setup and Use
Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX20 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1800 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network | |
|---|---|
| Static route | Yes |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| 3G | No |
| 4G | No |

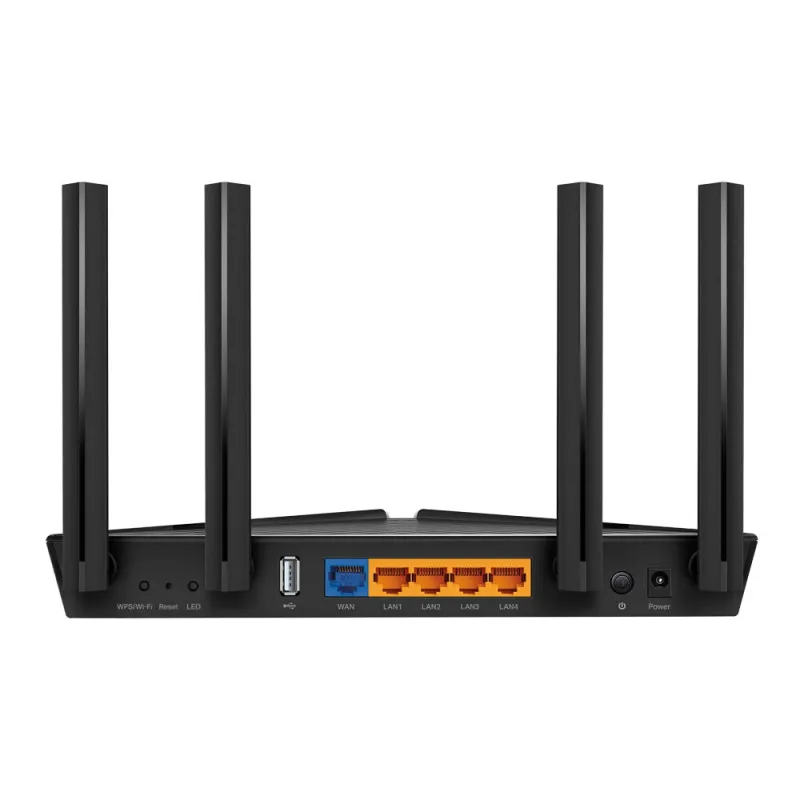

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Memory card slot(s) | No |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based setup wizard | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| NAT functionality | Port Forwarding, Port Triggering, UPnP, DMZ |
| Network address translation (NAT) | Yes |
| DMZ support | Yes |
| System event log | Yes |
| URL filtering | Yes |
| IP address filtering | Yes |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WMM, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols | |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | LAN, Power, WAN, WLAN |
| Product colour | Black |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Warranty card | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Certificates | |
|---|---|
| Certification | FCC, CE, RoHS |
| Antenna | |
|---|---|
| Antenna design | External |
| Features | |
|---|---|
| Processor frequency | 1500 MHz |
| Built-in processor | Yes |
| Power | |
|---|---|
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power source type | AC |
| System requirements | |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
|---|---|
| Width | 260.2 mm |
| Depth | 135 mm |
| Height | 38.6 mm |
| Packaging data | |
|---|---|
| Package weight | 890 g |
| Package height | 73 mm |
| Package depth | 240 mm |
| Package width | 330 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Compatible operating systems | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or Linux |
| Minimum system requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or otherJava-enabled browserCable or DSL ModemSubscription with an internet service provider (for internet access) |
