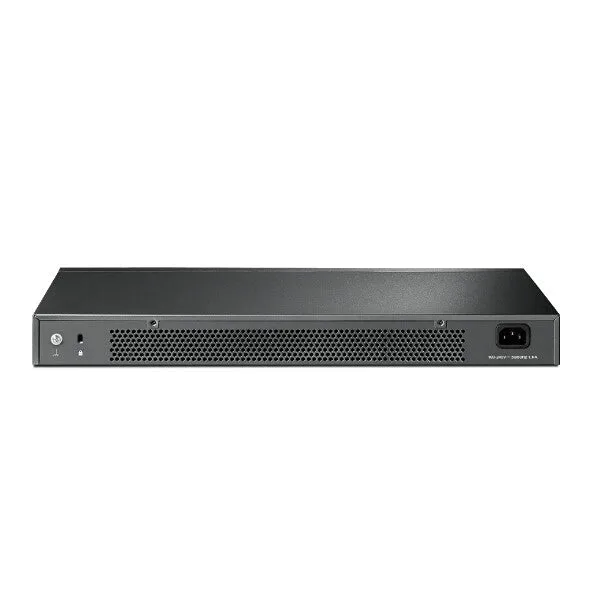

TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
- Gigabit Speeds: 48× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management
10G Uplink Managed Switch for a Complete Omada Network
– 10G Lightning-Fast Uplink Connection
4× 10Gbps SFP+ Slots for High-Bandwidth Connectivity
– Gigabit Connections
48× Gigabit Ethernet Ports Offer Reliable Connections
– Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
– Advanced L2+ Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More
Enterprise Switch
with 10G Uplink
4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features**
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to the appropriate subscribers, cutting unnecessary traffic. IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routes traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features**
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to www.tp-link.com/en/omada-cloud-based-controller/product-list/ to find all the models supported by Omada Cloud-Based Controller.
**L3 and ISP features can only be configured in standalone mode.
| Management features | |
|---|---|
| MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, |
| System event log | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | AC-in jack |
| Console port | RJ-45/Micro-USB |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Number of VLANs | 4000 |
| Virtual LAN features | Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad |
| Data transmission | |
|---|---|
| Packet buffer memory | 12 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of static routes | 48 |
| Static route | Yes |
| Forwarding rate | 130.9 Mpps |
| Switching capacity | 176 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Authentication | Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication |
| Authentication type | AAA, RADIUS, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Static port security | Yes |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server |
| Multicast features | |
|---|---|
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | Yes |
| Protocols | |
|---|---|
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Design | |
|---|---|
| Number of fans | 0 fan(s) |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power consumption (max) | 32.72 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 111.65 BTU/h |
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 220 mm |
| Width | 440 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC |
| Packaging data | |
|---|---|
| Package weight | 4 kg |
| Package height | 100 mm |
| Package depth | 336 mm |
| Package width | 528 mm |
| Rack rails | Yes |
| General | |
|---|---|
| Product family | JetStream |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
