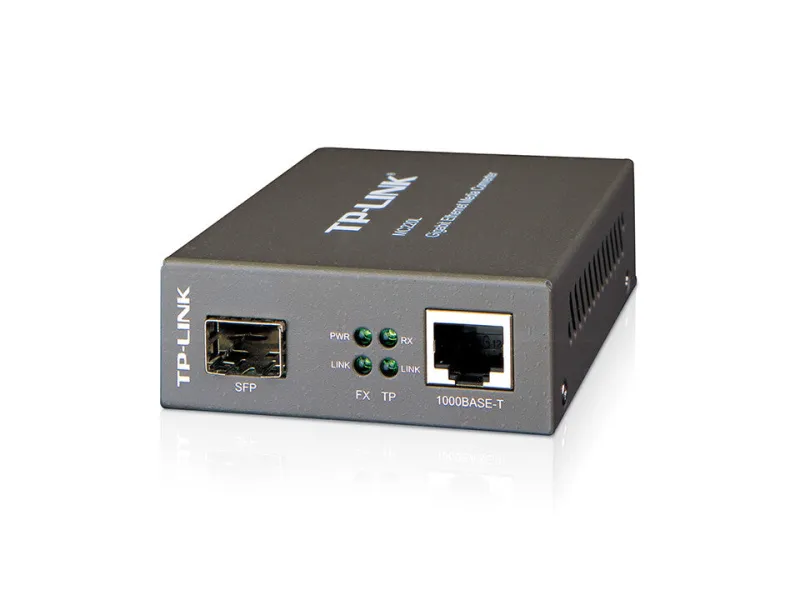

TP-LINK (MC220L) Gigabit SFP Media Converter, 1x GB Auto-Negotiation RJ45, Half-Duplex / Full-Duplex
- Wired
- 1000 Mbit/s 10000 m
- Ethernet LAN (RJ-45) ports: 1
- Multi-mode, Single-mode Fiber ports quantity: 1 SFP
- Black
– Complies with IEEE 802.3ab and IEEE 802.3z
– FX port supports hot-swappable
– Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
| Network |
| Cabling technology |
UTP 5e, 5 |
| Auto MDI/MDI-X |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Networking standards |
IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Maximum data transfer rate |
1000 Mbit/s |
| Performance |
| Fiber mode structure |
Multi-mode, Single-mode |
| Maximum transfer distance |
10000 m |
| Features |
| Compliance industry standards |
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| LED indicators |
Link |
| Product colour |
Black |
| Internal |
No |
| Ports & interfaces |
| Fiber optic connector |
SFP |
| Fiber ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Power |
| External power adapter |
Yes |
| Power consumption (max) |
1.7 W |
| Weight & dimensions |
| Height |
27 mm |
| Depth |
73 mm |
| Width |
94.5 mm |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Packaging data |
| Package weight |
420 g |
| Package height |
65 mm |
| Package depth |
165 mm |
| Package width |
204 mm |
| Certificates |
| Certification |
FCC, CE |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Other features |
| I/O ports |
1x 1000M SC1x 1000M RJ45 |
| Dimensions (WxDxH) |
94.5 x 73 x 27 mm |
| Full duplex |
Yes |
