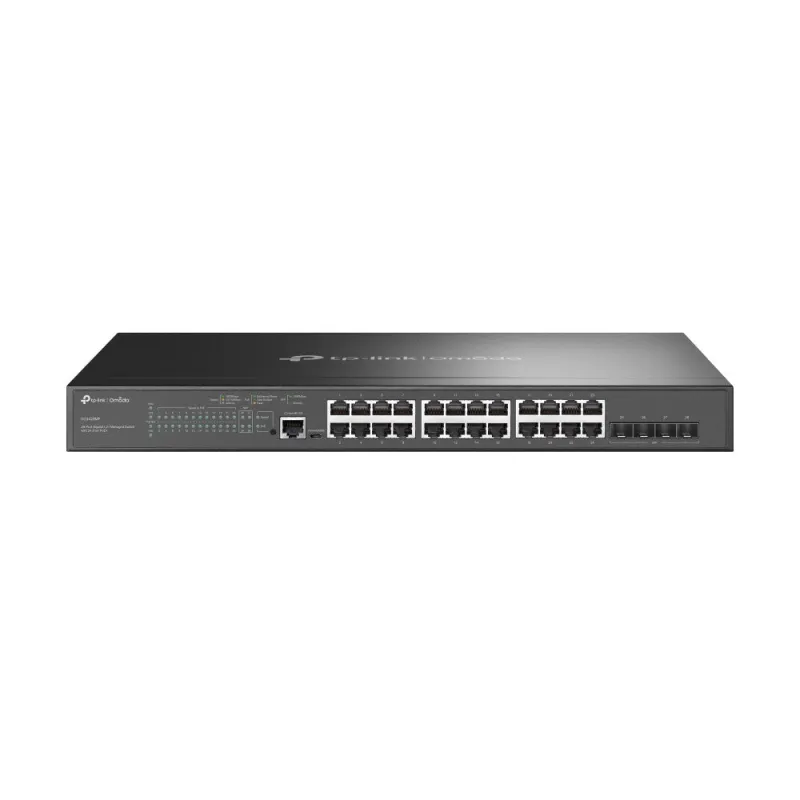

TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
- 24× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
- 384 W total PoE budget with up to 30 W PoE output per port
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| Management features |
| System event log |
Yes |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2+ |
| Switch type |
Managed |
| Ports & interfaces |
| Power connector |
AC-in jack |
| Console port |
RJ-45/Micro-USB |
| SFP module slots quantity |
4 |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
| Number of VLANs |
4000 |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| VLAN support |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Active link detection |
Yes |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Spanning tree protocol |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| IP routing |
Yes |
| Port mirroring |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
12 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
41.66 Mpps |
| Switching capacity |
56 Gbit/s |
| MAC address table |
16000 entries |
| Security |
| Loop protection |
Yes |
| Security algorithms |
SSH, SSL/TLS |
| Authentication |
MAC-based authentication, Port-based authentication |
| MAC address filtering |
Yes |
| SSH/SSL support |
Yes |
| BPDU filtering/protection |
Yes |
| IP-MAC-Port binding |
Yes |
| Static port security |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features |
| Multicast support |
Yes |
| Protocols |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Management protocols |
SNMPv1/v2c/v3, LLDP/LLDP-MED |
| Design |
| Number of fans |
2 fan(s) |
| LED indicators |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
480.1 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
384 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
1637.14 BTU/h |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 45 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
330 mm |
| Width |
440 mm |
| Packaging content |
| User guide |
Yes |
| Quick start guide |
Yes |
| General |
| Product family |
Omada |
| Certificates |
| Certification |
CE, FCC, RoHS |
