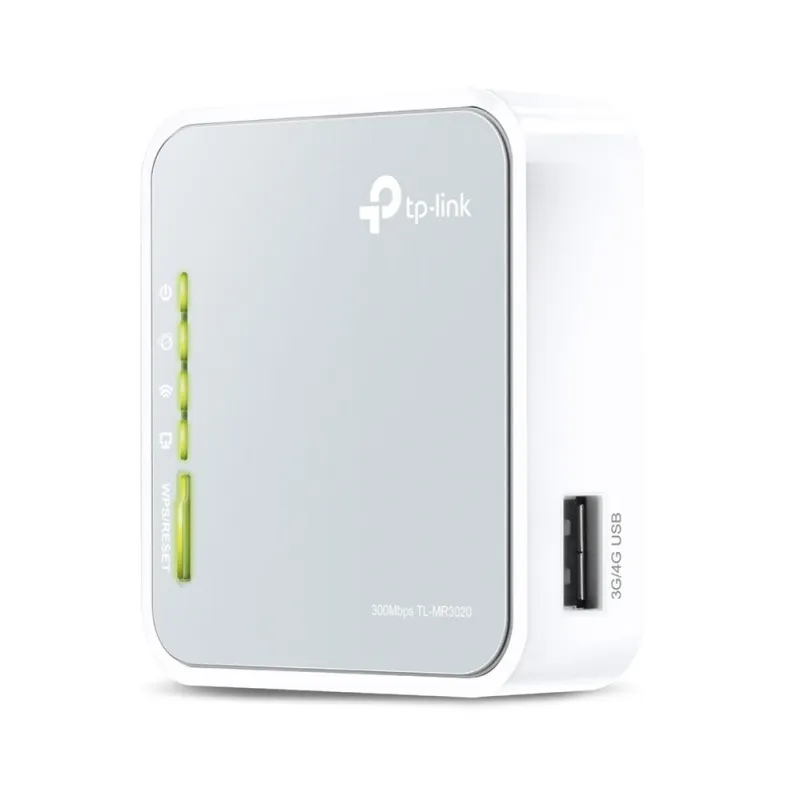

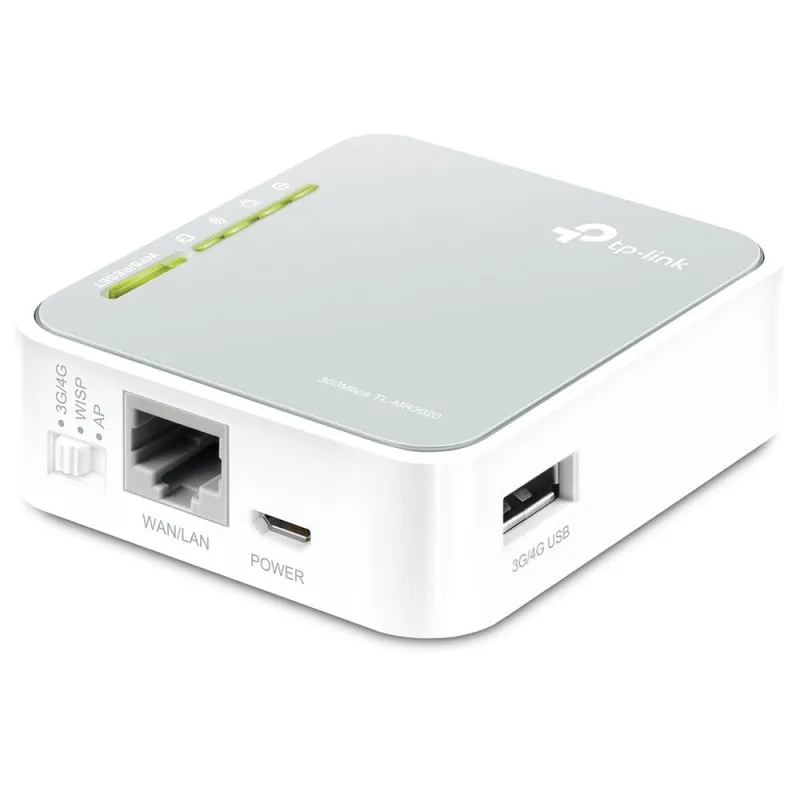

TP-Link Portable 3G/4G Wireless N Router
- Share a 3G/4G mobile connection, compatible with 120+ LTE/HSPA+/HSPA/UMTS/EVDO 3G/4G USB modems, tested in the field
- Travel-size Design, small and light enough to take on the road, enables users to share a 3G/4G* mobile connection wherever 3G/4G* coverage is available
- Wireless speed is up to 150Mbps
- Three modes available for different situations: 3G/4G* Router, WISP Client Router and Travel Router Mode (AP Mode)
- With 3G/4G and WAN failover back-up strategy, TL-MR3020 can provide a sustained internet connection
With a travel-sized design, a mini USB port, Wireless N speeds up to 150Mbps and a high compatibility with 3G modems, TP-LINK’s new Portable 3G/3.75G Wireless N Router,
TL-MR3020 is the ideal device to provide wireless cloud for iPads™, iTouches™, Android™ Phones, Kindles™ and the vast majority of other portable Wi-Fi enabled devices.
Travel-sized Design
With the travel-sized and compact design, TL-MR3020 is small enough to take on the road and make sure that you can share a 3G internet connection wherever wireless 3G coverage is available.
Travel Router with 3G/4G Function
TL-MR3020 is the ideal travel partner for people on the go. 3G Router Mode enables you to plug in a 3G USB modem and share it wirelessly. Its Travel Router Mode (AP Mode) allows you to conveniently setup an internet connection utilizing a hotel WAN cable. Meanwhile, you can also use the switch on the side of the router to choose between Travel Router Mode, 3G Router Mode and WISP Client Router Mode based on your different requirements.
| WAN connection | |
|---|---|
| 3G/4G USB modem compatibility | Yes |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 150 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi band | Single-band (2.4 GHz) |
| Network | |
|---|---|
| Port forwarding | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| 3G | Yes |
| 4G | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Memory card slot(s) | No |
| USB charging port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Management features | |
|---|---|
| Reset button | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| DMZ support | Yes |
| MAC address filtering | Yes |
| Filtering | Yes |
| Firewall | Yes |
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK |
| Protocols | |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Grey, White |
| Product type | Portable router |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), USB |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| Antenna | |
|---|---|
| Antenna design | Internal |
| Power | |
|---|---|
| Output current | 1 A |
| Output voltage | 5 V |
| Power source type | AC, USB |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 – 60 °C |
| Storage temperature (T-T) | -40 – 80 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| System requirements | |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional |
| Weight & dimensions | |
|---|---|
| Width | 74 mm |
| Depth | 67 mm |
| Height | 22 mm |
| Packaging data | |
|---|---|
| Package weight | 210 g |
| Package height | 81.5 mm |
| Package depth | 109 mm |
| Package width | 110 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| WLAN data transfer rates supported | 150 Mbit/s |
| Frequency range | 2.4 – 2.4835 GHz |
| Mobile network connection | Yes |
