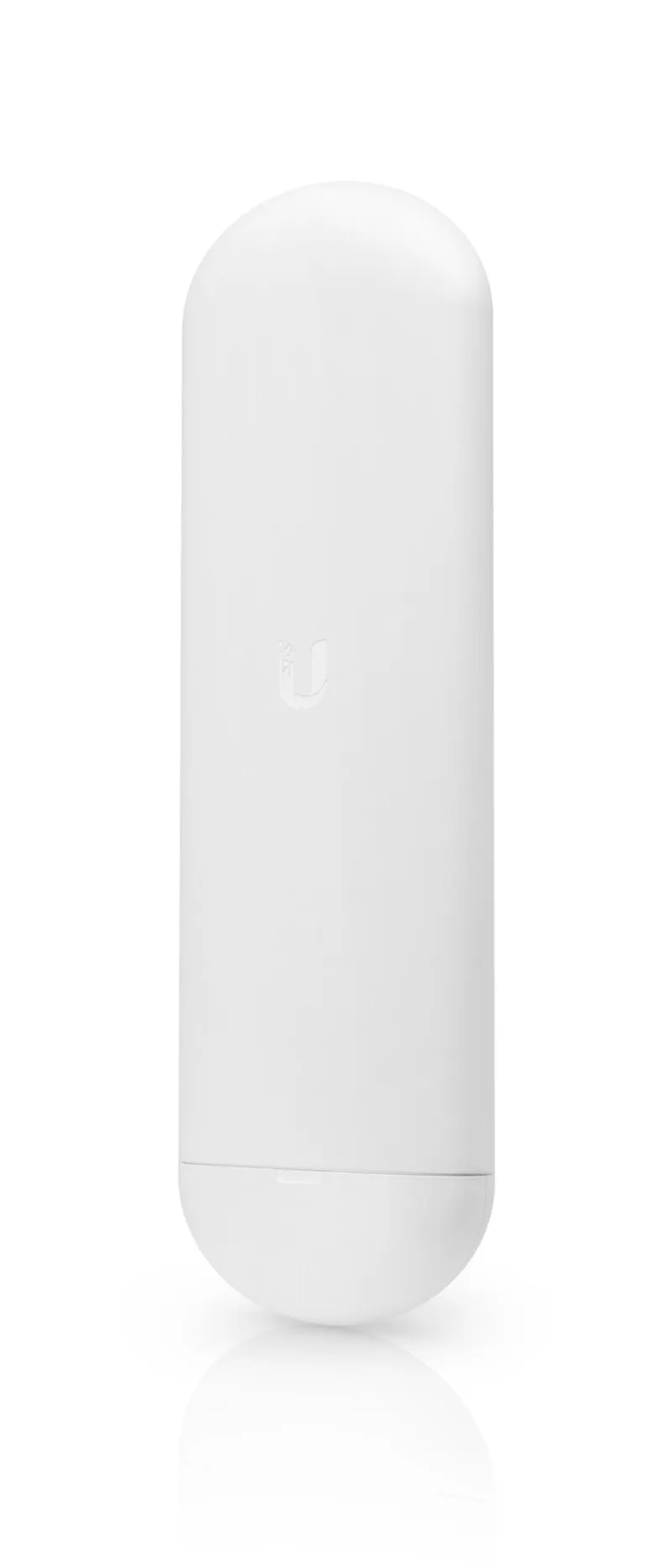

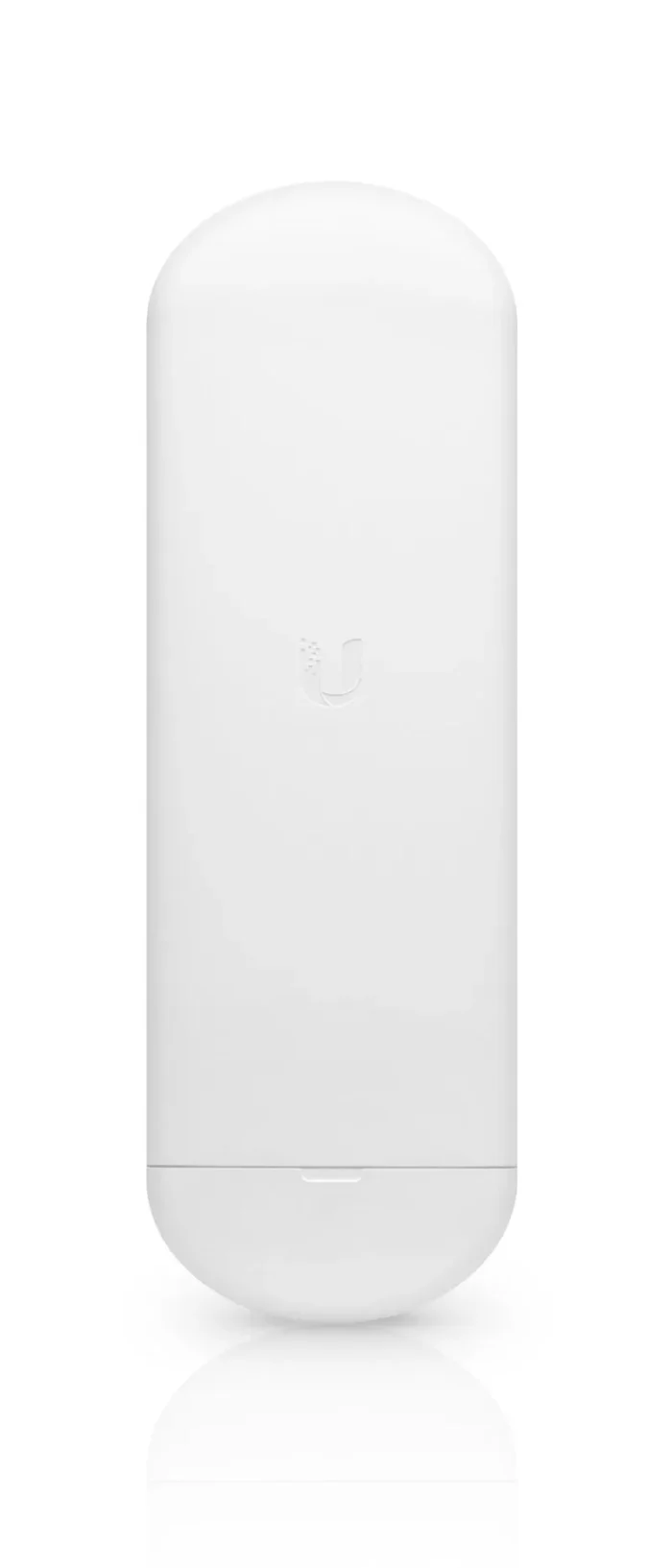

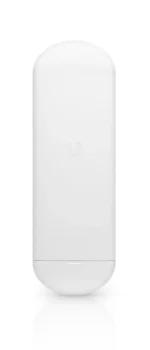

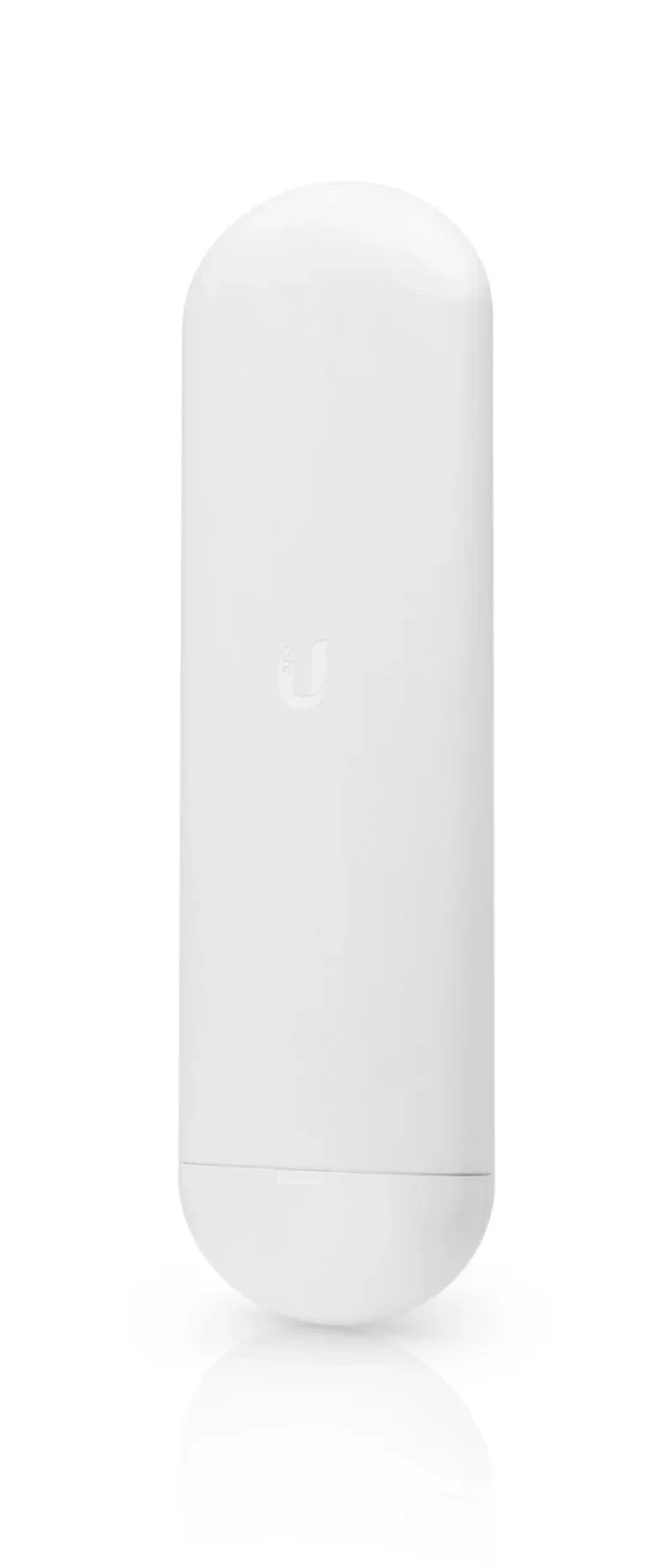

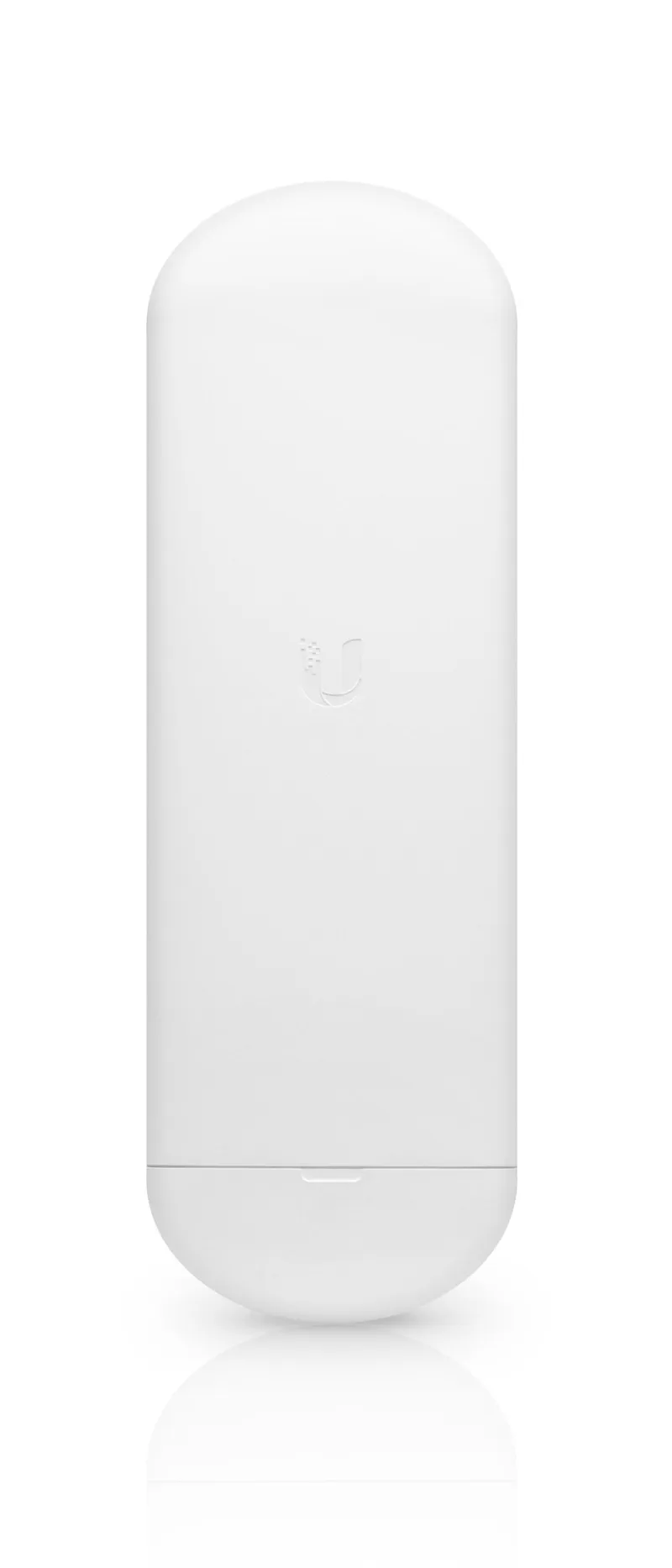

Ubiquiti NanoStation AC 1000 Mbit/s White Power over Ethernet (PoE)
- 5 GHz
- Maximum data transfer rate: 1000 Mbit/s
- Power over Ethernet (PoE)
The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.
Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.
Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
| Features | |
|---|---|
| Maximum outdoor range | 15000 m |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Channel bandwidth | 80 MHz |
| Throughput data rate | 450 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| 5 GHz | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Input current | 0.5 A |
| AC input voltage | 24 V |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Internal | No |
| LED indicators | Network, Power, Signal strength |
| Product colour | White |
| Placement | Ceiling |
| Antenna | |
|---|---|
| Antenna gain level (max) | 16 dBi |
| Performance | |
|---|---|
| Operating system installed | AirOS |
| Internal memory | 64 MB |
| Built-in processor | Yes |
| Certificates | |
|---|---|
| Certification | CE, FCC, IC |
| Weight & dimensions | |
|---|---|
| Weight | 233 g |
| Height | 41 mm |
| Depth | 84 mm |
| Width | 257 mm |
| Packaging content | |
|---|---|
| PoE adapter included | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
