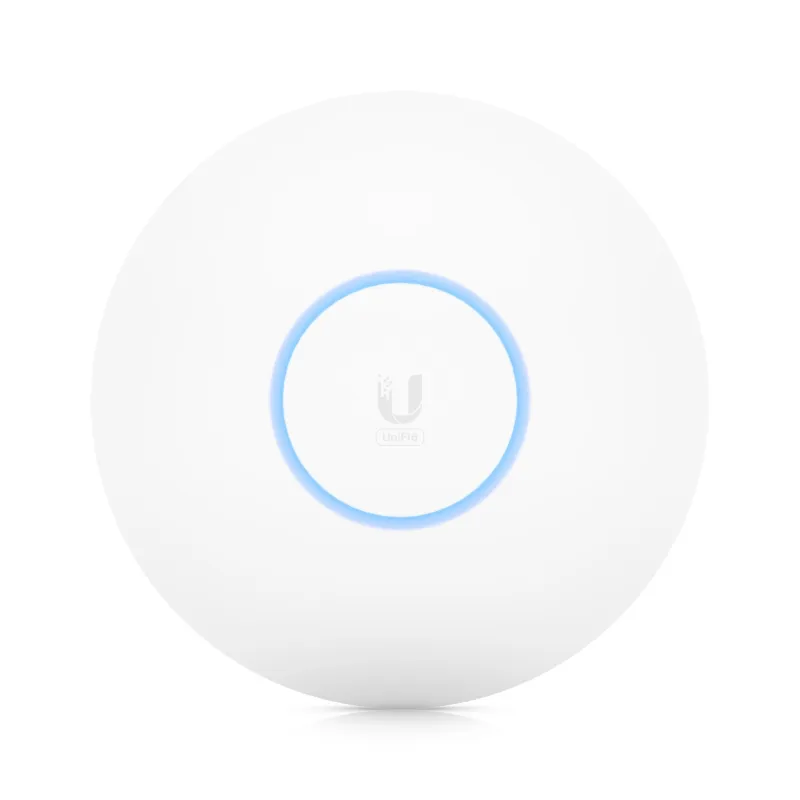

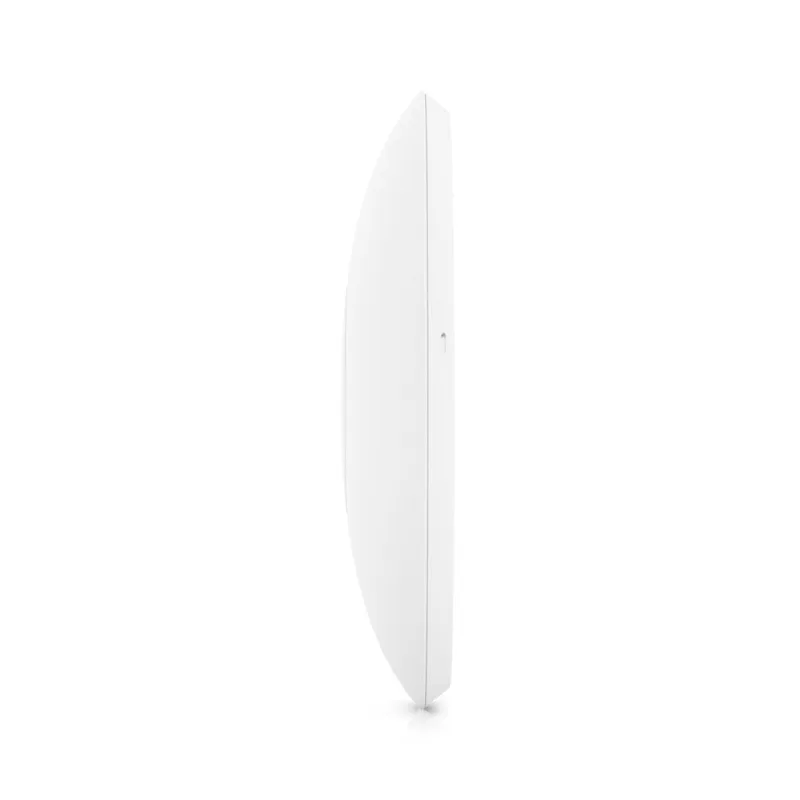

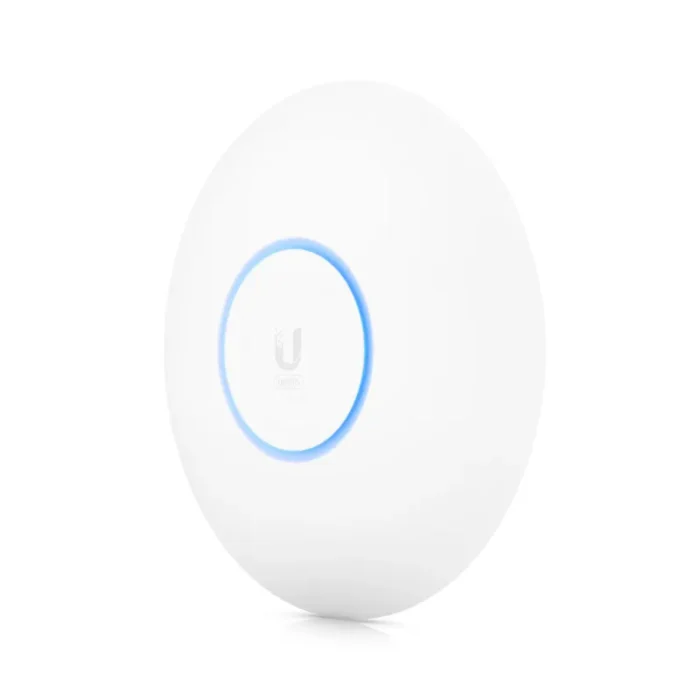

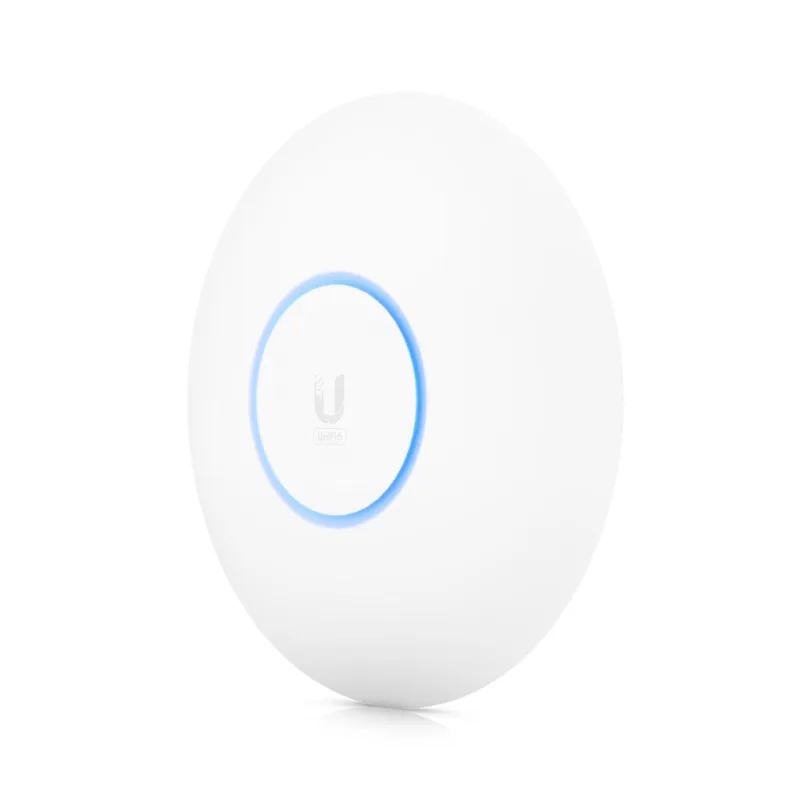

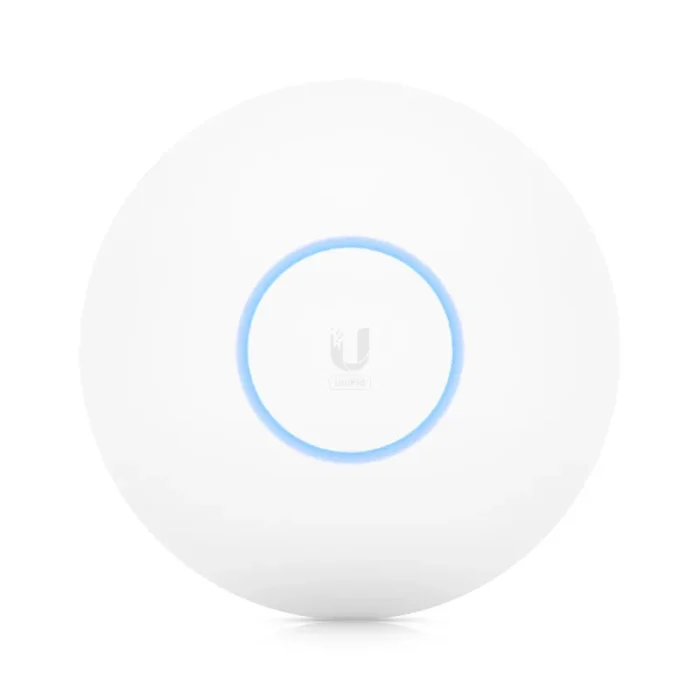

Ubiquiti U6-PRO wireless access point 4800 Mbit/s White Power over Ethernet (PoE)
- Dual-band WiFi 6 (802.11ax)
- 5 GHz (4×4 MU-MIMO) band with a 4.8 Gbps throughput rate
- 2.4 GHz (2×2 MIMO) band with a 573.5 Mbps throughput rate
- Operates at full 4×4 MIMO with 160 MHz bandwidth
- 300+ concurrent client capacity
- Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion
- Included universal mounting plate, backing plate, and screw kit
Indoor, dual-band WiFi 6 access point that can support over 300 clients with its 5.3 Gbps aggregate throughput rate.
The Access Point WiFi 6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4×4 MIMO) and 2.4 GHz (2×2 MIMO) bands, which allows it to support over 300 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. It can also isolate your guest traffic to ensure optimal security and speed. The U6 Pro also operates at full 4×4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. It can be set up in minutes and fully managed with the UniFi Network application.
| Features |
| Quality of Service (QoS) support |
Yes |
| Rate limiting |
Yes |
| VLAN support |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Bluetooth |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at |
| Throughput data rate |
5300 Mbit/s |
| Ethernet LAN data rates |
1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
573.5 Mbit/s |
| Maximum data transfer rate |
4800 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
| Security algorithms |
WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power consumption (typical) |
13 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
| Reset button |
Yes |
| International Protection (IP) code |
IP54 |
| Housing material |
Plastic |
| Product colour |
White |
| Placement |
Ceiling, Wall |
| Antenna |
| Antenna gain level (max) |
6 dBi |
| Antenna type |
Internal |
| Certificates |
| Certification |
CE, FCC, IC |
| Weight & dimensions |
| Weight |
460 g |
| Height |
35 mm |
| Depth |
197 mm |
| Width |
197 mm |
| Operational conditions |
| Operating temperature (T-T) |
-30 – 60 °C |
| Operating relative humidity (H-H) |
5 – 95% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
