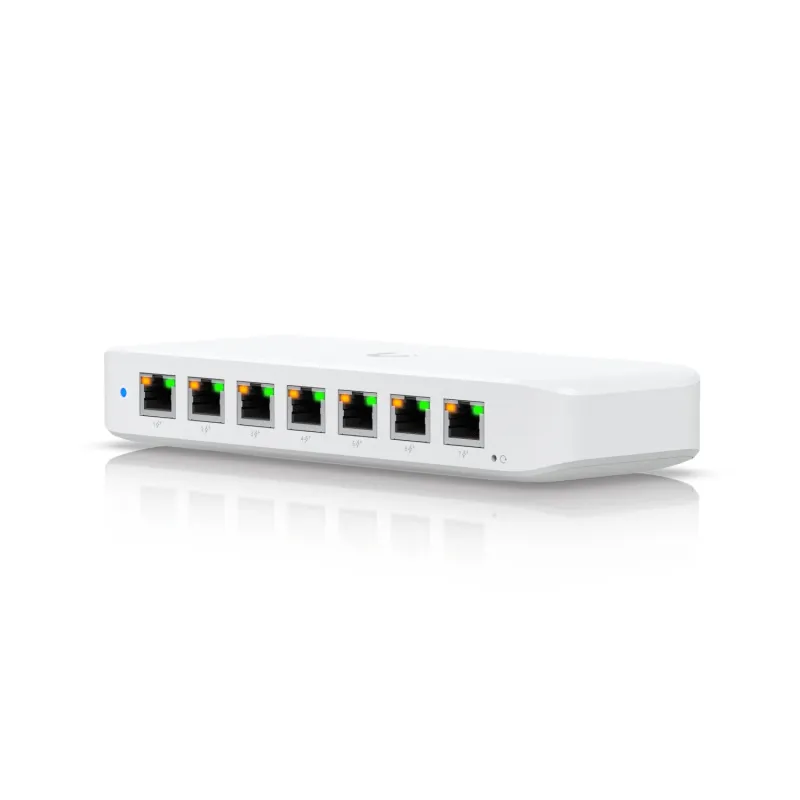

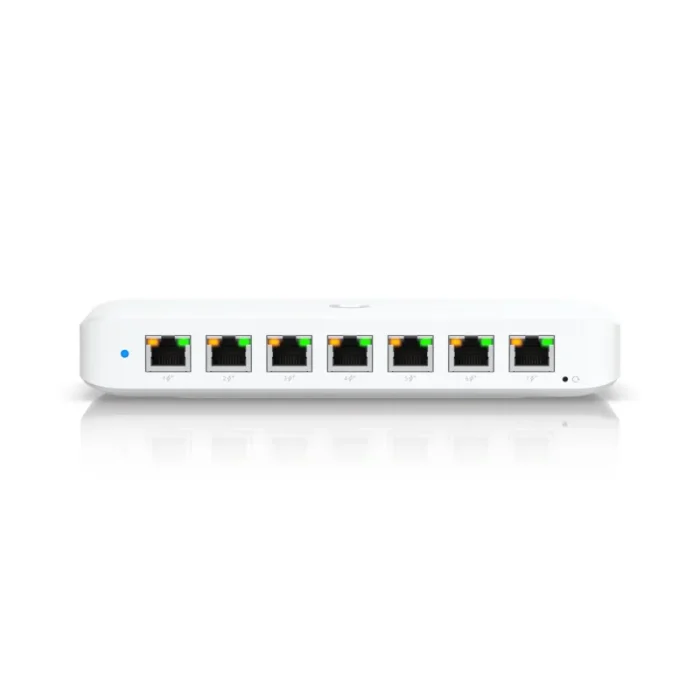

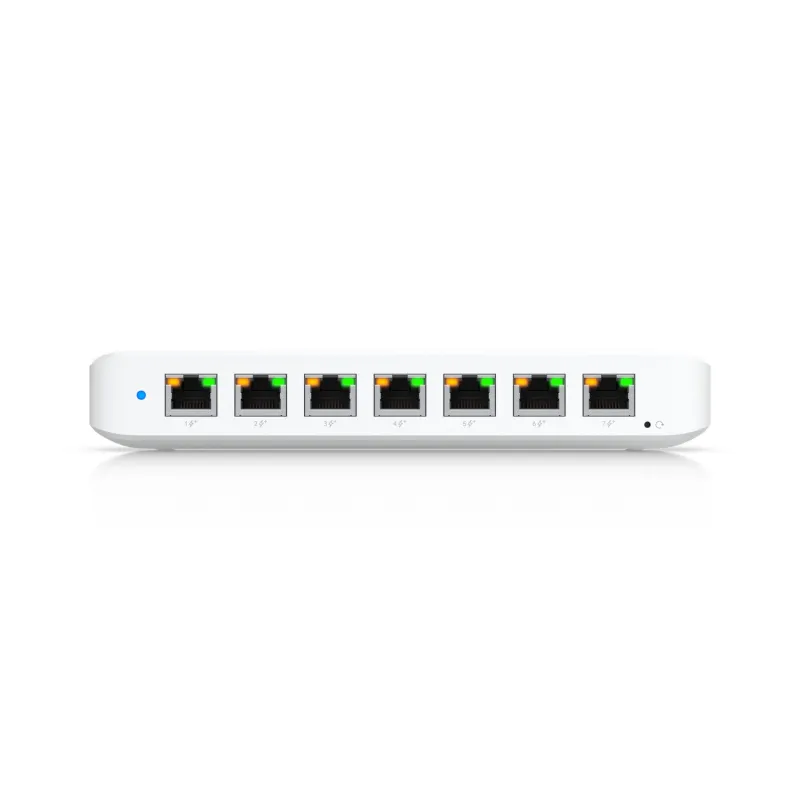

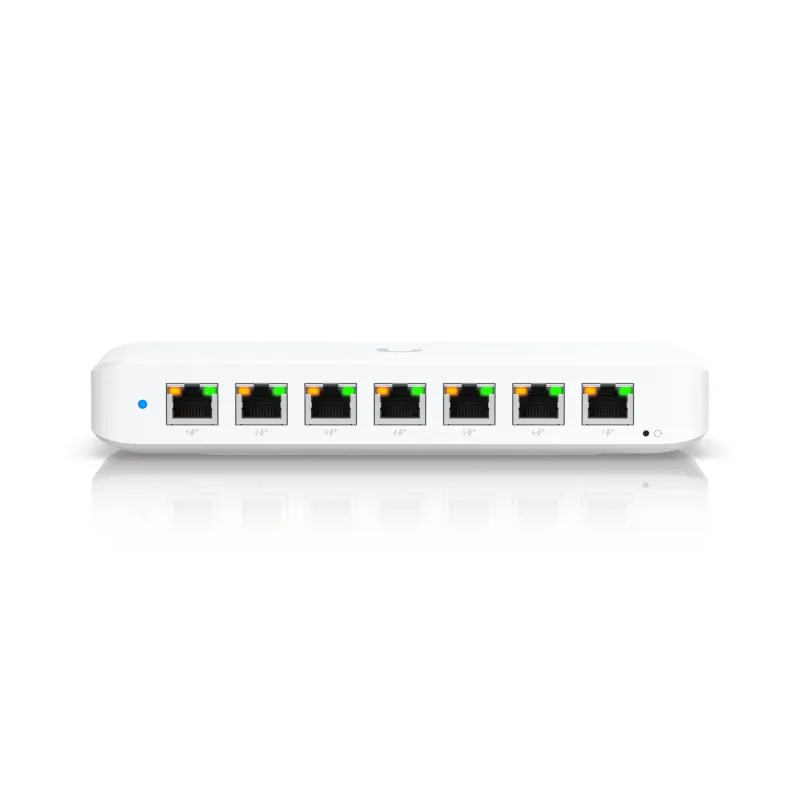

Ubiquiti Ultra 210W Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
- (7) GbE PoE+ output ports
- (1) GbE port with optional PoE++ input
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
| Management features | |
|---|---|
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Switching capacity | 16 Gbit/s |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Wall mountable | Yes |
| LED indicators | Activity, Link, PoE, Status |
| Reset button | Yes |
| Housing material | Polycarbonate (PC) |
| Product colour | White |
| Rack mounting | No |
| Power | |
|---|---|
| Power consumption (max) | 9 W |
| Input current | 3.9 A |
| DC input voltage | 44 – 57 V |
| Number of power supply units | 1 |
| Power supply included | Yes |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 202 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Power over Ethernet (PoE) ports quantity | 7 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | -20 – 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 320 g |
| Height | 33 mm |
| Depth | 76 mm |
| Width | 203 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Certificates | |
|---|---|
| Certification | CE, FCC, IC |
