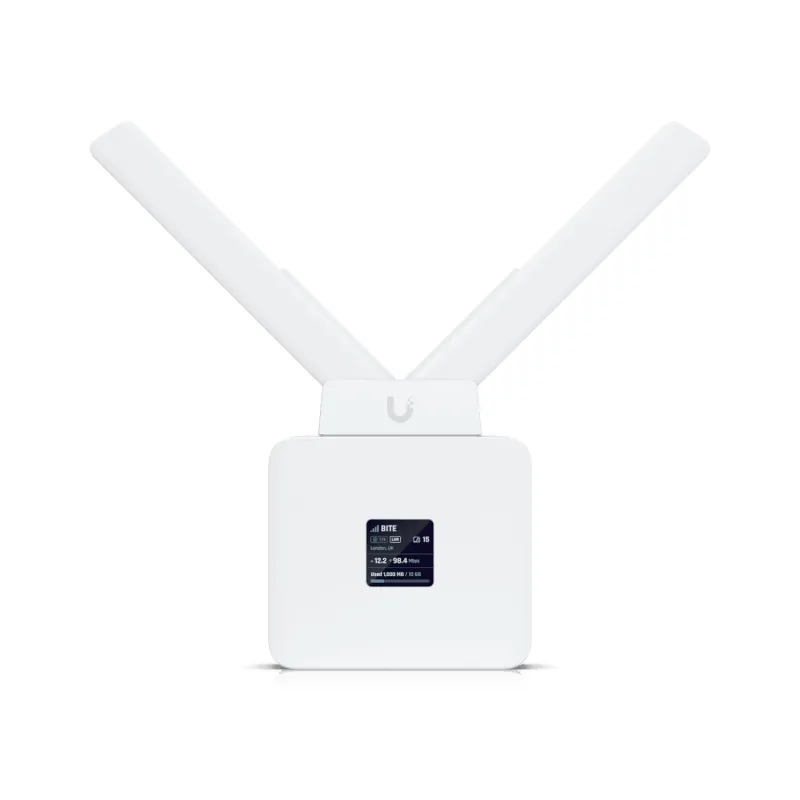

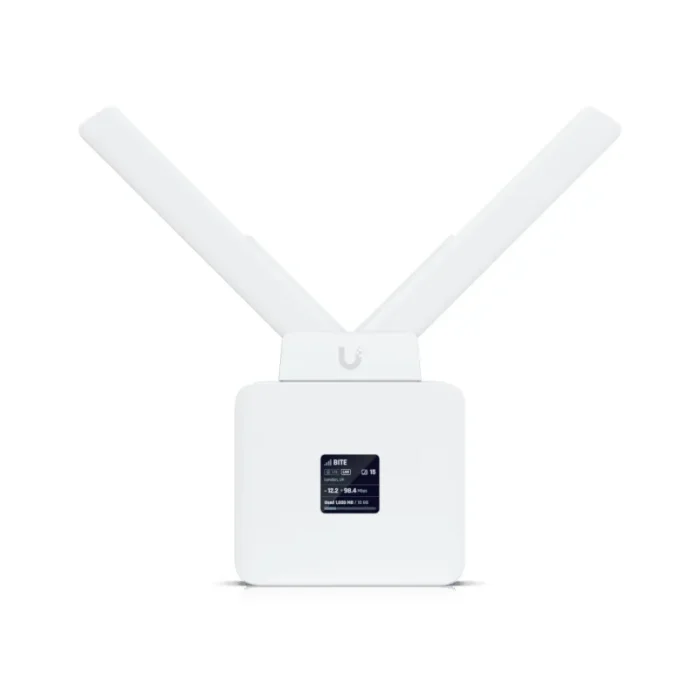

Ubiquiti UMR cellular network device Cellular network router
- Cellular network router
- Ethernet LAN Wi-Fi
- 4G standard: LTE
- Antenna type: Internal & external TS-9
- Built-in display
- GPS (satellite)
- White
Managed mobile WiFi router that brings plug-and-play connectivity to any environment. Bring your own nano-SIM for LTE data.
| Design | |
|---|---|
| Reset button | Yes |
| Display diagonal | 3.3 cm (1.3″) |
| Display type | LCM |
| Built-in display | Yes |
| Mounting | DIN-rail/Wall mounting |
| Housing material | Polycarbonate (PC) |
| Product colour | White |
| Device type | Cellular network router |
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wireless LAN features | |
|---|---|
| Wi-Fi frequency | 2.4 GHz |
| WLAN data transfer rates supported | 1,2,5.5,6,9,11,12,18,24,36,48,54,150 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Mobile network | |
|---|---|
| Data transfer rate (LTE) (download) | 150 Mbit/s |
| Data transfer rate (LTE) (upload) | 50 Mbit/s |
| SIM card type | NanoSIM |
| 4G standard | LTE |
| Data network | 3G, 4G |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| USB port type | USB Type-C |
| Ethernet LAN (RJ-45) ports | 2 |
| Certificates | |
|---|---|
| Certification | CE, UKCA, GCF |
| Performance | |
|---|---|
| Antennas quantity | 3 |
| Antenna connector type | TS-9 |
| Antenna type | Internal & external |
| GPS (satellite) | Yes |
| RAM type | DDR2 |
| RAM capacity | 0.128 GB |
| Processor frequency | 0.775 GHz |
| Built-in processor | Yes |
| Power | |
|---|---|
| Output voltage | 48 – 54 V |
| Power source type | DC, PoE, USB |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 – 45 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Weight & dimensions | |
|---|---|
| Weight | 303 g |
| Height | 220.6 mm |
| Depth | 28.8 mm |
| Width | 89.8 mm |
| Packaging data | |
|---|---|
| User guide | Yes |
