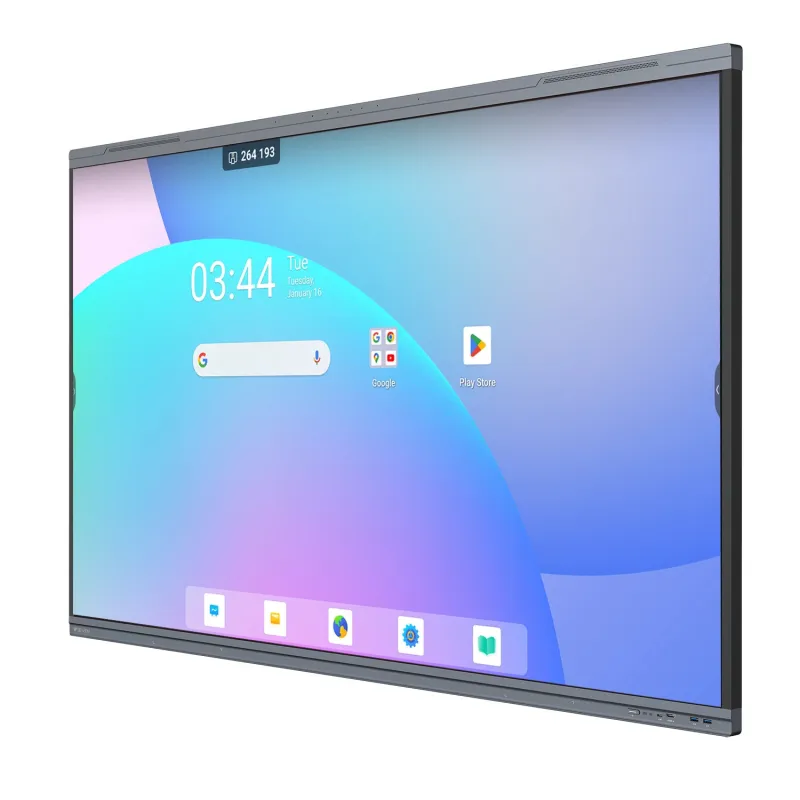

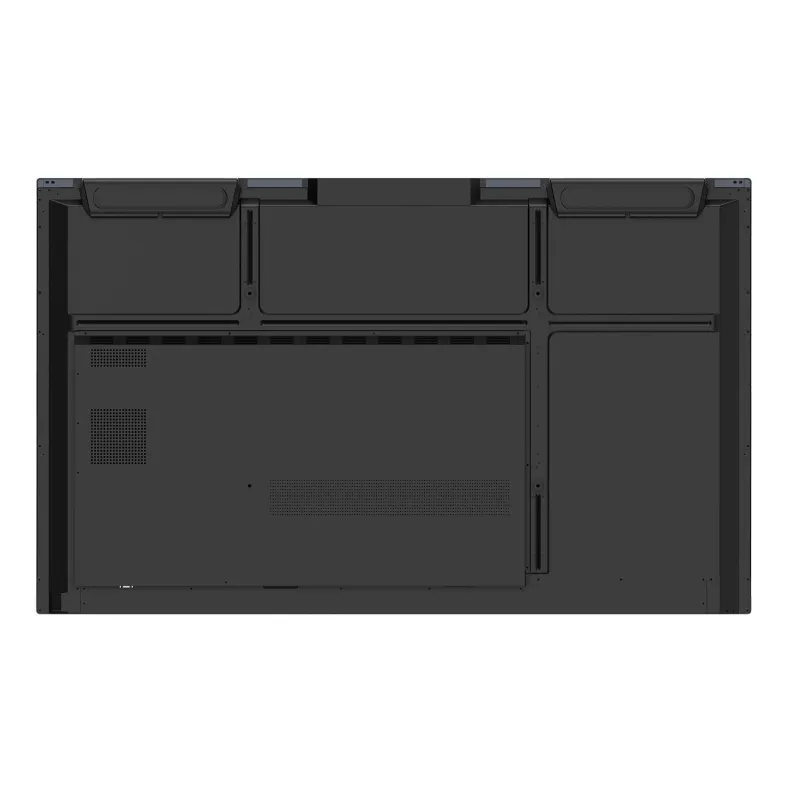

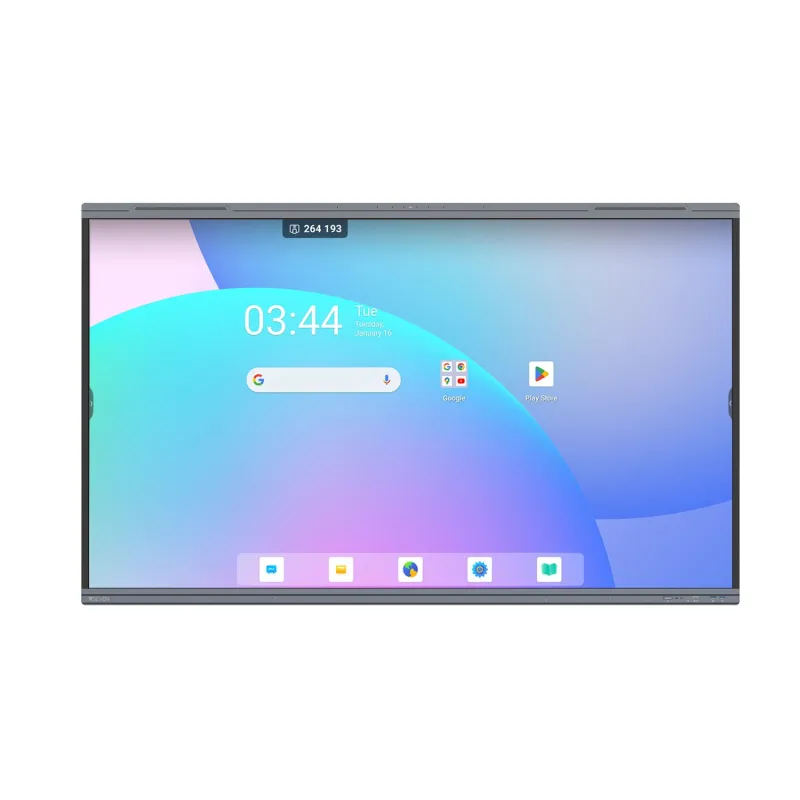

V7 IFP7503-VPROM Interactive Display – 75 Inch 4K Android 13 EDLA Certified, 16GB RAM 256GB ROM, 2 x 8W + 2 x 18W Speakers, includes Device management, Wi-Fi, Bluetooth Wall Mount, Google Play Store
- Google EDLA Certified with Google Play Store for downloading applications
- Powerful Octacore CPU with increased ROM and RAM delivering smoother performance, it tackles demanding apps with ease, and offers ample storage for your data and applications
- 4K Interactive Display with 50 point touch and palm rejection featuring Android 13
- Multitasking with easy to use built in applications for leading classrooms and meetings interactively with the audience
- Wired and Wireless Networking included with Internet access and screen sharing to and from almost any device
- USB-C PD 100w Device Charging, USB-C 4K video out, and plenty of USB, video, network, and wireless connectivity
- 2 x 18W + 2 x 8W, 8 Microphone Array, and Bluetooth wireless Connectivity
- Bytello DMS with subscription included for unified Bulk Remote Management with status monitoring, time & channel switching, volume control and information broadcasting
V7 Interactive 4K Pro Model Displays allow users to easily collaborate, save and share ideas interactively and digitally in meeting rooms and classrooms. The system uses a powerful Octa-Core processor and graphics chipset with increased memory. The EDLA certification with the included Google Play Store gives users access to a vast library of downloadable apps for including productivity, collaboration, entertainment, education, and gaming. It is optimal for multi-window multitasking applications for leading classrooms or meetings including whiteboard, note taking, web browser, screen sharing and recording, and more. With Bytello Share, you can share and receive content between the Interactive Display and Windows, Mac OS, Chrome OS, Android, and iOS Devices using the included application or using Miracast, ChromeCast or AirPlay (up to 9 devices split screen at one time). Connect to a variety of resources and provide a great interactive multimedia environment with 50 point touch with palm rejection, 2 x 18 watt + 2 x 8 watt front facing speakers and a microphone array, 2 USB-C ports with Power Delivery (1 x 100 watt, 1 x 15 watt) for your devices, and many other ports including USB, Video, and Network to connect with other devices.
| Display | |
|---|---|
| Hardness | 9H |
| Working area | 1649.66 x 927.94 mm |
| Pixel pitch | 429.75 x 429.75 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Touch system response time | 2.5 ms |
| Touch resolution | 32767 x 32767 pixels |
| Number of simultaneous touchpoints | 50 |
| Touchscreen type | Infrared |
| Touchscreen | Yes |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 4000:1 |
| Native aspect ratio | 16:9 |
| LED backlighting type | Direct-LED |
| Panel type | VA |
| LED backlight | Yes |
| HD type | 4K Ultra HD |
| Anti-glare screen | Yes |
| Display resolution | 3840 x 2160 pixels |
| Display number of colours | 1.07 billion colours |
| Display brightness | 450 cd/m² |
| Display diagonal | 190.5 cm (75″) |
| Computer system | |
|---|---|
| Graphics card | Mali-G610 MP4 |
| RAM capacity | 16 GB |
| Maximum internal memory | 256 GB |
| Processor architecture | ARM Cortex A76 + ARM Cortex A55 |
| Audio | |
|---|---|
| Speaker power | 52 W |
| Number of built-in speakers | 4 |
| Built-in speaker(s) | Yes |
| Projector | |
|---|---|
| Built-in projector | No |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| Headphone connectivity | 3.5 mm |
| Audio output | 1 |
| S/PDIF out port | Yes |
| OPS slot | 80 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB Power Delivery up to | 100 W |
| USB Power Delivery (USB PD) | Yes |
| HDMI output ports quantity | 1 |
| HDMI ports quantity | 5 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C Touch ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ergonomics | |
|---|---|
| Certification | CE, Energy Star, FCC, RoHS, WEEE |
| Wall mountable | Yes |
| Panel mounting interface | 800 x 400 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Power | |
|---|---|
| Number of batteries supported | 2 |
| Battery type | AAA |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 137.45 W |
| Power consumption (max) | 530 W |
| System requirements | |
|---|---|
| Mobile operating systems supported | Android 13.0 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 51.5 kg |
| Height | 1031 mm |
| Depth | 85.7 mm |
| Width | 1709.4 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package weight | 60.8 kg |
| Package height | 1148 mm |
| Package depth | 225 mm |
| Package width | 1863 mm |
| Packaging content | |
|---|---|
| Number of stylus pens | 2 |
| Stylus included | Yes |
| Remote control included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Cables included | AC, HDMI, USB Type-C |
| Manual | Yes |
| Other features | |
|---|---|
| Country of origin | China |
