Vertiv Geist VP4G30AR power distribution unit (PDU) 42 AC outlet(s) 0U Black
- The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime
- VP4G30AR is a vertical rack mount PDU with 36 IEC C13 and 6 IEC C19 outlets and a 1P+N+E (IP44) plug

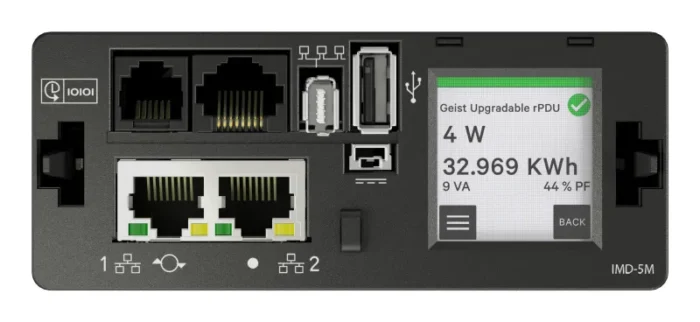

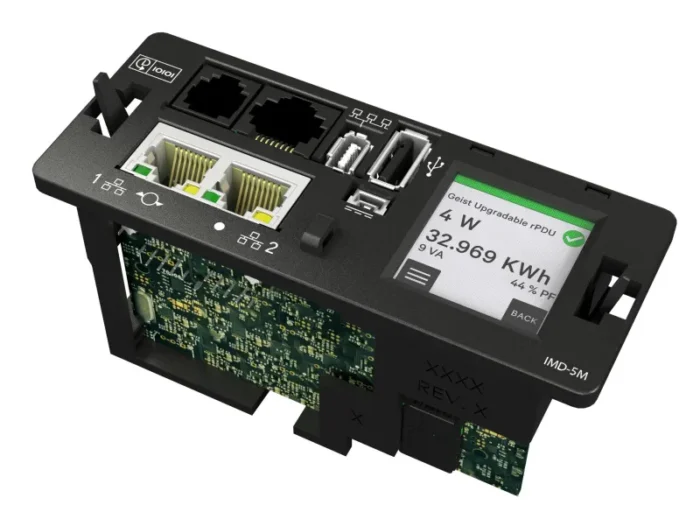

- Vertiv Geist Next-Generation IMD has a 128×128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, CE Marked, Complies with IEC 60950-1 (CB Certificate Available), and RoHS certified
The Vertiv Geist Monitored RPDU VP4G30AR is a 32A, 230V, 0U, vertical rack power distribution unit with input power monitoring. It has (36) IEC C13 and (6) IEC C19 outlets and a 1P+N+E (IP44) providing 7.3kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128×128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are CE Marked, comply with IEC 60950-1 (CB Certificate Available), RoHS certified, and are individually tested for functionality and reliability.
Design |
On/off switch |
No |
Display |
LCD |
Product colour |
Black |
Mounting |
Vertical |
Rack capacity |
0U |
Type |
Single-phase |
PDU types |
Monitored |
Ports & interfaces |
USB ports quantity |
1 |
Ethernet LAN (RJ-45) ports |
1 |
Serial ports quantity |
1 |
AC outlet types |
C13 coupler, C19 coupler |
Power plug |
IEC 60309 |
AC outlets quantity |
42 AC outlet(s) |
Features |
Cable length |
3.05 m |
Reset button |
Yes |
Management features |
Supported network protocols |
DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Monitoring |
Current, Power, Voltage |
Power |
Power protection features |
Over current |
Maximum power |
7300 W |
Load capacity |
230 VA |
Nominal output voltage |
32 V |
Maximum current |
32 A |
AC input frequency |
50/60 Hz |
Nominal input voltage |
200-240 V |
Certificates |
Certification |
CE Marked UKCA Marked Complies with IEC 62368-1 (DOC Available) Complies with EN 55032 and EN 55035 RoHS Compliant Cم Mark |
Operational conditions |
Operating temperature (T-T) |
10 – 45 °C |
Weight & dimensions |
Weight |
7.26 kg |
Height |
1778 mm |
Depth |
51 mm |
Width |
51 mm |
General |
Product family |
Geist |
