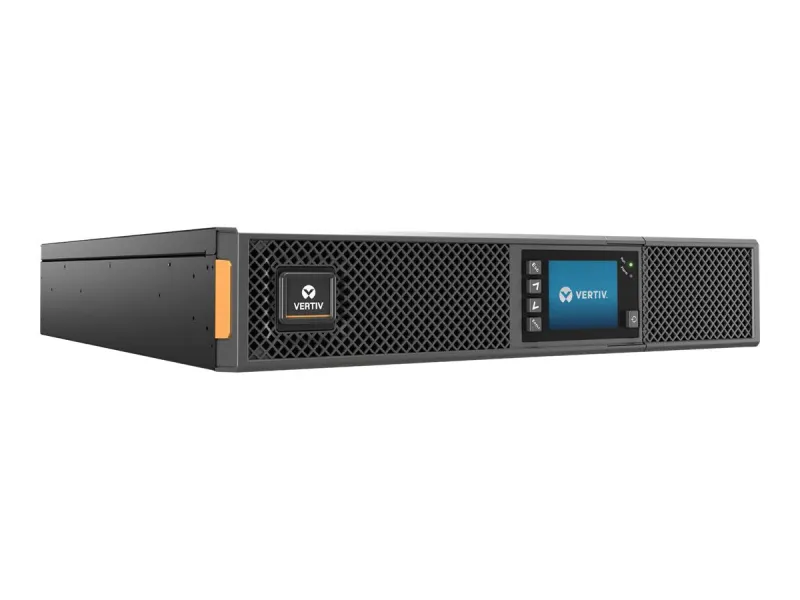

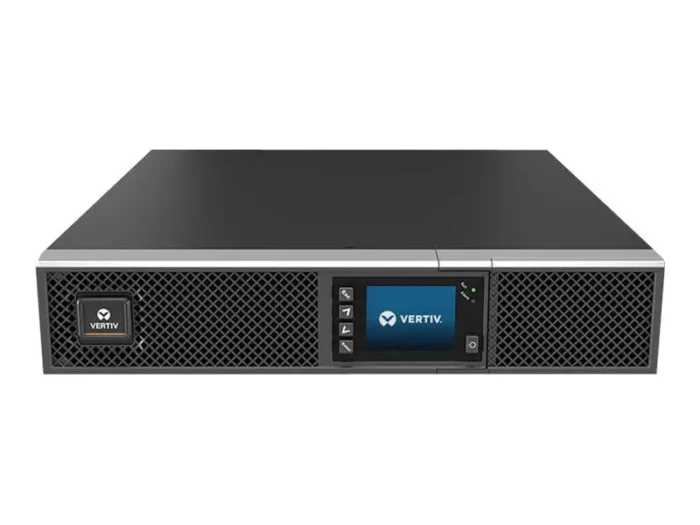

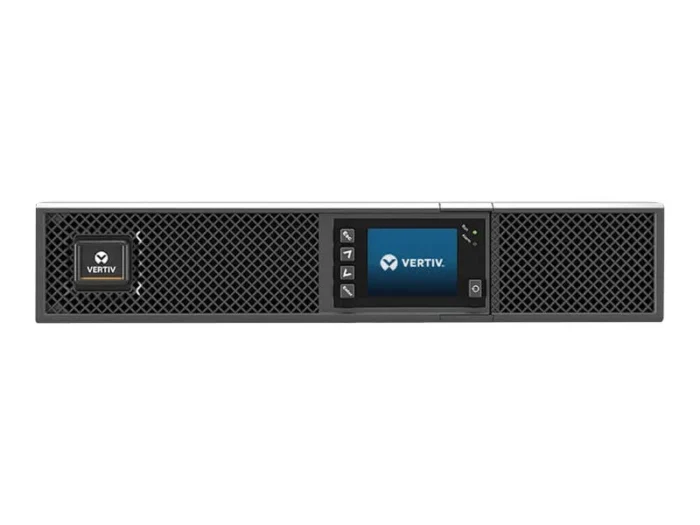

Vertiv Liebert GXT5 Double Online Conversion UPS – 1500VA/1500W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-1500IRT2UXLN
- It offers reliable, easy-to-manage power protection and battery backup with 1500VA(1500W) capacity.
- It has UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
- It includes a built-in Vertiv RDU101 network communications card for remote management.
- It comes with a Vertiv 3-year warranty plus a 2-year extension for a total of 5 years in coverage.
- It is ENERGY STAR® 2.0 certified with higher efficiency, for energy savings and improved reliability.
The Vertiv Liebert GXT5 UPS 1500VA/1500W, is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. This unit has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a three-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.
| Features | |
|---|---|
| Noise level | 46 dB |
| ECO mode | Yes |
| Power factor | 0.99 |
| Efficiency | 93% |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Input frequency | 40 – 70 Hz |
| Input operation voltage (max) | 280 V |
| Input operation voltage (min) | 115 V |
| Waveform | Pure sine |
| Output power | 1500 W |
| Output power capacity | 1.5 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Modem (RJ-11) ports | 1 |
| Serial interface type | RJ-45 |
| Serial interface | Yes |
| USB port | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Battery recharge time | 4 h |
| Typical backup time at half load | 16.3 min |
| Typical backup time at full load | 5.6 min |
| Number of batteries included | 3 pc(s) |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Display type | LCD |
| Rack capacity | 2U |
| Product colour | Black |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Operating altitude | 0 – 3000 m |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| General | |
|---|---|
| Product family | Liebert |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
| Cables included | USB cable |
| Batteries included | Yes |
| Certificates | |
|---|---|
| Certification | UL-1778 (Fifth Edition), C-UL listed, IEC 62040-1: 2008 (First Edition) + Am 1:2013, EN 62040-1:2008+A1:2013,CISPR22 Class A (RFI)/ FCC Part 15 (Class A),ISTA Procedure 1A, ANSI C62.41 Category B |
| Compliance certificates | REACH, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 21.4 kg |
| Height | 85 mm |
| Depth | 470 mm |
| Width | 430 mm |
| Packaging data | |
|---|---|
| Package weight | 25.9 kg |
| Package height | 262 mm |
| Package depth | 570 mm |
| Package width | 617 mm |
