Vertiv PowerIT rack PDU Interchangeable Monitoring Device Upgrade | Local & Remote Monitoring | Redundant Power | Touchscreen | Hot Swappable
- View richer data with a pixel-addressable color touchscreen for clear power monitoring
- Enhance security with a secure boot and hardware trust anchor for reliable protection
- Offers redundant power, RGB status LED, auto display orientation, and tool-less insertion and removal
- Every unit is 100% tested and compliant with RoHS, China RoHS, UL, and CE standards

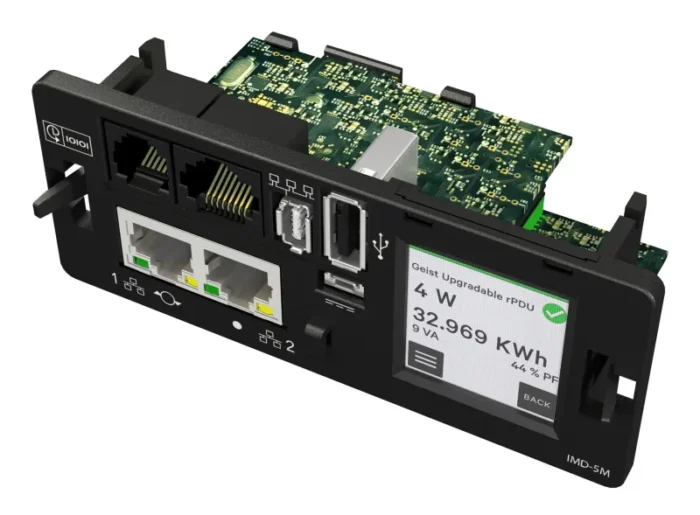

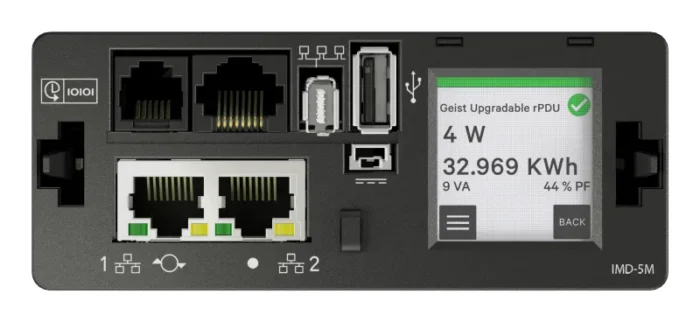

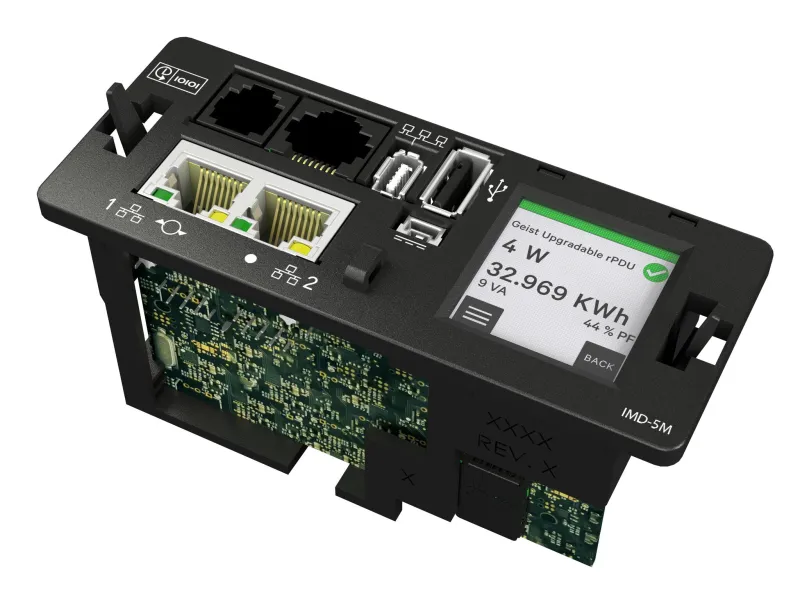

The Vertiv PowerIT IMD-5M rPDU takes power monitoring to the next level with its innovative, hot-swappable Interchangeable Monitoring Device (IMD). Featuring a vibrant LCD touchscreen, it delivers real-time insights into critical metrics such as power, amperage, and voltage for both local and remote monitoring. Built for enhanced connectivity, the IMD includes ports for serial communication and environmental monitoring, enabling comprehensive management of your power distribution system. Dual Gigabit Ethernet ports streamline PDU management with fault-tolerant daisy chaining or IP aggregation, providing a reliable, scalable solution for modern IT environments. Each unit is tested for performance and durability, meeting UL and CE certifications to ensure global compliance.
| Features | |
|---|---|
| Product type | Interchangeable monitoring device |
| Display | |
|---|---|
| Display technology | LCD |
| Built-in display | Yes |
| Ports & interfaces | |
|---|---|
| USB 2.0 Type-A ports quantity | 1 |
| Ethernet LAN | Yes |
| Power | |
|---|---|
| Power supply input voltage | 24 V |
| Weight & dimensions | |
|---|---|
| Weight | 453.59 g |
| Height | 101.6 mm |
| Depth | 50.8 mm |
| Width | 31.8 mm |
| General | |
|---|---|
| Product family | PowerIT |
| Technical details | |
|---|---|
| Compliance certificates | CE, China RoHS, RoHS, UL |
