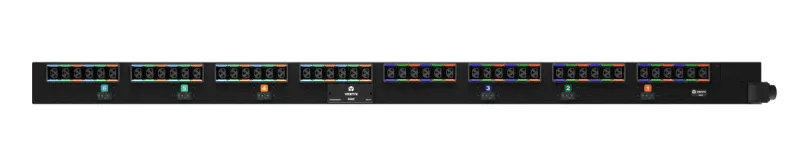

Vertiv UI10029 power distribution unit (PDU) 48 AC outlet(s) 0U Black
- The Combination Outlet C13 / C19 is a 2-in-1 receptacle functioning as both an IEC C13 and C19. Simplify the rack PDU buying process and accommodate ever-changing rack power requirements.
- High retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord.
- Simplify cable management with the Combination Outlet C13 / C19 by simply connecting equipment to the closest available receptacle.
- The Combination Outlet C13 / C19 meets global electrical compliance requirements and is UL Certified and CE Marked.
- The universal power input can mate to any geographically specific FSC, Facility Side Cable, and is designed to operate with variable power input configurations (defined by the connected FSC).
- The Pivoting Connector adjusts from 0 to 90 degrees to assist with power cable routing.
- High Temperature Grade 60°C for high temperature environments.
- Standard three-year warranty, upgraded to a five-year warranty with product registration.
Basic Upgradeable rPDUs provide reliable power distribution to critical IT equipment within a rack or cabinet.
| Design |
| Product colour |
Black |
| Mounting |
Vertical |
| Rack capacity |
0U |
| PDU types |
Basic |
| Ports & interfaces |
| AC outlets quantity |
48 AC outlet(s) |
| Power |
| Load capacity |
22000 VA |
| Maximum current |
32 A |
| AC input frequency |
50 Hz |
| Nominal input voltage |
230/400 V |
| Certificates |
| Certification |
– CE Marked- RoHS Compliant |
| Compliance certificates |
RoHS |
| Operational conditions |
| Operating altitude |
0 – 3050 m |
| Operating relative humidity (H-H) |
5 – 95% |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating temperature (T-T) |
0 – 60 °C |
| Weight & dimensions |
| Weight |
11.3 kg |
| Height |
57 mm |
| Depth |
97 mm |
| Width |
1683 mm |
