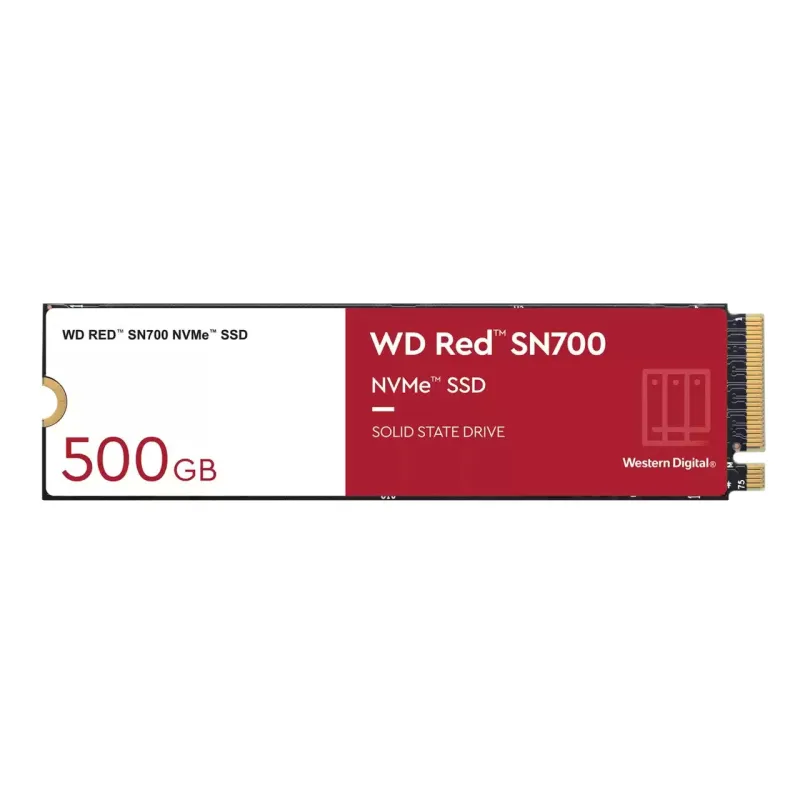

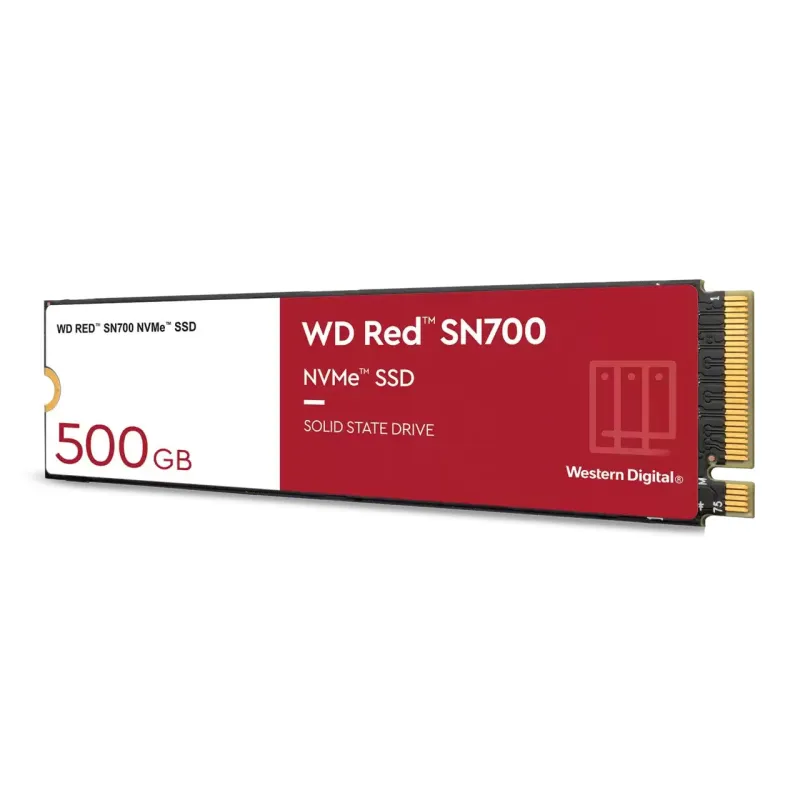

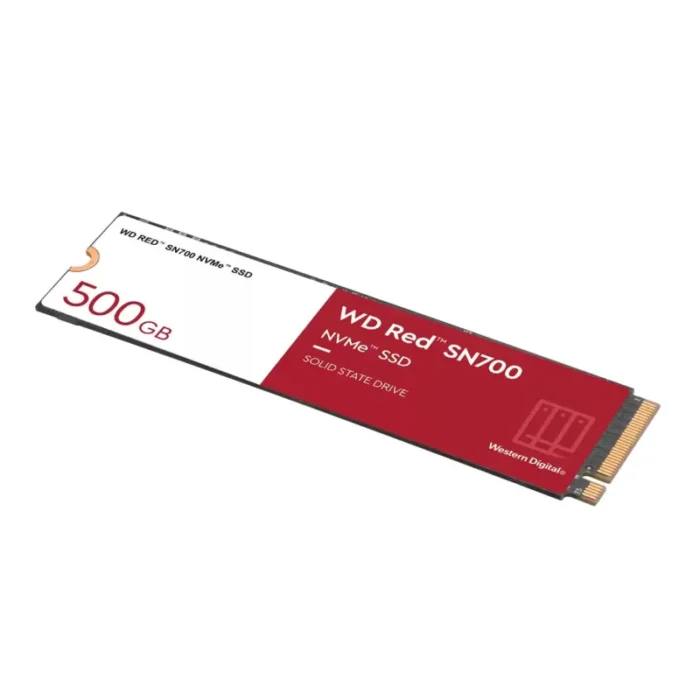

Western Digital WD Red SN700 500 GB M.2 PCI Express 3.0 NVMe
- 500 GB M.2 PCI Express 3.0
- Read speed: 3430 MB/s 420000 IOPS
- Write speed: 2600 MB/s 380000 IOPS
- NVMe
- Component for: NAS
Accelerate Your NAS
Tackle extreme workloads in high-intensity NAS environments with the fast-caching WD Red SN700 NVMe™ SSD. The drive’s robust system responsiveness and exceptional I/O performance are perfect for multi-user, multitasking applications, letting you tame your SMB’s toughest projects from virtualization to collaborative editing to intensive database storage with efficient caching —all while helping to lower your TCO.
Accelerate Your NAS
The fast-caching power of the WD Red SN700 NVMe™ SSD delivers robust system responsiveness and exceptional I/O performance compared to our SATA SSDs.
Built to Last
Tackle 24/7 NAS workload environments with reliability and endurance of up to 5100 TBW (4TB model), backed by a 5-year limited warranty.
Step Up to NVMe™
Tame your SMB’s toughest projects—from virtualization to collaborative editing to intensive database storage with efficient caching —with storage designed to outperform while helping to lower your TCO.
Perfect for SMBs
Even in smaller operations, multiple people working at the same time can tax a NAS device. NVMe caching easily handles random workloads in multi-user, multitasking applications to let small-to-medium businesses do more.
Scale Up to Keep Up
Keep ahead of the data explosion with huge capacities up to 4TB.
Optimize Your Workflow
Purpose-built and tested to be compatible with many of today’s most popular NAS systems for maximum flexibility to optimize your workflow.
| Features | |
|---|---|
| TBW rating | 1000 |
| Mean time between failures (MTBF) | 1750000 h |
| PCI Express interface data lanes | x4 |
| Random write (4KB) | 380000 IOPS |
| Random read (4KB) | 420000 IOPS |
| Write speed | 2600 MB/s |
| Read speed | 3430 MB/s |
| Data transfer rate | 8 Gbit/s |
| Hardware encryption | No |
| Component for | NAS |
| NVMe | Yes |
| Interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| SSD capacity | 500 GB |
| Power | |
|---|---|
| Power consumption (sleep) | 0.0035 W |
| Current | 2.8 A |
| Weight & dimensions | |
|---|---|
| Weight | 7.5 g |
| Height | 2.38 mm |
| Depth | 80 mm |
| Width | 22 mm |
| Operational conditions | |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -55 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
