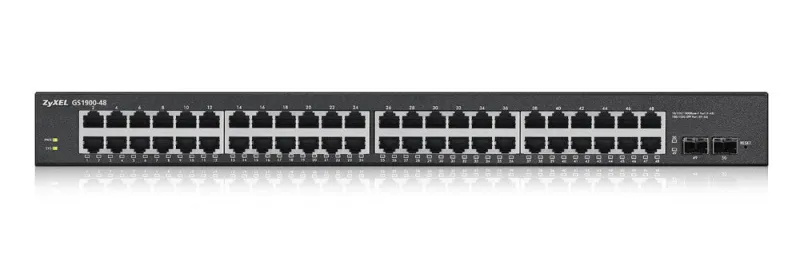

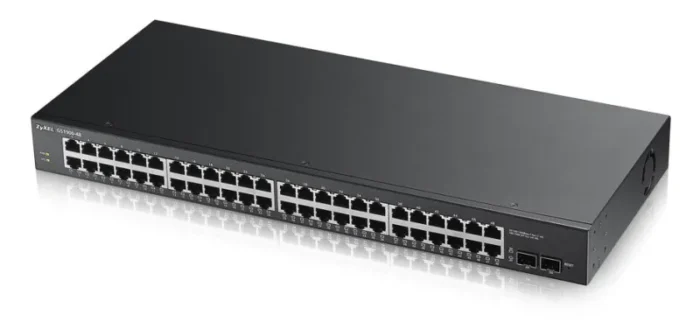

Zyxel GS1900-48-GB0102F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
- Managed L2
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- MAC address table: 8000 entries Switching capacity: 100 Gbit/s
- Rack mounting
Simple, Fast and Smart Managed Switches for Small Business Connectivity
The ZyXEL GS1900 Series of 8/16/24/48-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network more fexibility and connectivity. The 1900 Series consists of eight (8) models—the GS1900-8, GS1900-8HP, GS1900-16, GS1900-24E, GS1900-24, GS1900-24HP, GS1900-48 and GS1900-48HP. Providing GbE switches with powersaving functions, fanless design and full IPv6 support ensure your network to be ready for future expansions. In addition, the PoE models GS1900-8HP/24HP/48HP Gigabit switch complies with the IEEE 802.3at Power over Ethernet (PoE) Plus standard. The complete GS1900 Series has been designed with useful features and advanced performances that empower your networks with speed and security as well as silent operation in your office environments.
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |

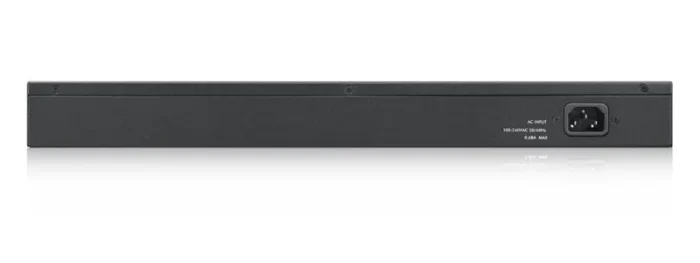

| Power connector |
AC-in jack |
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1af, IEEE 802.1D, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Throughput |
74 Mpps |
| Switching capacity |
100 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| Security algorithms |
SNMP, SNMPv2, SNMPv3 |
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Design |
| Product colour |
Black |
| Rack mounting |
Yes |
| Performance |
| Firmware upgradeable |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
126 BTU/h |
| Operating relative humidity (H-H) |
10 – 95% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Weight & dimensions |
| Weight |
29 kg |
| Height |
44 mm |
| Depth |
200 mm |
| Width |
440 mm |
| Packaging data |
| Package weight |
4.3 kg |
| Package height |
93 mm |
| Package depth |
292 mm |
| Package width |
509 mm |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
